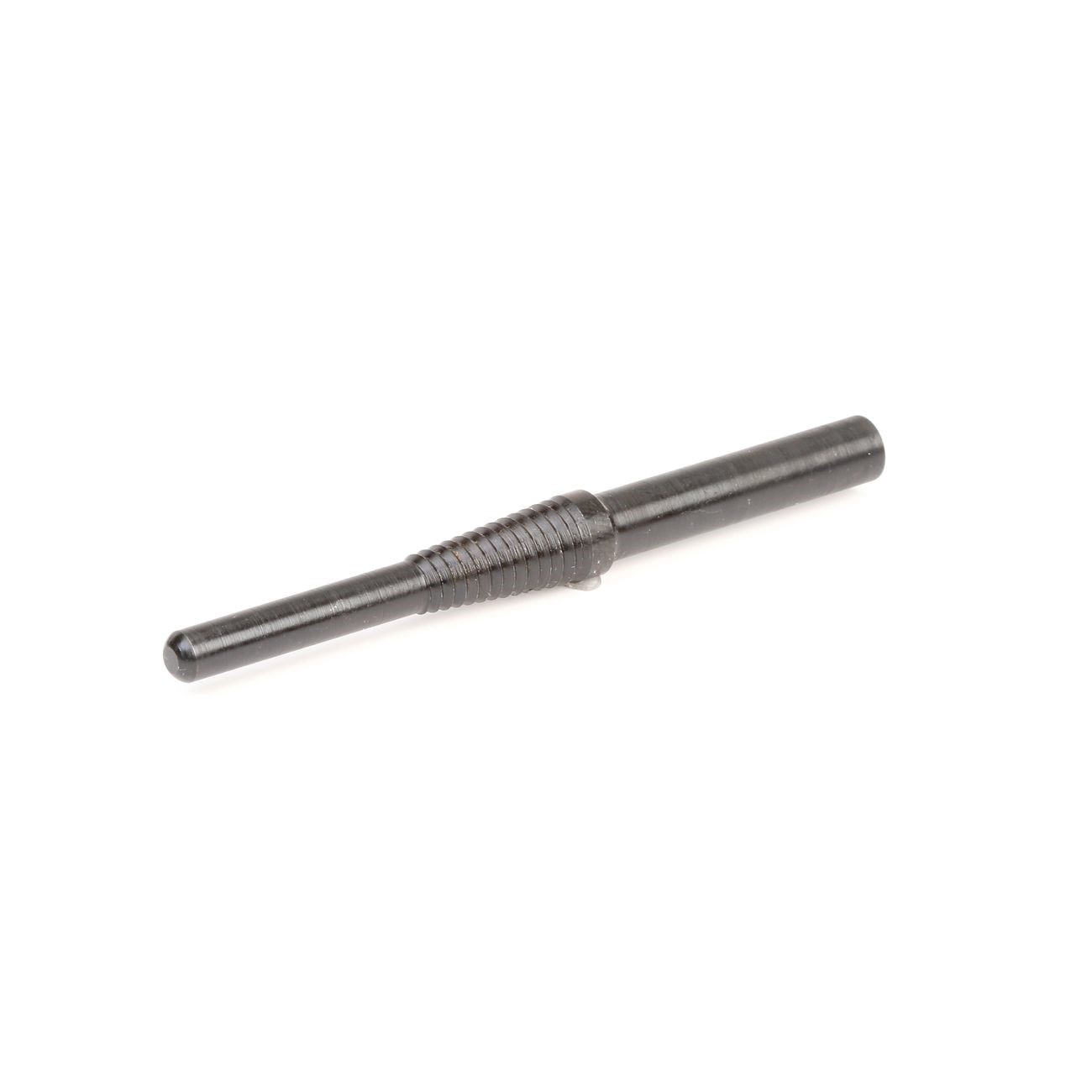

3M 7000148243 Cartridge Roll Mandrel 3/16x1x1/4 in

Product Description

The 3M 7000148243 is a screw-type cartridge roll mandrel designed to securely drive cartridge rolls during grinding, deburring, and surface finishing operations. The mandrel measures 3/16 inch pilot diameter by 1 inch pilot length by 1/4 inch shaft diameter, giving it a compact, precise fit for compatible abrasive cartridge rolls. It is used with rotary tools, die grinders, and similar power tools found in metal fabrication, maintenance, and finishing applications. Installation and use are straightforward for machinists, fabricators, and finishing technicians working with standard cartridge roll abrasives.

This mandrel is suited for use in metal fabrication shops, maintenance facilities, and production finishing environments where cartridge rolls are used to work inside diameters, contoured surfaces, or tight access areas. The screw-type drive mechanism holds the cartridge roll firmly under load, reducing slippage during aggressive material removal or blending passes. It is sold individually and is appropriate for both production and maintenance settings requiring consistent abrasive performance.

Key Features

• Screw-type design securely locks cartridge rolls in place during operation
• Pilot diameter: 3/16 inch; pilot length: 1 inch; shaft diameter: 1/4 inch
• 1/4 inch shaft fits standard die grinder and rotary tool collets
• Compact dimensions allow access to tight areas and contoured surfaces
• Lightweight at 0.06 pounds for reduced operator fatigue during extended use

Compatibility

Designed for use with cartridge rolls having a 3/16 inch bore, compatible with standard 1/4 inch collet die grinders and rotary power tools used in grinding and finishing applications.

Installation Notes

Installation is performed by fabricators or finishing technicians using a standard 1/4 inch collet die grinder or rotary tool. Power down and disconnect the tool from its air or electrical supply before threading the cartridge roll onto the mandrel or inserting the mandrel into the collet. Ensure the cartridge roll is fully seated and the screw mechanism is tightened securely before resuming operation. Follow applicable workplace safety guidelines and tool manufacturer instructions for maximum RPM ratings.

Technical Specifications

• Pilot Diameter: 3/16 inch
• Pilot Length: 1 inch
• Shaft Diameter: 1/4 inch
• Weight: 0.06 pounds
• UPC: 00051144451173
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000148243
