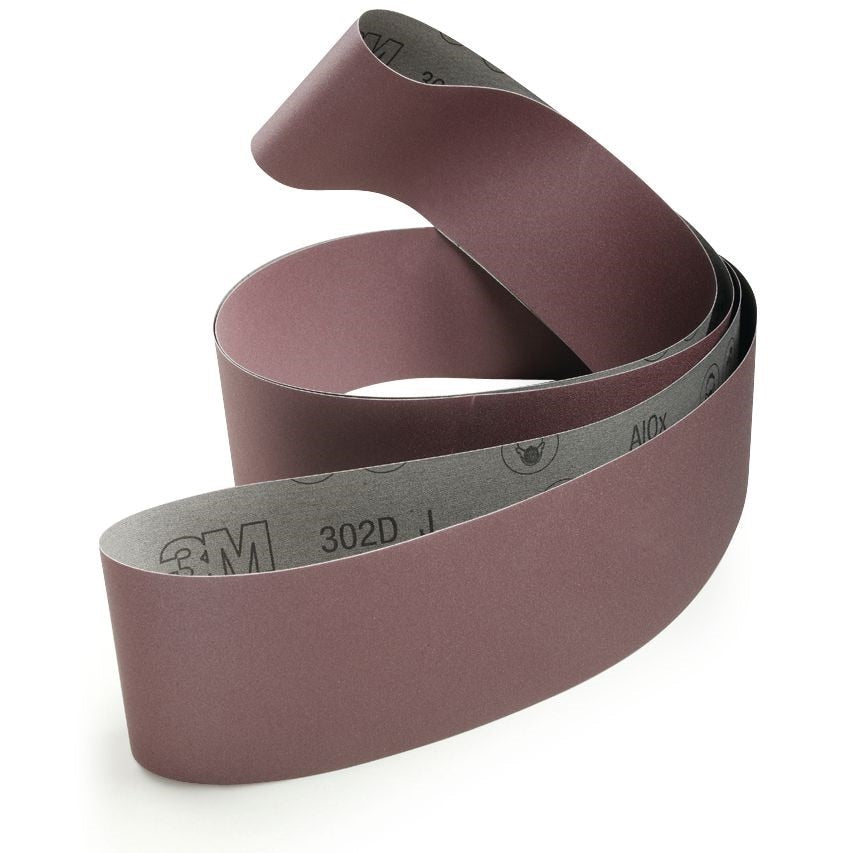

3M 7000148165 Abrasive Belt 132x3 Inch P120 Ao Cloth

Product Description

The 3M 7000148165 is an aluminum oxide coated abrasive belt built for metalworking on backstand grinders, file belt tools, and benchtop motors. Measuring 132 inches long by 3 inches wide with a P120 grit rating, it uses an open coat construction on a flexible J-weight cloth backing. That combination allows the belt to conform to contours and complex part geometries while evacuating sanding dust efficiently for a faster cut and extended abrasive life. A resin bond secures the abrasive grain for durability through dry grinding and finishing cycles. Licensed metalworking shops and fabrication trades are the primary users.

This belt is suited for light grinding, finishing, deburring, and grain setting on carbon steel and stainless steel. It also performs well on soft metals including aluminum, brass, bronze, and copper. The open coat design resists loading, making it a reliable choice for blending and finishing contoured surfaces where dust evacuation matters. It is designed for dry metalworking applications only and fits standard backstand grinder, file belt, and benchtop motor configurations that accept a 132 inch by 3 inch belt.

Key Features

• Aluminum oxide abrasive delivers fast cutting action across a wide range of metals
• Flexible J-weight cloth backing conforms to contours and complex part geometry
• Open coat construction evacuates sanding dust for more aggressive cut and longer belt life
• Resin bond maximizes abrasive grain retention and overall belt durability
• Rated P120 grit for finishing, deburring, and grain-setting passes
• Designed for dry metalworking use on backstand grinders, file belt tools, and benchtop motors

Compatibility

Designed for use on backstand grinders, file belt tools, and benchtop motors accepting a 132 inch by 3 inch abrasive belt in dry metalworking applications.

Installation Notes

Belt installation should be performed by qualified personnel following the equipment manufacturer's guidelines and applicable ANSI abrasive product safety standards. Power down and lock out the grinder or motor before mounting or removing the belt. Verify belt tracking and tension before resuming operation, and always confirm the machine's rated speed does not exceed the belt's maximum safe operating speed.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 3 inches
• Grit: P120
• Abrasive Material: Aluminum Oxide (AO)
• Backing Type: J-Weight Cloth
• Coat Type: Open Coat
• Bond Type: Resin
• Application: Dry Metalworking
• Weight: 0.4 pounds
• UPC: 00051141307176

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000148165
