3M 7000138431 Heat Shrink Cable Repair Sleeve 47.2in

Product Description

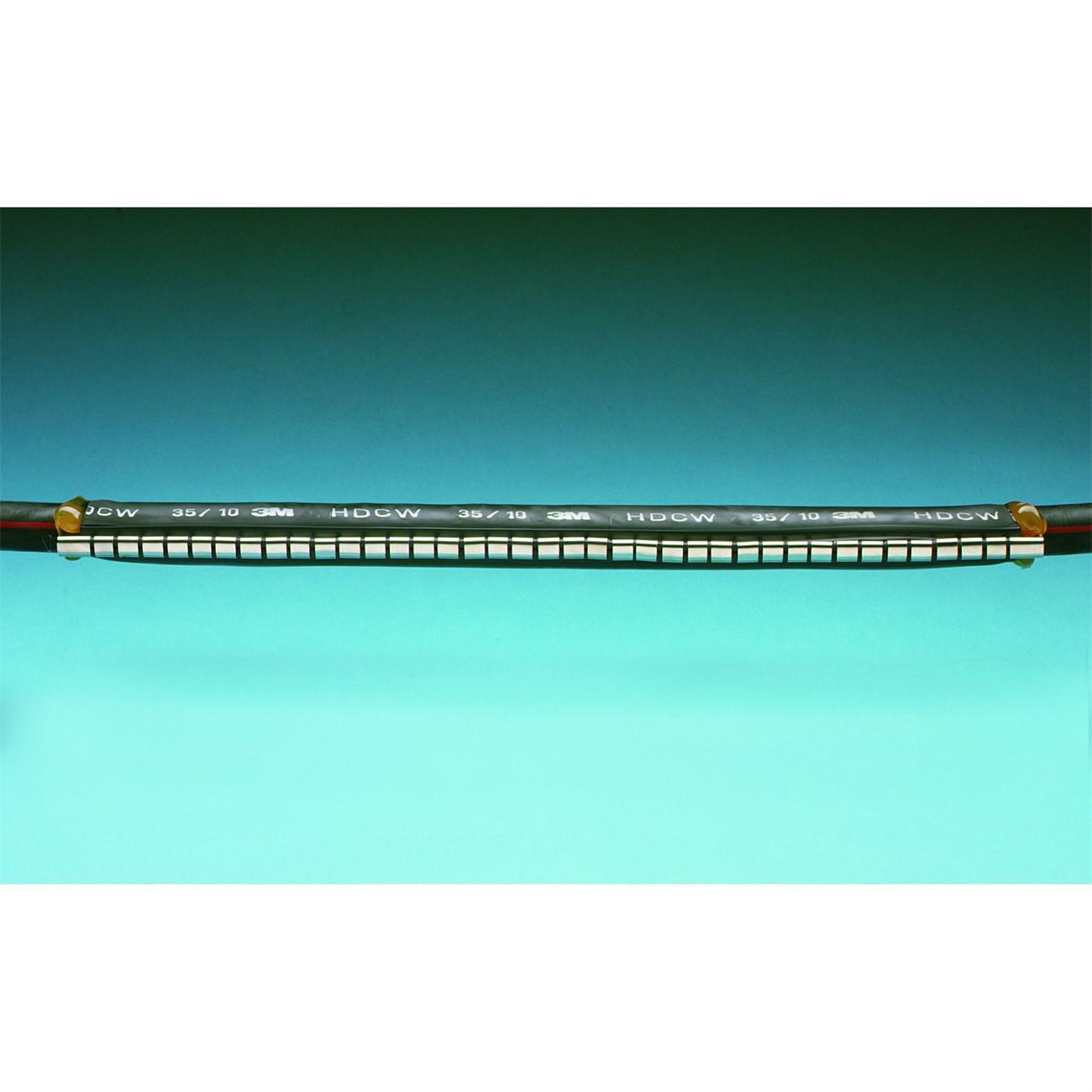

The 3M 7000138431 is a wraparound heat shrink cable repair sleeve engineered to restore and protect damaged cable sheaths in demanding field conditions. The sleeve features an inner wall coated with hot melt adhesive that activates under heat, forming a watertight, secure bond around the cable. A corrosion-resistant metal clip locks the sleeve closed before shrinking, keeping it properly positioned during installation. At 47.2 inches in length, it covers substantial repair spans and provides reliable mechanical protection against abrasion, impact, and exposure to aggressive environments.

This sleeve is suited for electrical and utility cable repair work in residential, commercial, and industrial applications. It is designed for use on damaged cable sheaths, at cable joints requiring additional sealing, and as supplemental corrosion protection on undamaged cables. The wraparound design eliminates the need to thread the sleeve over cable ends, making it practical for mid-run repairs without disconnecting cable terminations.

Key Features

• Wraparound construction allows installation without access to cable ends
• Hot melt adhesive inner wall forms a watertight seal when heat is applied
• Corrosion-resistant metal closure clip secures sleeve before and during shrinking
• 47.2 inches of coverage for extended cable repair spans
• Suitable for cable joints and supplemental corrosion protection on intact cables
• Rated for use in mechanically aggressive and chemically harsh environments

Compatibility

Designed as an OEM-style replacement and repair sleeve for cable sheath restoration applications across a range of cable diameters consistent with the HDCW-80/25-1200 size designation.

Installation Notes

Installation is typically performed by licensed electricians or qualified utility technicians. De-energize and lock out the affected cable circuit before beginning any repair work in accordance with NFPA 70E safe work practices. Clean and dry the cable surface before positioning the sleeve, then close the metal clip and apply uniform heat with a propane or butane torch, working from the center outward to avoid air entrapment. Do not overheat any single area, as uneven shrinking can compromise the adhesive seal.

Technical Specifications

• Length: 47.2 inches
• Weight: 2.3 pounds
• Inner Wall: Hot melt adhesive coated
• Closure Type: Corrosion-resistant metal clip
• Unit of Measure: Each
• Minimum Order Quantity: 5
• UPC: 04001895591006

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000138431
