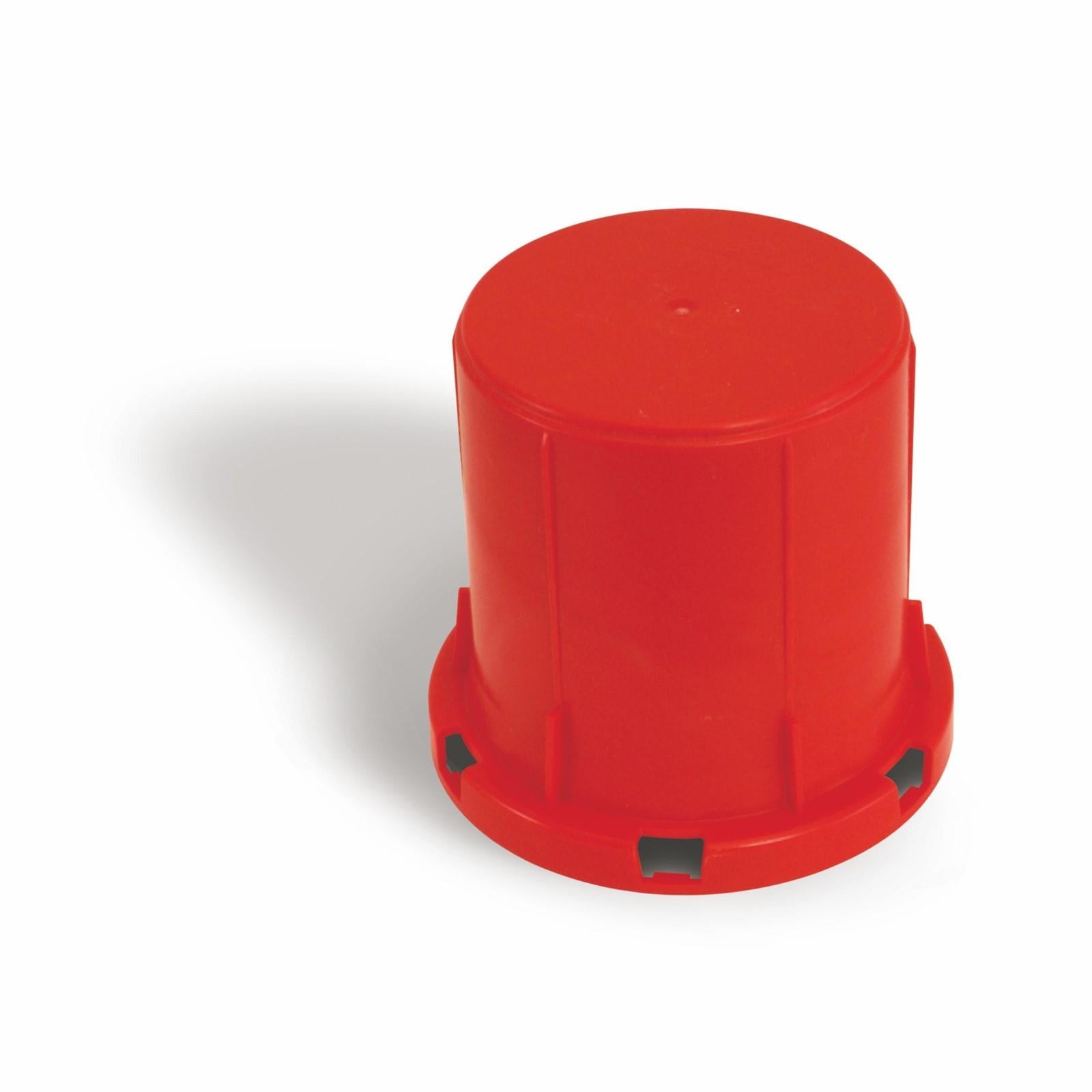

3M 7000133836 Fire Barrier Height Adapter 2 Inches

Product Description

The 3M 7000133836 is a height adapter designed for use with the 2-inch 3M Fire Barrier Cast-In Device. It extends the allowable concrete pour depth by 4 inches, supporting installations requiring up to 12 inches of pour depth. The adapter snaps onto the cast-in device, which is then secured to metal deck formwork before concrete is poured. It is installed by fire-stop or general contractors working on penetration firestop systems in concrete floor and ceiling assemblies.

This adapter is used in commercial and multi-family construction where fire-rated concrete floor assemblies require greater slab thickness than the base cast-in device accommodates. It fits both metallic and non-metallic versions of the 2-inch 3M Fire Barrier Cast-In Device, making it suitable for projects with mixed pipe or conduit material specifications. Typical applications include high-rise, healthcare, and other occupancies with code-mandated firestop assemblies at penetration points.

Key Features

• Increases allowable pour depth by 4 inches, supporting slabs up to 12 inches thick
• Compatible with both metallic and non-metallic 2-inch 3M Fire Barrier Cast-In Device models
• Snap-on attachment simplifies positioning before concrete pour
• Designed for metal deck form applications
• Sold individually; minimum order quantity is 12 units per order

Compatibility

Designed for use with the 2-inch 3M Fire Barrier Cast-In Device, accommodating both metallic and non-metallic models. Refer to the applicable system details and installation guidelines for approved assembly configurations.

Installation Notes

Installation is typically performed by qualified firestop contractors or general contractors familiar with through-penetration firestop systems. Power down or de-energize any adjacent electrical systems before working in the area. Snap the height adapter onto the cast-in device and secure the assembly to the metal deck according to the listed system details before the concrete pour. Installations must comply with applicable building codes and the requirements of the listed firestop system.

Technical Specifications

• Height Extension: 4 inches
• Maximum Pour Depth Supported: 12 inches
• Compatible Device Size: 2 inches
• Weight: 0.34 pounds
• UPC: 00051115165481

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000133836
