3M 7000133685 EPS-300 Heat Shrink Tubing 600V 6 in Length Pack

Product Description

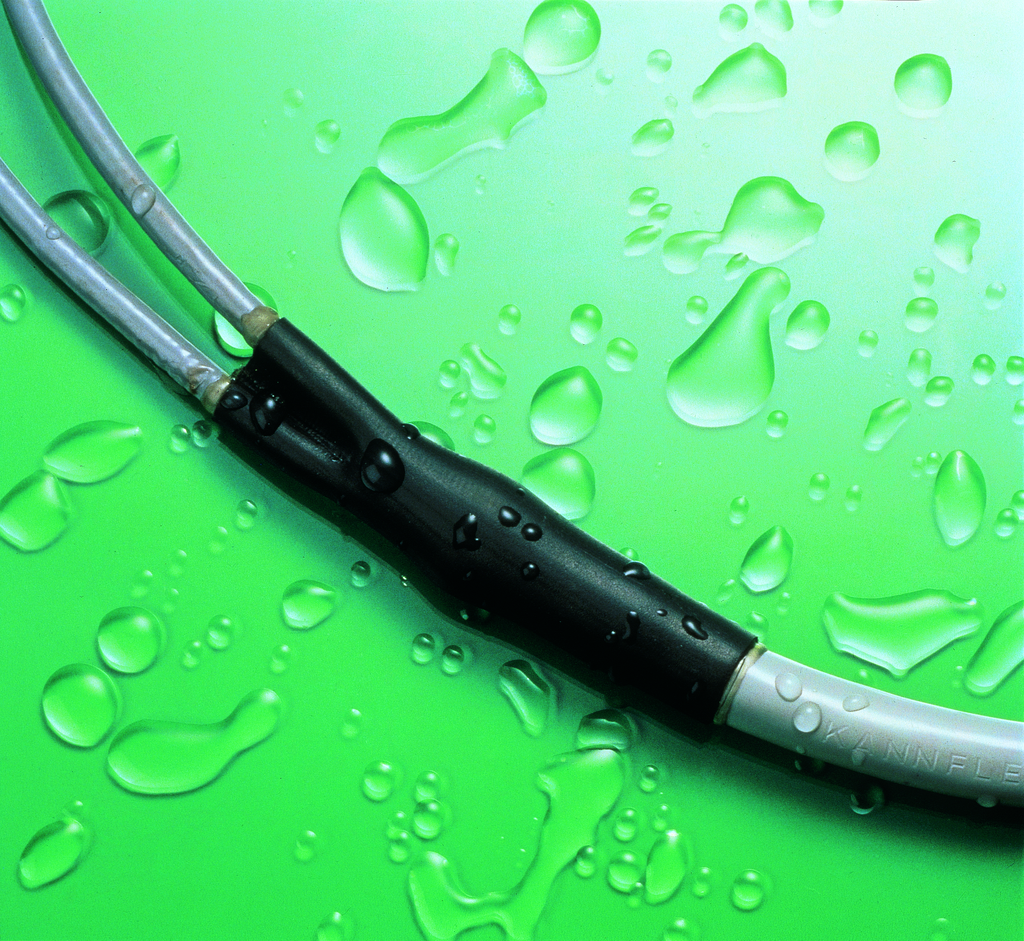

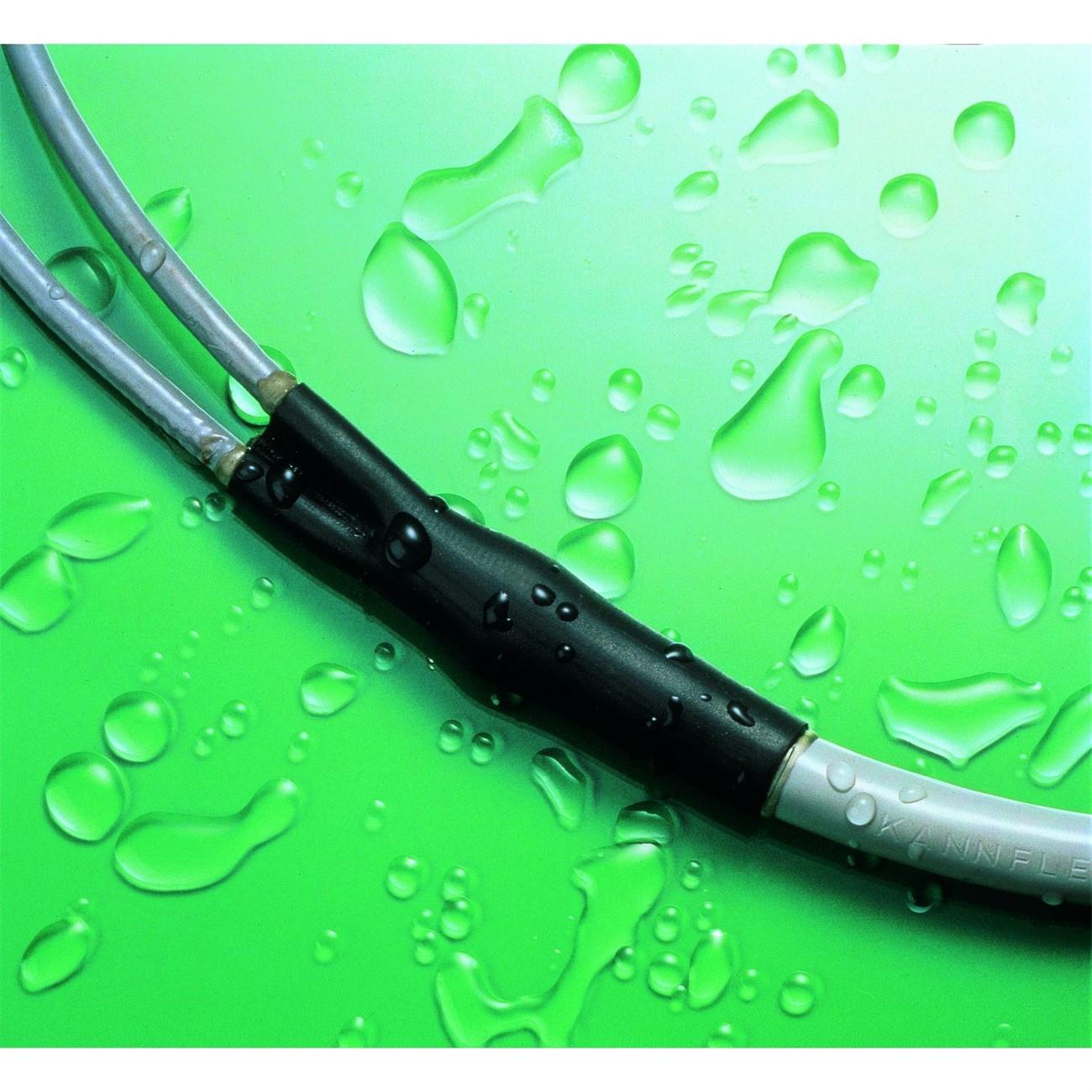

3M EPS-300 Heat Shrink Tubing is a dual wall tubing designed for insulation and protection. This product is rated for six hundred volts and is available in six-inch lengths with ten pieces per pack. The tubing features an integral adhesive lining that provides superior sealing against moisture, making it suitable for a variety of applications including automotive and marine uses.

• Features a three to one shrink ratio for effective use.
• Made from flexible polyolefin for durability.
• Resistant to abrasion, ensuring long-term reliability.

Product Highlights

This tubing offers a practical solution for protecting wire splices, bundles, and components. It is UL listed and CSA certified, providing confidence in its quality and safety standards.

Product Information

Standard Information

• Brand: 3M
• MPN: 7000133685

Technical Specifications

• Series: EPS-300
• Shrink Ratio: 3 to 1
• Shrink Temperature: 176 degrees F
• Temperature Rating: -67 to 230 degrees F
• Type: Adhesive Lined Flexible
• Voltage Rating: 600 VAC
• Wall Type: Dual
• Inner Diameter Expanded: 3/4 in
• Inner Diameter Recovered: 1/4 in
• Wall Thickness Recovered: 0.085 in
• Length: 6 in
• Material: Polyolefin
• Color: Black
