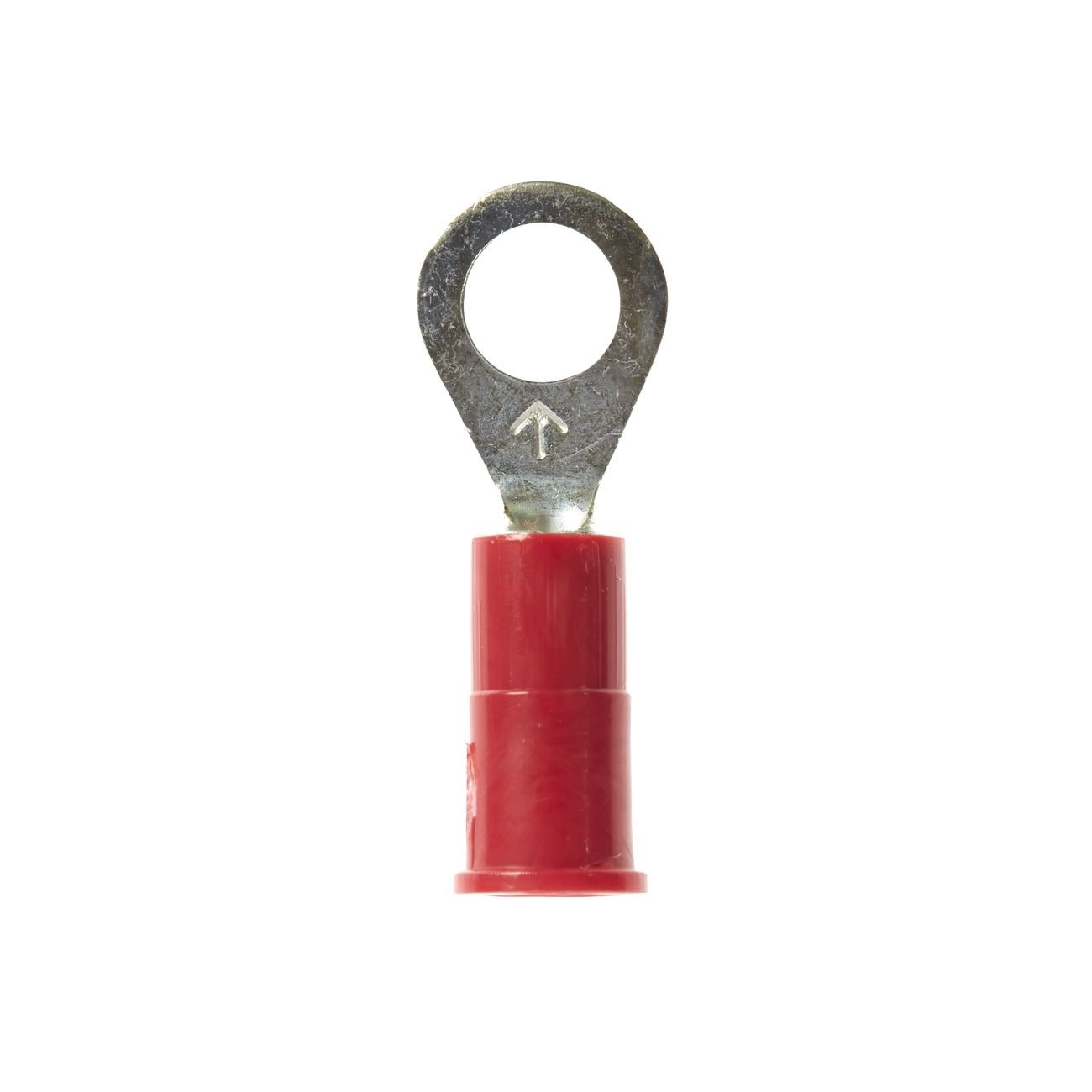

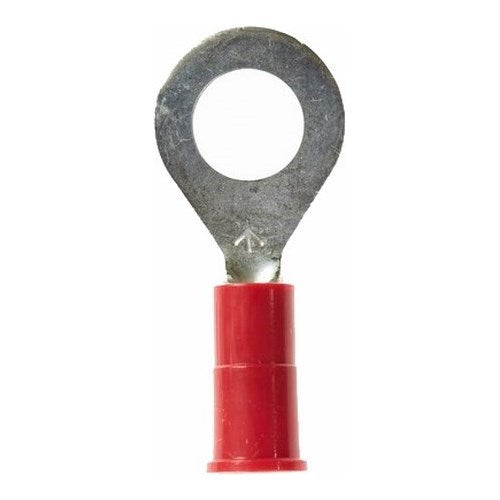

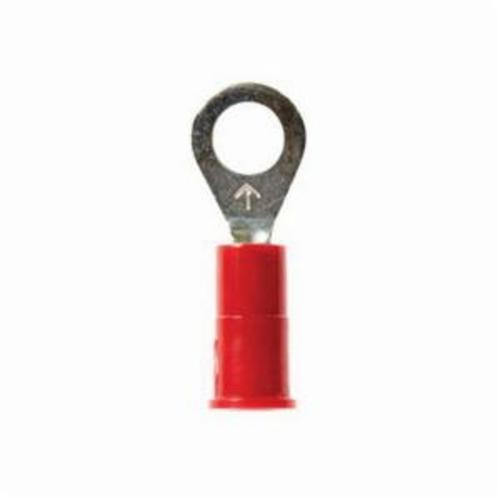

3M 7000133681 Highland Vinyl Insulated Ring Terminal RV18-14Q, AWG 22-18, 25/bag

Product Description

The 3M Highland Vinyl Insulated Ring Terminal, MPN 7000133681, is designed for reliable electrical connections. This terminal works with wire sizes ranging from 22 to 18 AWG and features a robust butted seam barrel. Its design ensures the safety and security of electrical connections in various applications.

• Compatible with wire sizes AWG 22-18
• Constructed from electrolytic copper for enhanced conductivity
• Temperature rated from -40 to 221 degrees F

Product Highlights

This product ensures a strong and secure connection that cannot be removed without a screw. Compliance with UL and CSA standards confirms its reliability in electrical installations.

Product Information

Standard Information

• Brand: 3M
• MPN: 7000133681

Technical Specifications

• Conductor Size: 22 to 18 AWG
• Stud Size: 1/4 inches
• Barrel Type: Butted
• Barrel Size: 0.135 inches ID x 0.25 inches L
• Temperature Rating: -40 to 221 degrees F
• Voltage Rating: 1000 VAC
• Dimensions: 0.47 inches W x 0.03 inches THK
