3M 7000133680 Highland Vinyl Insulated Ring Terminal RV18-10Q, AWG 22-18, 25/bag

Product Description

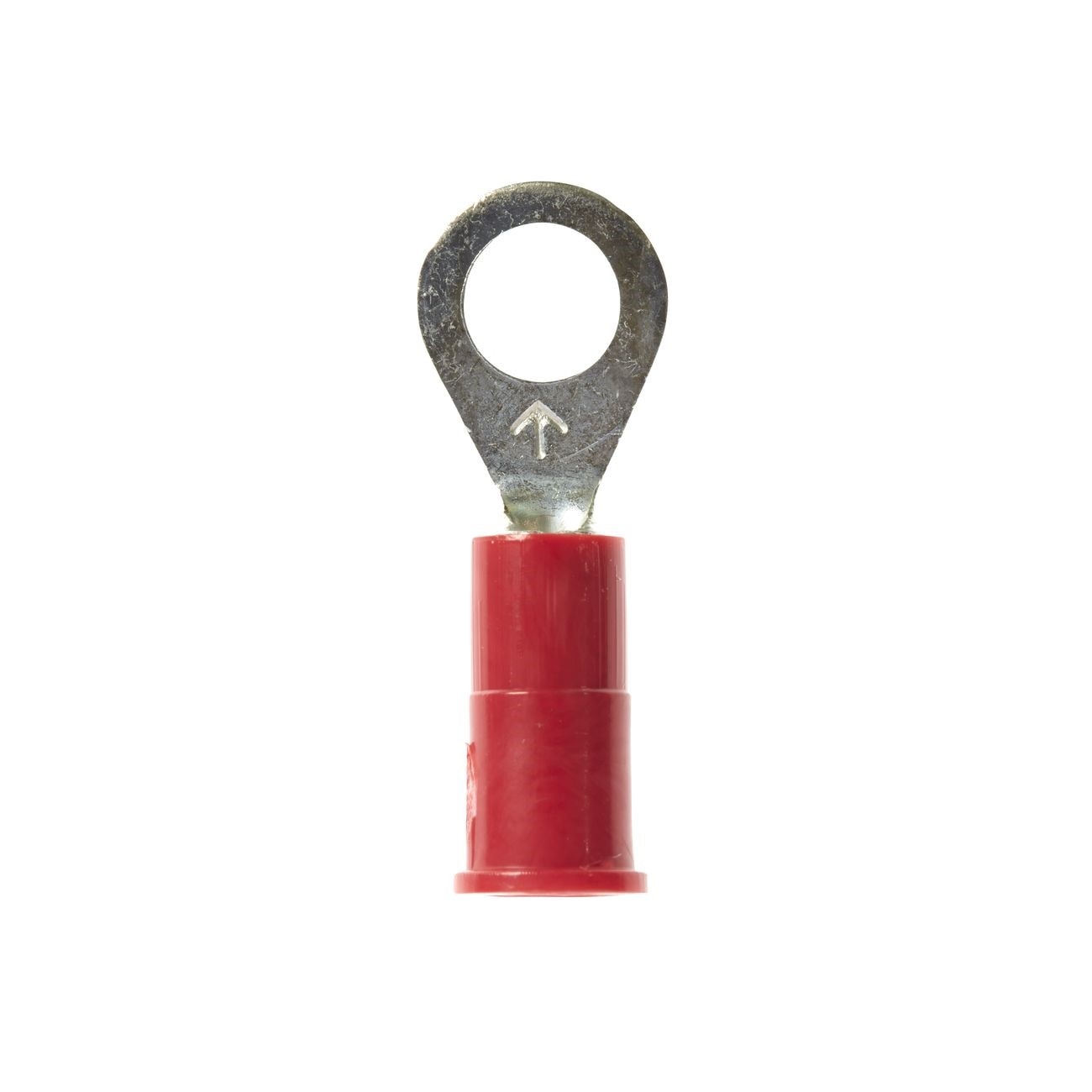

3M Highland Vinyl Insulated Ring Terminal RV18-10Q, MPN 7000133680 is designed for secure electrical connections. This terminal accommodates wire sizes from AWG 22 to AWG 18 and fits a stud size of 10. It comes packaged in bags containing twenty-five terminals each. The standard ring tongue design ensures reliable connectivity and cannot be disconnected without removing the mounting screw.

• Vinyl insulated butted-seam construction for stable performance.
• Funnel-shaped PVC sleeve for easier wire insertion.
• Electrolytic copper for efficient conductivity with a tin plating for corrosion resistance.

Product Highlights

This terminal is suitable for various applications including building wire installation and connecting electrical fixtures.

Product Information

Standard Information

• Brand: 3M
• Country of Origin: US

Technical Specifications

• Material: Plastic
• Max Operating Temperature: 105 degrees C
• Conductor Size: 22-18 AWG
• Terminal Size: 10
• Package Quantity: 250 EACH
• Width: 0.31 in
