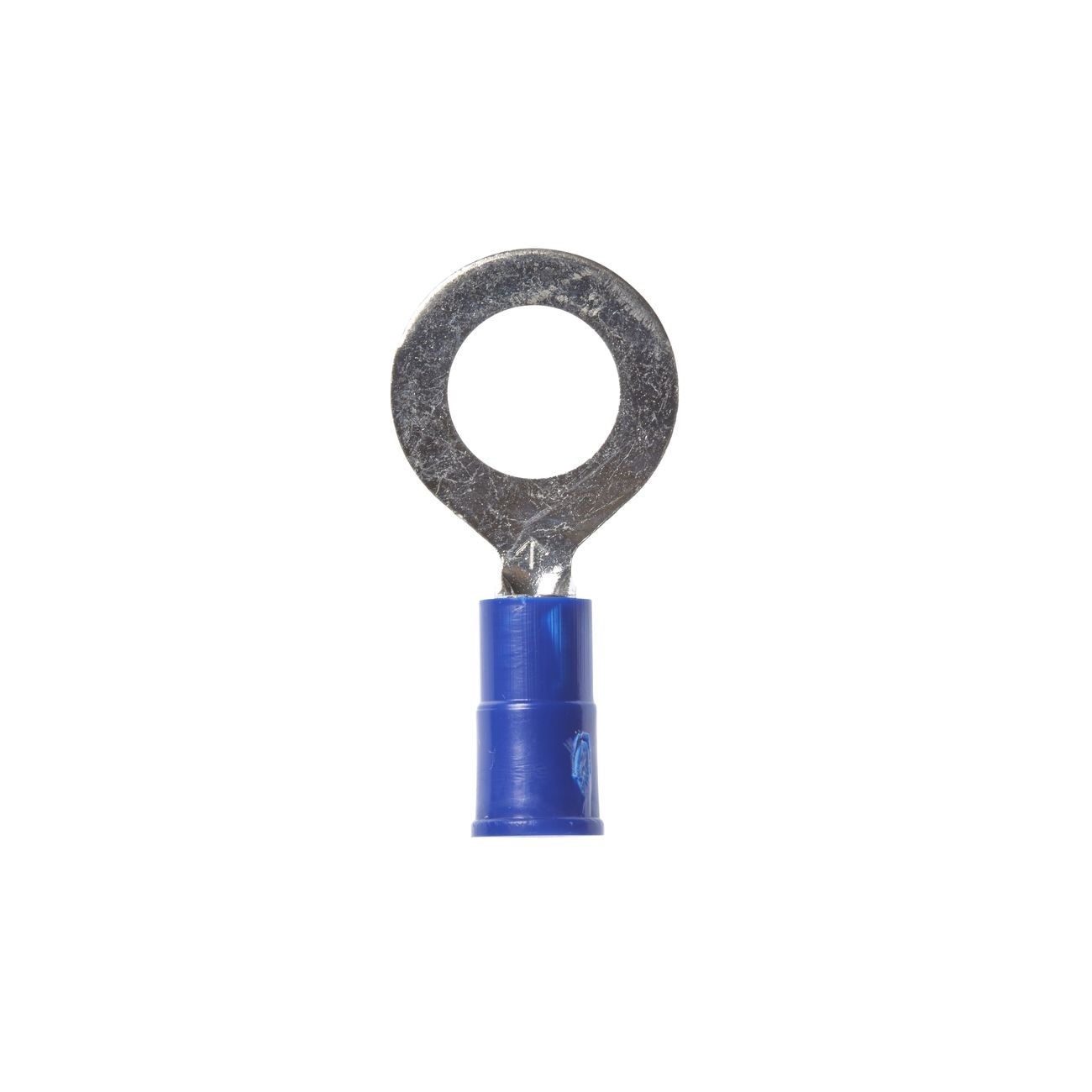

3M 7000133678 Vinyl Ring Terminal Awg 16-14 Stud 6

Product Description

The 3M 7000133678 is a vinyl insulated ring terminal designed for secure, reliable wire terminations in electrical and control wiring applications. Compatible with AWG 16-14 wire, this ring-style tongue terminal locks onto a stud and cannot be removed without first removing the mounting screw, making it one of the most secure termination styles available for panel wiring, low-voltage control circuits, and equipment grounding connections. Each pack contains 10 bags. Licensed electricians and HVAC technicians commonly use ring terminals of this type when landing wires on bus bars, terminal blocks, or equipment grounding lugs.

This terminal is suited for residential and light commercial electrical installations where AWG 16-14 conductors are terminated to a size 6 stud. Typical applications include HVAC control boards, motor wiring harnesses, panel groundings, and general-purpose equipment terminations. The vinyl insulation sleeve protects the connection point from abrasion and incidental contact with adjacent conductors or metal enclosure edges.

Key Features

• Accepts AWG 16-14 wire range for versatile termination across common control and power conductor sizes
• Size 6 stud compatibility for standard terminal block and equipment grounding applications
• Ring tongue style cannot be removed unless the mounting screw is first removed, preventing accidental disconnection
• Vinyl insulation sleeve provides electrical isolation and abrasion resistance at the termination point
• Sold in a 10-bag case quantity, suitable for shop stock or job lot use

Compatibility

Designed as an OEM-style ring terminal for use with AWG 16-14 conductors terminating to a size 6 stud in residential and commercial electrical, HVAC control, and equipment wiring applications.

Installation Notes

Installation is performed by licensed electricians or qualified HVAC technicians following applicable NEC requirements for wire terminations. Strip the conductor to the appropriate length before inserting it fully into the vinyl sleeve and crimping with a calibrated ratcheting crimping tool. Ensure the mounting screw is fully tightened to the stud to maintain a secure mechanical and electrical connection. Always de-energize the circuit and verify with a meter before making or inspecting any termination.

Technical Specifications

• Wire Range: AWG 16-14
• Stud Size: 6
• Terminal Style: Ring tongue
• Insulation Type: Vinyl
• Package Quantity: 10 bags
• Weight: 0.06 pounds
• UPC: 00051128600412

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000133678
