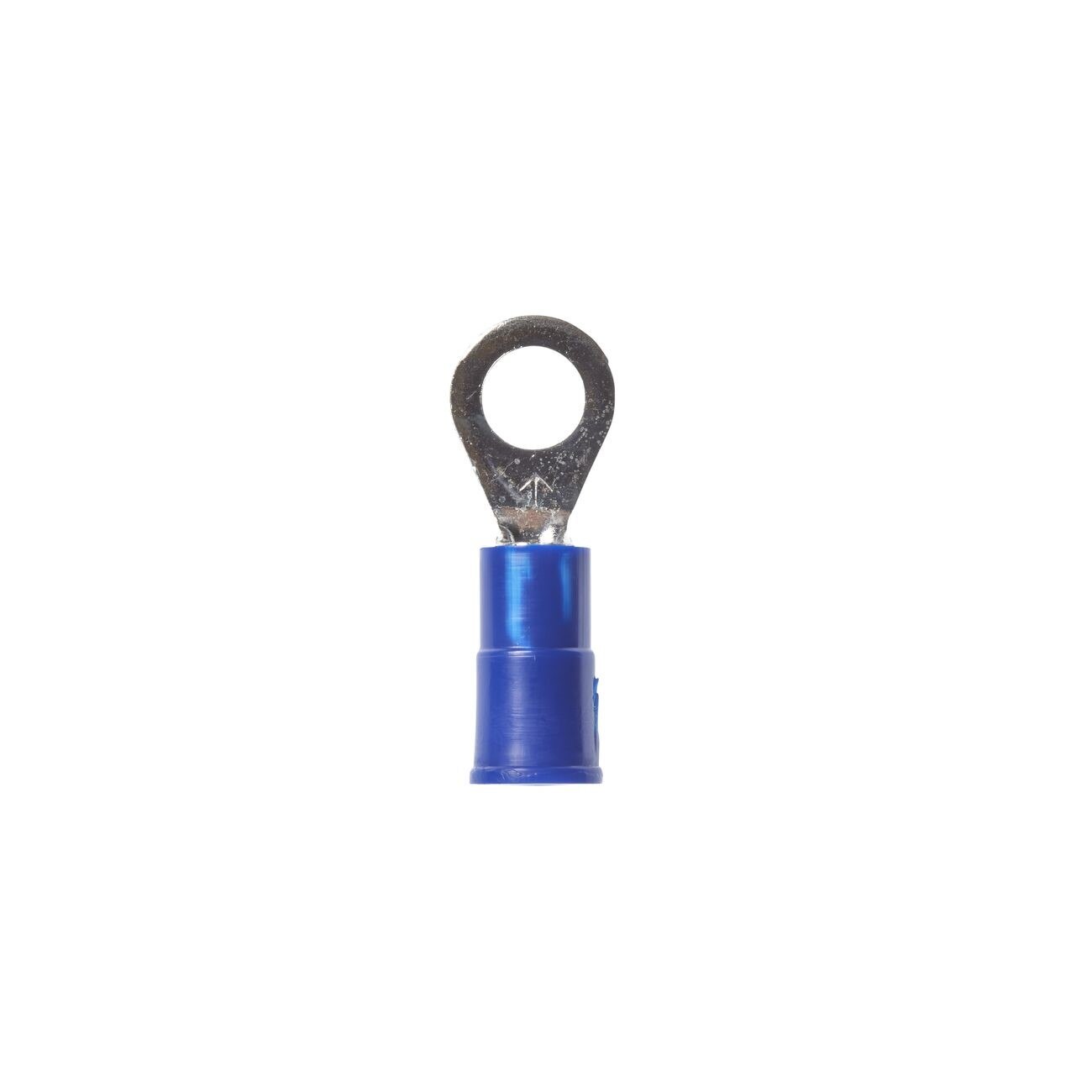

3M 7000133676 Vinyl Ring Terminal Awg 16-14 Stud 10

Product Description

The 3M 7000133676 is a vinyl-insulated ring terminal designed for secure, permanent electrical connections in wiring harness and panel wiring applications. Built for 16-14 AWG wire, it features a ring-tongue style that locks around the mounting stud and cannot be removed without first removing the fastener. This makes it one of the most secure terminal styles for applications where vibration or accidental disconnection is a concern. The vinyl insulation provides basic protection against abrasion and moisture at the connection point. Electricians and panel wiring technicians install these terminals using a hand or ratchet crimping tool calibrated for insulated terminals.

This ring terminal is suited for residential and light commercial wiring applications, including control panel wiring, low-voltage circuit connections, and equipment grounding. The stud size 10 fit accommodates standard number 10 screws and bolts common in electrical enclosures, control boards, and terminal blocks. Sold in packs of 10 bags, this terminal is appropriate for jobsite use where multiple connections are made per service call.

Key Features

• Ring-tongue style holds connection in place until mounting fastener is removed
• Accepts 16-14 AWG wire range for versatile use across common control and branch circuit wiring
• Stud size 10 fits standard number 10 screws and bolts
• Vinyl insulation protects the connection from abrasion and incidental moisture
• Sold in a case of 10 bags for multi-connection service work

Compatibility

Designed as an OEM-style ring terminal for use with 16-14 AWG conductors and number 10 stud fasteners in standard electrical and low-voltage control wiring installations.

Installation Notes

Installation is performed by licensed electricians or qualified wiring technicians. De-energize all circuits before terminating wires and verify with a meter before handling. Strip wire to the correct length per the terminal barrel depth and use a calibrated insulated-terminal crimping tool to form a gas-tight crimp. Do not solder over a crimped insulated terminal, as heat can degrade the vinyl insulation.

Technical Specifications

• Wire Range: 16-14 AWG
• Stud Size: 10
• Terminal Style: Ring Tongue
• Insulation Material: Vinyl
• Package Quantity: 10 bags
• Weight: 0.07 pounds
• UPC: 00051128600382

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000133676
