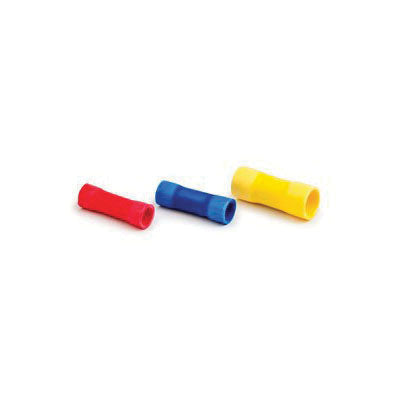

3M 7000133674 terminal 12 to 10 AWG conductor 1.26 in L butted barrel

Product Description

The 3M Highland 7000133674 terminal is designed for reliable and safe electrical connections. This terminal can accommodate conductor sizes from twelve to ten American Wire Gauge (AWG) and has a vinyl-insulated, butted seam barrel. It withstands temperatures ranging from minus forty to two hundred twenty-one degrees Fahrenheit. The electrolytic copper construction ensures good conductivity and includes a tin plating for corrosion resistance.

• Compatible with conductor sizes 12 to 10 AWG
• Withstands temperatures from -40 to 221 degrees F
• Rated for up to 1000 VAC

Product Highlights

This terminal is suitable for various electrical applications and provides a secure fit around the stud, preventing accidental removal.

Product Information

Standard Information

• Brand: 3M
• Part Number: RV10-516Q

Technical Specifications

• Conductor Type: Tin Plated Copper
• Temperature Rating: -40 to 221 deg F
• Voltage Rating: 1000 VAC
• Stud Size: 5/16 in
• Length: 1.26 in
• Barrel Size: 0.135 in ID x 0.25 in L
• Barrel Type: Butted
• Dimensions: 0.53 in W x 0.04 in THK
