3M 7000133662 Insulated Disconnect Terminal 600 VAC (25/Pack) Replacement MPN

Product Description

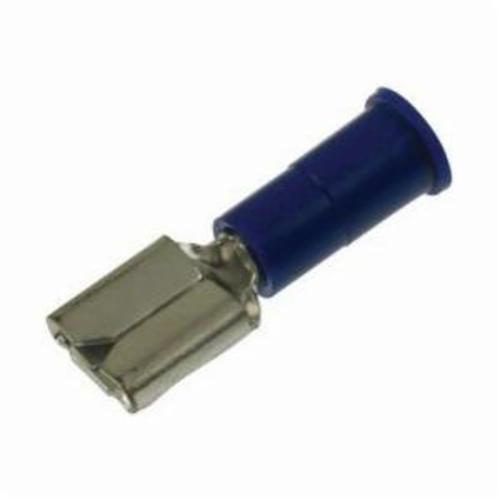

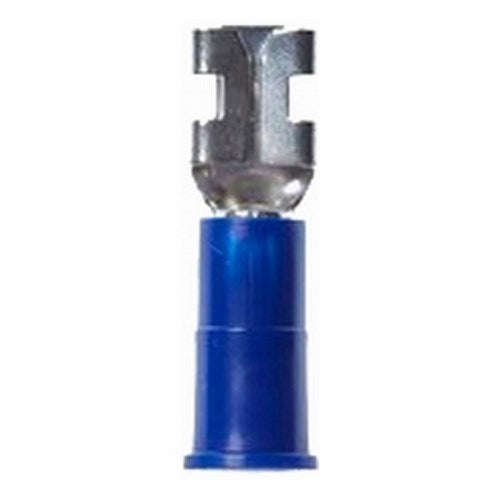

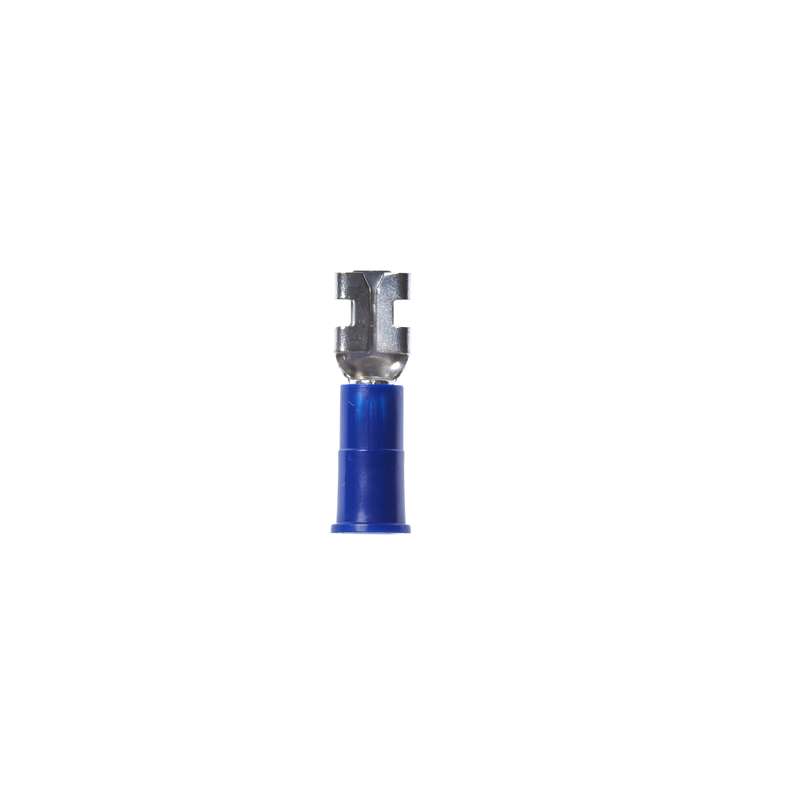

3M, 7000133662, is a disconnect terminal designed for insulated connections. It fits conductor sizes from sixteen to fourteen AWG. The tab measures zero point zero thirty-two by zero point one eighty-seven inches. This terminal operates at up to six hundred VAC. The overall length is zero point seventy-eight inches, and it can withstand temperatures ranging from negative forty to two hundred twenty-one degrees Fahrenheit.

• Meets UL and CSA standards for safety.
• Constructed from durable brass with a corrosion-resistant finish.
• Insulated design for safe connections and improved conductivity.

Product Highlights

Use this terminal for reliable electrical connections in various applications.

Product Information

Standard Information

• Manufacturer: 3M
• Brand: 3M

Technical Specifications

• Material: Brass
• Finish: TiN Plated
• Conductor Size: 16 to 14 AWG
• Tab Size: 0.032 x 0.187 in
• Voltage Rating: 600 VAC
• Temperature Rating: -40 to 221 deg F
• Insulation: Insulated
• Overall Length: 0.78 in
