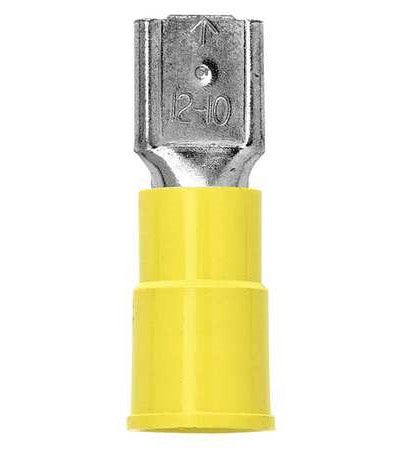

3M 7000133661 Highland Vinyl Insulated Female Disconnect Terminal FDV10-250Q, 12 to 10 AWG, 25/bag

Product Description

The 3M Highland Vinyl Insulated Female Disconnect Terminal with MPN 7000133661 is suitable for wire connections in various electrical applications. This terminal features a vinyl-insulated, butted-seam barrel that can withstand temperatures from negative forty to two hundred twenty-one degrees Fahrenheit. Its brass construction ensures good conductivity, while a tin-plated finish enhances corrosion resistance.

• Vinyl-insulated, butted-seam barrel for reliable performance.
• Temperature resistant from -40 to 221 degrees F.
• Easy wire insertion with funnel-designed sleeve.

Product Highlights

This terminal features a funnel-shaped polyvinyl chloride sleeve that aids in wire positioning and provides mechanical stress relief at the insulation point. The dents and rolled edges enhance the holding force, allowing for quick and easy disconnects. It is UL Listed, CSA Certified, and RoHS compliant.

Product Information

Standard Information

• Brand: 3M
• Part Number: FDV10-250Q

Technical Specifications

• Material: Plastic
• Conductor Size: 12 to 10 AWG
• Dimensions: 0.95 in length
• Tab Size: 0.25 in W x 0.032 in THK
• Voltage Rating: 600/1000 VAC
• Temperature Rating: -40 to 221 degrees F
• Package Quantity: 25 terminals per bag
