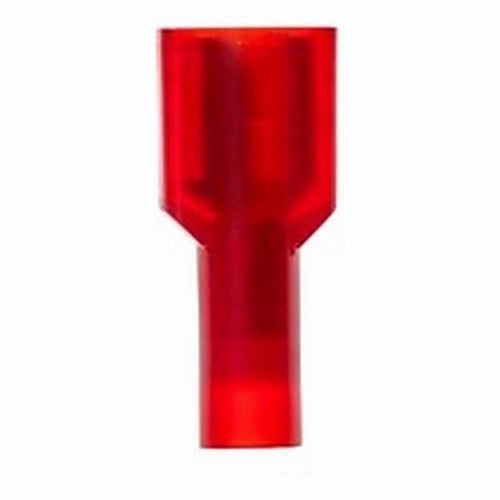

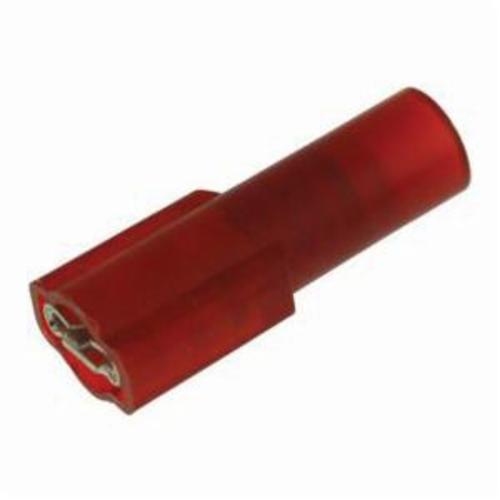

3M 7000133660 Highland Nylon Fully Insulated Female Disconnect Terminal FDI18-250Q

Product Description

The 3M Highland Nylon Fully Insulated Female Disconnect Terminal, MPN 7000133660, is designed for efficient electrical connections. This terminal is suitable for wire sizes ranging from twenty-two to eighteen AWG. It features a fully insulated design with a butted-seam barrel for reliable connectivity. The robust brass composition ensures longevity and functionality in various conditions.

• For wire sizes: 22 to 18 AWG
• Temperature range: -40 to 221 degrees Fahrenheit
• Insulated construction for safety and efficiency

Product Highlights

The disconnect terminal allows for quick and easy connections. It features a durable design that resists corrosion and provides excellent conductivity. Furthermore, the vinyl insulation ensures protection against abrasion.

Product Information

Standard Information

• Brand: 3M
• MPN: 7000133660

Technical Specifications

• Diameter: 0.23 inches
• Width: 0.37 inches
• Conductor Size: 22 to 18 AWG
• Tab Size: 0.032 x 0.25 inches
• Voltage Rating: 600 VAC
• Temperature Rating: -40 to 221 deg Fahrenheit
• Material: Brass
• Finish: TiN Plated
