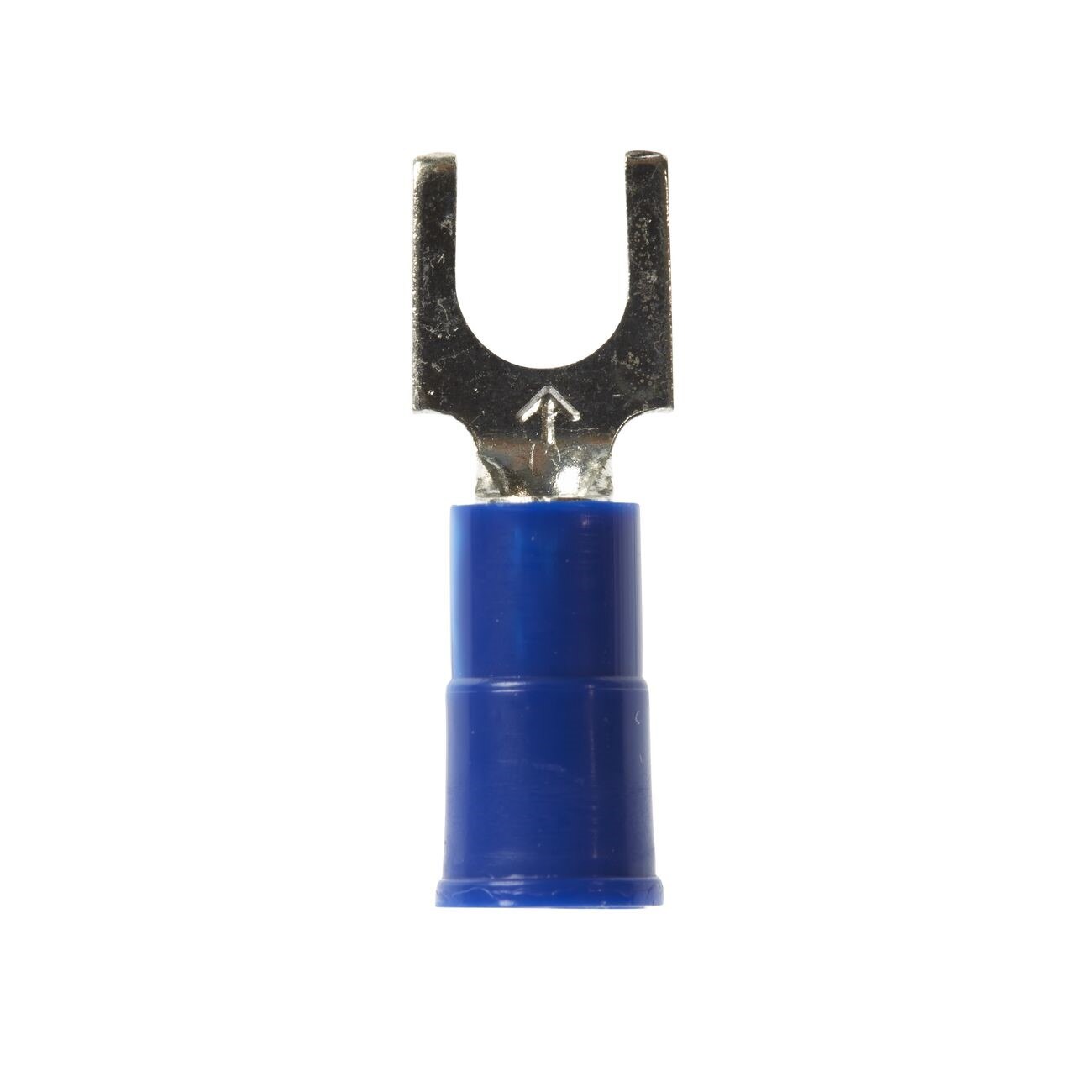

3M 7000133648 Block Fork Terminal Awg 16-14 Stud 10

Product Description

The 3M 7000133648 is a vinyl insulated block fork terminal designed for use in terminal block wiring applications. It accepts wire gauges in the 16-14 AWG range and fits a stud size 10. The flat-sided block fork design allows the terminal to seat flush against the barrier portion of a terminal block, unlike a standard open fork terminal. This part is installed by licensed electricians and experienced wiring technicians working on control panels, junction boxes, and other barrier terminal block assemblies. The vinyl insulation provides electrical isolation at the connection point.

This terminal is suited for residential and light commercial wiring applications where barrier-style terminal blocks are used. The flat body profile is specifically engineered to fit snugly against terminal block barriers, making it the correct choice when standard fork terminals would not seat properly. It is sold in packs with a minimum order quantity of 10 bags, making it practical for stocking on service vehicles or in shop inventory.

Key Features

• Flat-sided block fork body seats flush against terminal block barriers
• Accepts 16-14 AWG wire range
• Fits stud size 10
• Vinyl insulation provides electrical isolation at the termination point
• Same mechanical strength as standard fork terminals
• Sold in packs with a minimum quantity of 10 bags

Compatibility

Designed as an OEM-style replacement terminal for barrier-style terminal block assemblies requiring a stud size 10 block fork terminal with a 16-14 AWG wire range.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC guidelines. De-energize the circuit and verify absence of voltage before terminating any wires. Use a calibrated crimping tool rated for the AWG range being terminated to ensure a secure, low-resistance connection. Do not over-crimp or attempt to use this terminal on wire gauges outside the rated 16-14 AWG range.

Technical Specifications

• Wire Range: 16-14 AWG
• Stud Size: 10
• Insulation Material: Vinyl
• Weight: 0.07 pounds
• Unit of Measure: Pack
• Minimum Order Quantity: 10 bags
• UPC: 00051128599907

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000133648
