3M 7000133630 Heat Shrink Thin-Wall Tubing FP-301 600V 48 in Length 25 pcs

Product Description

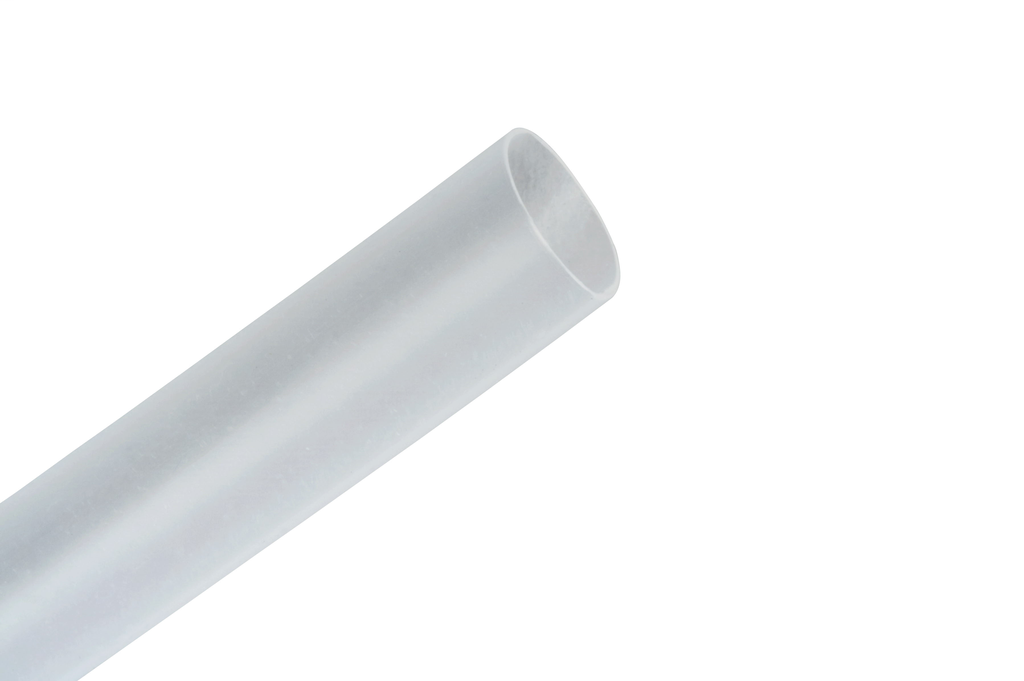

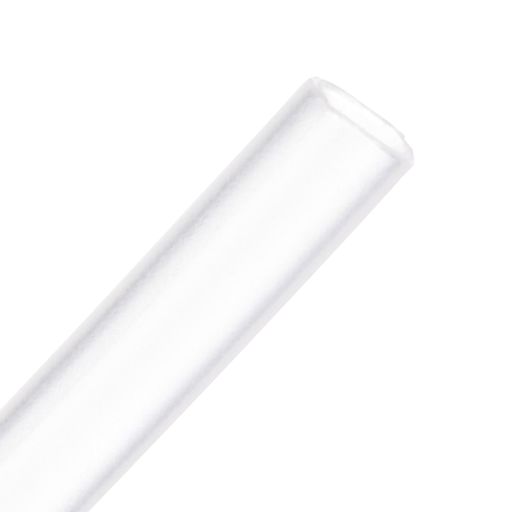

3M Heat Shrink Tubing FP-301, MPN 7000133630, is a thin-wall, flexible tubing designed for various industrial and military applications. This product is known for its excellent electrical, physical, and chemical properties. The tubing features a two-to-one shrink ratio, making it suitable for insulating cable splices and terminations. Each piece measures forty-eight inches in length, and the package comes with twenty-five pieces.

• Flexible polyolefin construction for durable insulation
• Flame-retardant rated for 600VAC applications
• Temperature range from minus sixty-seven to two hundred seventy-five degrees Fahrenheit

Product Highlights

This tubing is ideal for wire harnessing, wire marking, and component packaging, providing moisture seal protection while being resistant to cold flow.

Product Information

Standard Information

• Brand: 3M
• MPN: 7000133630

Technical Specifications

• Series: FP-301
• Shrink Ratio: 2:1
• Shrink Temperature: 212 degrees Fahrenheit
• Temperature Rating: -67 to 275 degrees Fahrenheit
• Voltage Rating: 600VAC
• Inner Diameter Expanded: 0.063 inches
• Inner Diameter Recovered: 0.031 inches
• Material: Flexible polyolefin
• Color: Clear
• Length: 48 inches
