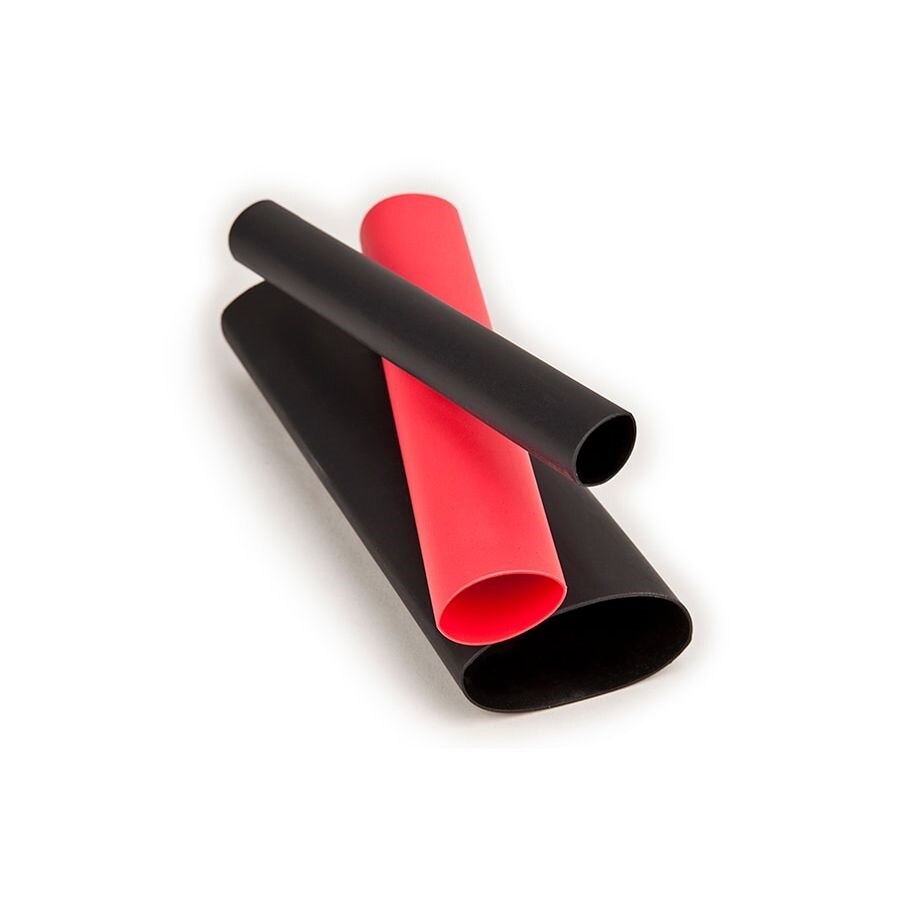

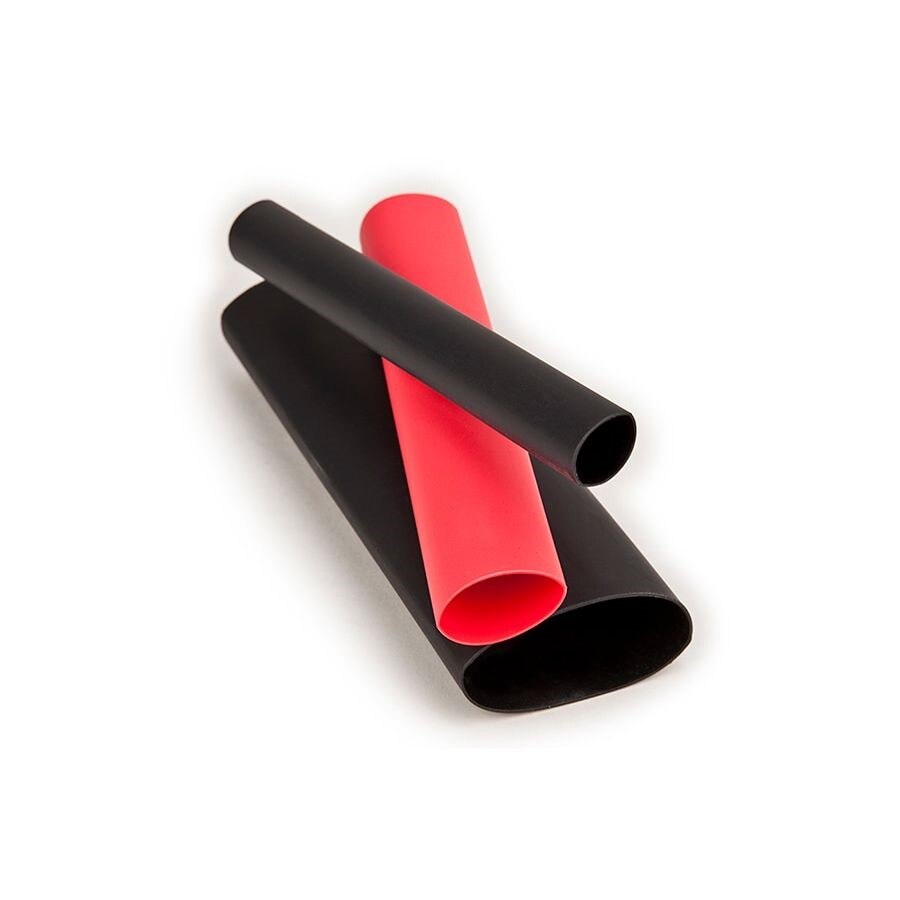

3M 7000133615 Heat Shrink Tubing EPS300 3/8 in 48 in Black

Product Description

The 3M 7000133615 is a heat shrink thin-wall tubing stick from the EPS-300 series, designed for environmental protection and electrical insulation in wiring and termination applications. Measuring 48 inches in length with a 3/8-inch recovered diameter, this black polyolefin sleeve shrinks down to seal out moisture, dust, and contaminants from wire splices, connectors, and cable ends. Each stick weighs 0.07 pounds. Electricians, HVAC technicians, and low-voltage installers use EPS-300 tubing where a clean, durable insulation sleeve is needed over bare conductors or bundled wiring harnesses.

This tubing is suited for residential and commercial electrical work, control wiring, HVAC low-voltage circuits, and general wire management tasks. The 48-inch stick format allows field technicians to cut segments to length as needed, reducing waste and speeding up termination work. It is commonly applied over splices, terminal lugs, ring terminals, and exposed conductor ends wherever environmental protection or added dielectric insulation is required.

Key Features

• 48-inch stick length allows field-cut segments to any required size
• 3/8-inch diameter rating fits standard wire bundle and connector sizes
• Thin-wall construction for lower profile over terminations
• Black color for UV resistance and standard wiring identification
• Environmental protection sleeve shields against moisture and contaminants
• Lightweight at 0.07 pounds per stick

Compatibility

Designed as a general-purpose heat shrink insulation sleeve compatible with standard wire splices, ring terminals, butt connectors, and exposed conductors requiring a 3/8-inch recovered diameter sleeve.

Installation Notes

Installation is performed by electricians and low-voltage technicians following applicable NEC guidelines. Slide the tubing over the conductor or termination before making the final connection, then apply uniform heat using a heat gun to shrink the sleeve evenly from the center outward. Do not use an open flame, as uneven heat can damage the tubing or underlying insulation. Ensure all conductors are de-energized before applying heat shrink sleeves.

Technical Specifications

• Series: EPS-300
• Diameter: 3/8 inches
• Length: 48 inches
• Color: Black
• Weight: 0.07 pounds
• UPC: 00051128599198
• Unit of Measure: Each
• Minimum Order Quantity: 125

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000133615
