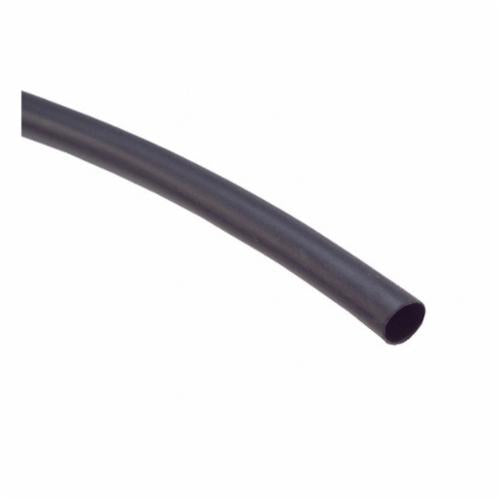

3M 7000133581 Heat Shrink Tubing EPS-300 1200V 12 Pieces 1/4 Inch

Product Description

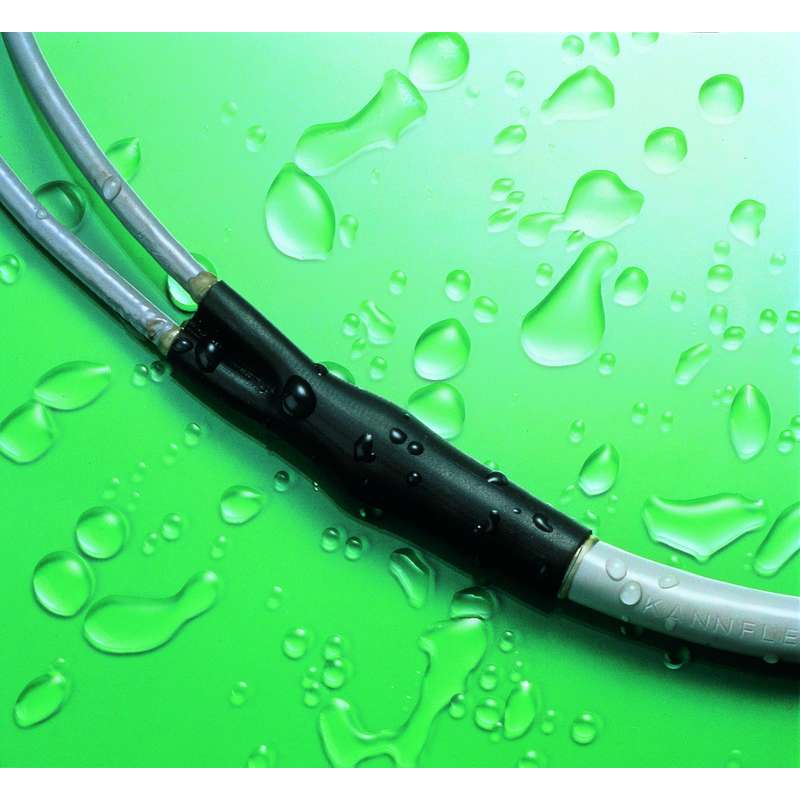

The 3M EPS-300 Heat Shrink Tubing, MPN 7000133581, is designed for effective wire protection in various applications. This dual-wall tubing is made from flexible polyolefin and includes an adhesive lining for moisture resistance. The tubing is suitable for use in automotive and marine environments, providing superior insulation for applications rated up to 600 volts.

• Integral adhesive-lined construction
• Flame-retardant and moisture-seal protection
• Shrink ratio of 3:1

Product Highlights

The 3M EPS-300 tubing provides excellent protection for electronic components and wire splices, thanks to its durable and flexible design. It is color-coded for easy identification and delivers strain relief for wire bundles and harness breakouts.

Product Information

Standard Information

• Brand: 3M
• MPN: 7000133581

Technical Specifications

• Length: 48 inches
• Recovered Inner Diameter: 0.08 inches
• Expanded Inner Diameter: 1/4 inch
• Shrink Ratio: 3:1
• Operating Temperature: -55 to 110 degrees Celsius
• Flame Retardant: Yes
• Wire Size Compatibility: 16 to 10 AWG
• Color: Black
• Material: Flexible Polyolefin
• Voltage Rating: 600 VAC
• Shelf Life: 10 years
