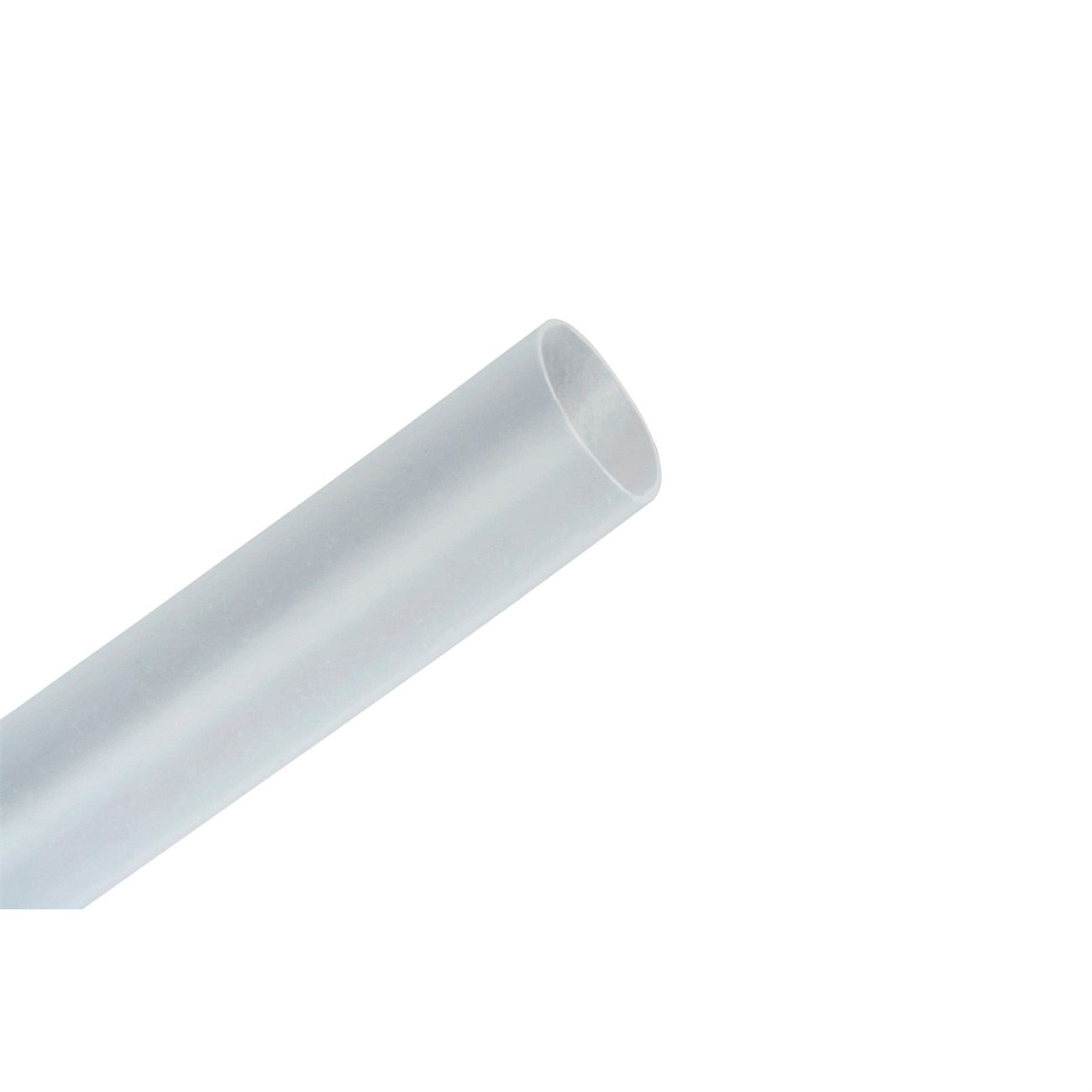

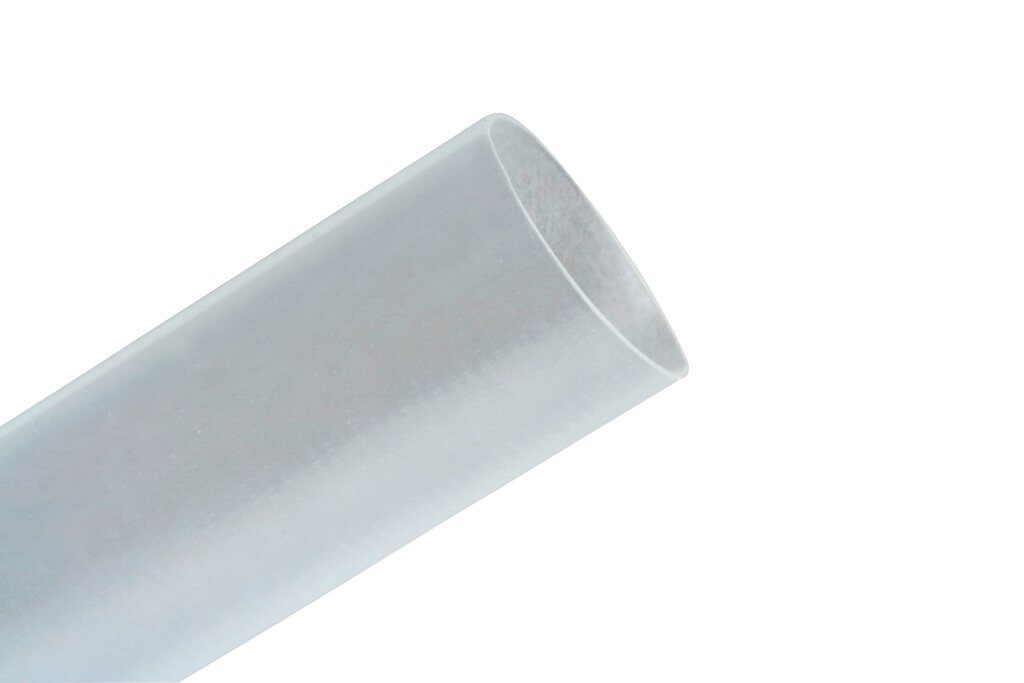

3M 7000133515 Heat Shrink Thin-Wall Tubing FP-301-3/4-Clear-48

Product Description

The 3M Heat Shrink Thin-Wall Tubing FP-301-3/4-Clear-48 is a versatile solution for various electrical insulation needs. This product features a shrink ratio of two to one, making it suitable for multiple applications in industrial and military settings.

• Suitable for 600 volt applications.
• Flexible polyolefin design provides moisture seal protection.
• Color-coded for easy wire identification.

Product Highlights

The tubing is designed to provide high-density insulation and protection for wires, connectors, and splices. It offers excellent resistance to cold flow and is flame-retardant.

Product Information

Standard Information

• Brand: 3M
• MPN: 7000133515

Technical Specifications

• Shrink Ratio: 2:1
• Shrink Temperature: 212 degrees F
• Temperature Rating: -67 to 275 degrees F
• Voltage Rating: 0.6 kVAC
• Wall Type: Single (Thin)
• Inner Diameter Expanded: 3/4 in
• Inner Diameter Recovered: 3/8 in
• Wall Thickness Recovered: 0.03 in
• Length: 48 in
• Material: Polyolefin
• Color: Clear
