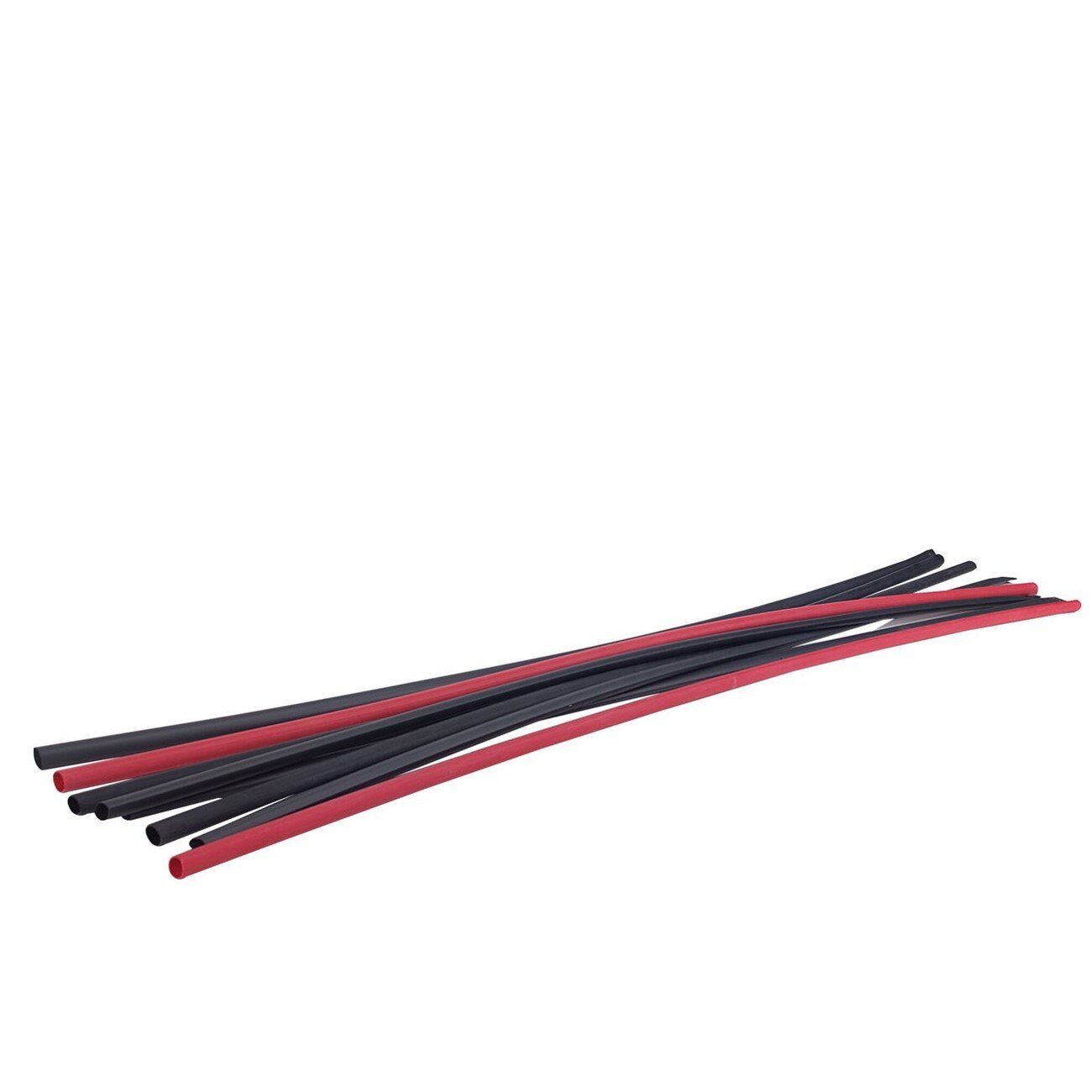

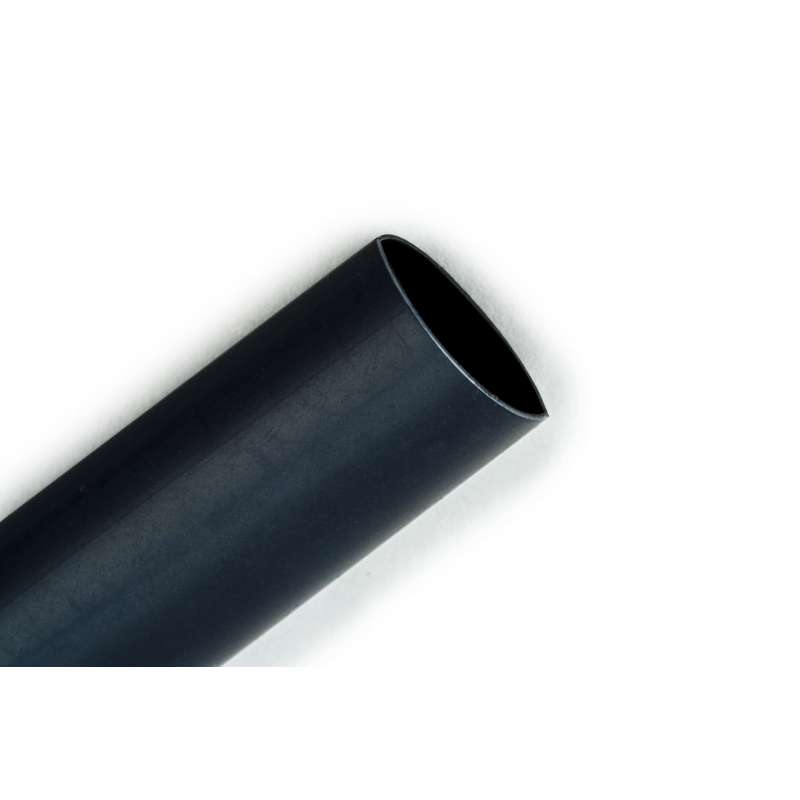

3M 7000133514 Heat Shrink Thin-Wall Tubing FP301-3/4-48

Product Description

The 3M Heat Shrink Thin-Wall Tubing, MPN 7000133514, is designed for electrical insulation applications. This tubing features a thin-wall construction and is available in a length of forty-eight inches. This product is ideal for military and industrial uses where moisture resistance and strain relief are necessary.

• Ideal for lightweight wire-harness covering and fire-resistant covering
• Offers 2:1 shrink ratio for various cable sizes
• Resists temperatures from minus sixty-seven to two hundred seventy-five degrees Fahrenheit

Product Highlights

This tubing is flame-retardant and rated for six hundred volts. Its flexible polyolefin material ensures moisture-seal protection and durability in demanding environments.

Product Information

Standard Information

• Manufacturer: 3M
• Type: Heat Shrink Tubing

Technical Specifications

• Length: 48 inches
• Inner Diameter Expanded: 3/4 inches
• Inner Diameter Recovered: 3/8 inches
• Wall Thickness Recovered: 0.03 inches
• Shrink Ratio: 2:1
• Temperature Rating: -67 to 275 degrees Fahrenheit
• Voltage Rating: 600 VAC
• Material: Polyolefin
• Color: Black
