Product Description

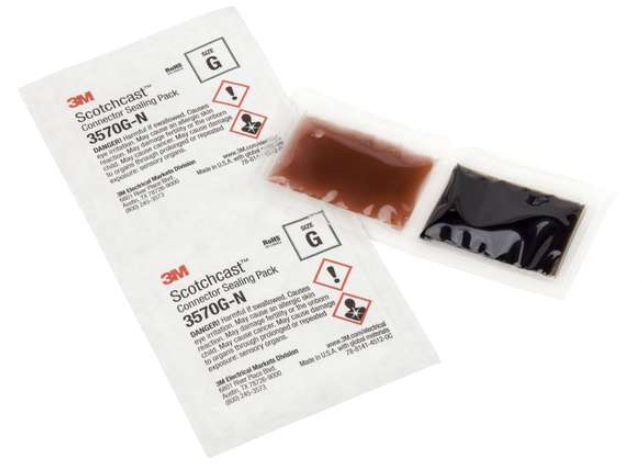

3M Scotchcast Connector Sealing Pack 3570G-N is suited for insulating and protecting electrical spring connectors. This resin safeguards connections from water, dust, and soil. It features a two-part epoxy that cures without melting or running, providing reliable moisture sealing.
This easy-to-use resin generates heat during curing and is flame retardant, making it suitable for various environmental conditions. It has a high tensile strength, elongating for better insulation and wrapping.
- Suitable for applications rated up to 600 kV
- 60 Shore D hardness for durable performance
- Contains a unique closed mixing pouch for convenience
Product Highlights
This product offers versatile insulation and encapsulation for electrical connections.
Product Information
Standard Information
-
Brand: 3M
-
MPN: 7000133446
Technical Specifications
-
Color: Black
-
Hardness: 60 Shore D
-
Elongation: 57%
-
Splice Type: Connector
-
Dielectric Strength: 435 Millivolt
-
Flame Retardant: Yes
-
Tensile Strength: 1779 Pound-Force Per Square Inch
-
Voltage Rating: 0 - 600 kV
