3M 7000133346 Scotchlok High Temperature Ring Tongue Terminal 12 to 10 AWG

Product Description

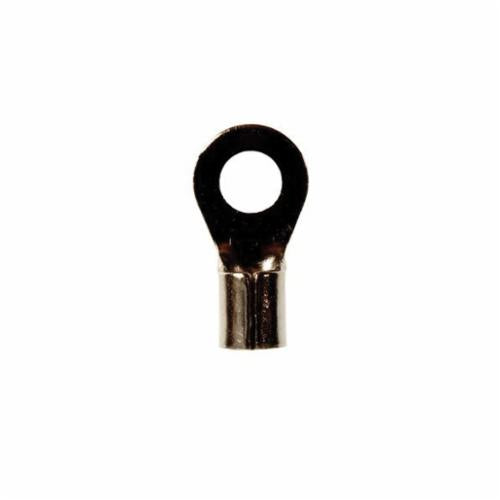

The 3M Scotchlok 7000133346 is a high-temperature ring tongue terminal designed for secure connections in electrical applications. It accommodates conductors sized 12 to 10 AWG and offers a non-insulated, butted-seam barrel that provides a reliable fit.

• Constructed from durable steel for heat resistance
• Beveled mouth for easy wire insertion
• Rated for use up to 900 degrees F

Product Highlights

This terminal is ideal for use in applications such as ovens, motors, and light fixtures, efficiently withstanding heat while maintaining performance.

Product Information

Standard Information

• Brand: 3M
• MPN: 7000133346

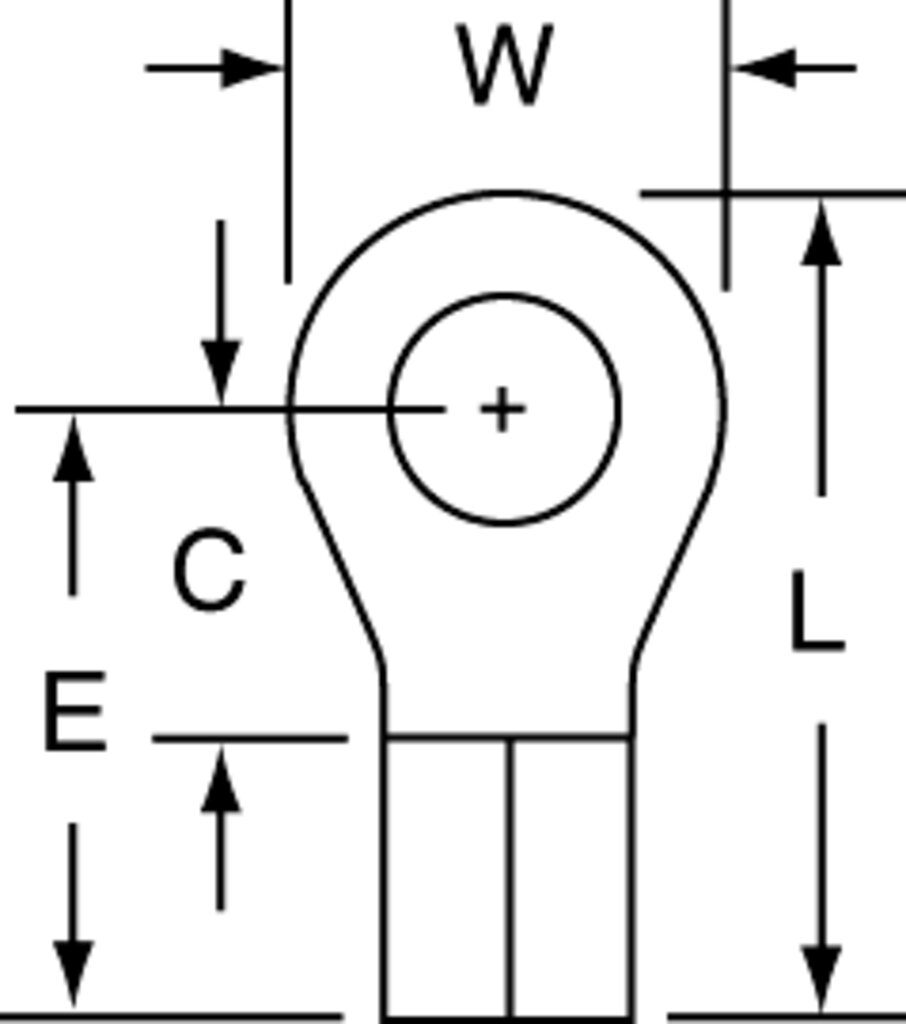

Technical Specifications

• Conductor Type: Non-Insulated
• Dimensions: 0.38 x 0.04 x 0.54 inches
• Stud Size: #10
• Temperature Rating: 900 degrees F
• Type: High Temperature
• Voltage Rating: 600 to 1000 VAC
• Conductor Size: 12 to 10 AWG
• Length: 0.73 inches
• Barrel Type: Butted
• Material: Steel
