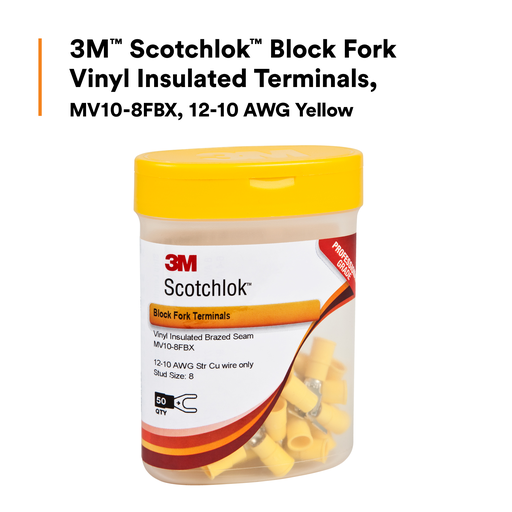

3M 7000133342 Block Fork Vinyl Insulated, 50/bottle, MV10-8FBX

Product Description

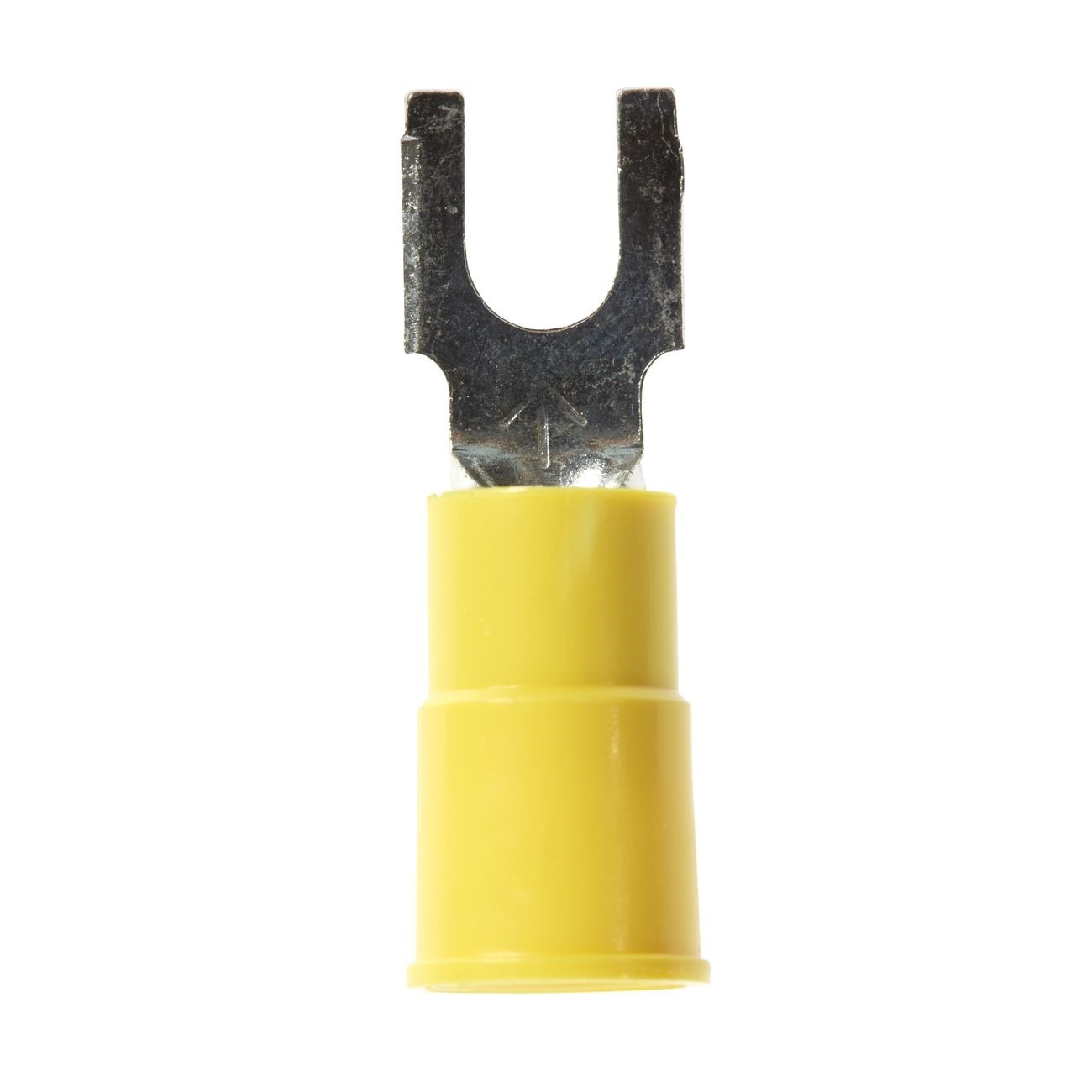

The 3M Scotchlok Block Fork Vinyl Insulated, MPN 7000133342, is a lug connection terminal designed for efficient electrical connection. This product features a vinyl-insulated, brazed-seam barrel capable of withstanding temperatures ranging from negative forty to two hundred twenty-one degrees Fahrenheit (negative forty to one hundred five degrees Celsius). The terminal is made from electrolytic copper, which ensures good conductivity.

It is color-coded for easy identification of wire sizes. The funnel-shaped, polyvinyl chloride sleeve guides the wire into position while providing electrical and mechanical stress relief. The terminal is suitable for use in terminal blocks and offers abrasion-resistant insulation for easy crimping. It meets UL, CSA, and RoHS compliance standards, ensuring safety and reliability.

• Vinyl-insulated, brazed-seam barrel for secure fitting
• Funnel-shaped PVC sleeve for easy wire insertion
• Color-coded for quick identification and organization

Product Highlights

This terminal is ideal for electrical applications requiring reliable and safe connections.

Product Information

Standard Information

• Brand: 3M
• Part Number: MV10-8FBX

Technical Specifications

• Color: Yellow
• Material: ETP Copper
• Package Quantity: 500 CONN
• Width: 0.32 in
• Max Operating Temperature: 105 degrees C
• Stud Size: 8
• Conductor Size: 12-10 AWG
• Terminal Style: Block
• Terminal Type: Fork
