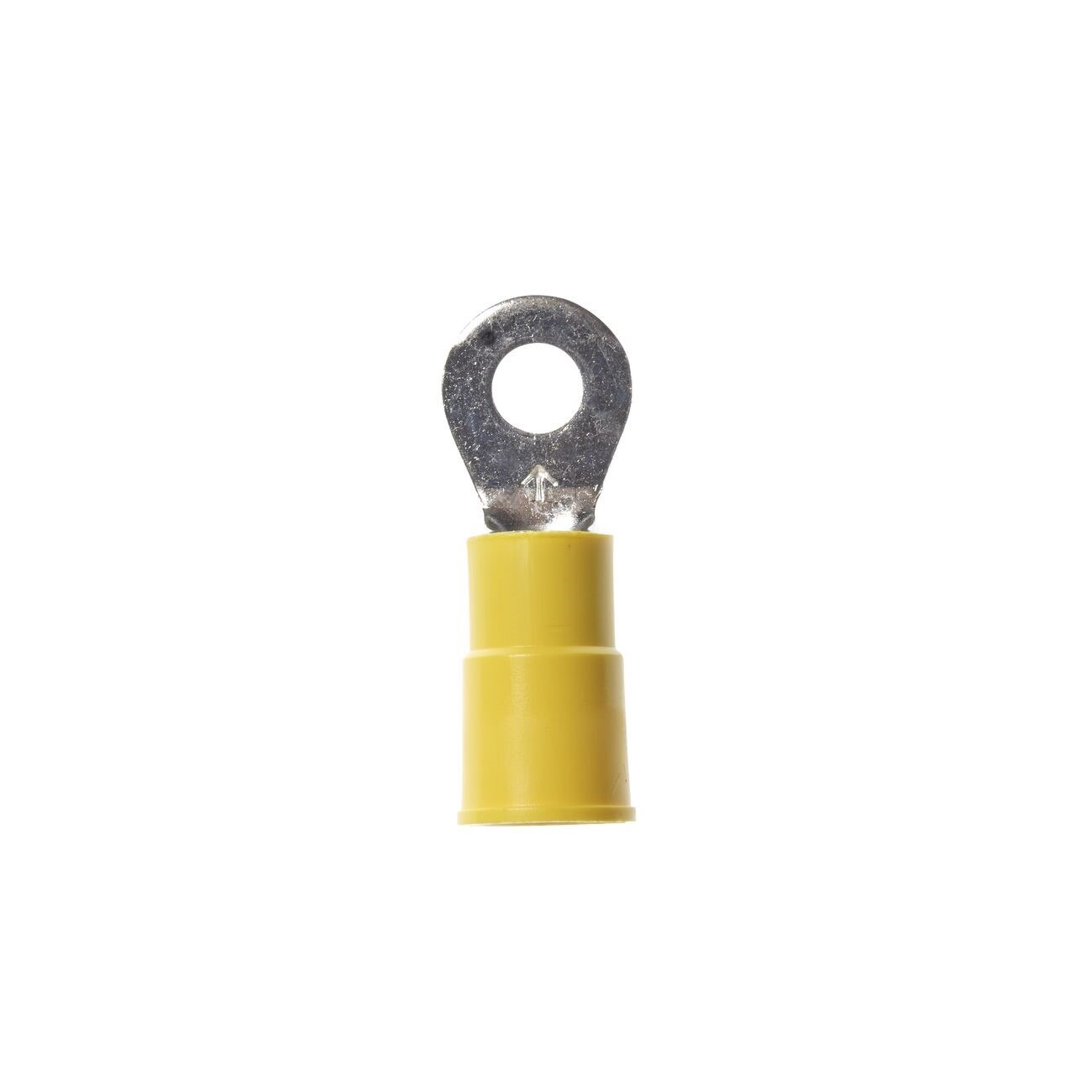

3M 7000133337 Vinyl Insulated Ring Terminal

Product Description

The 3M 7000133337 is a vinyl insulated ring terminal sold in bottles of 50. Ring terminals provide a secure, loop-style connection point where a wire conductor is crimped into the barrel and the ring end is fastened to a stud or screw terminal. The vinyl insulation sleeve protects the crimp joint from moisture and abrasion. This terminal is sized for use with 10 AWG wire on a No. 8 stud, making it a common fit in low-voltage wiring, control panel assemblies, and equipment grounding applications. Electricians and control panel technicians handle installation during new construction and service work.

Vinyl insulated ring terminals in the MV10-8RX configuration are used in residential and light commercial electrical work, HVAC control wiring, and panel termination tasks. The 50-count bottle format suits service vans and shop inventory where moderate quantities are needed without bulk-pack overstock. These terminals are appropriate wherever a reliable, insulated ring connection is required on a No. 8 screw or stud.

Key Features

• Vinyl insulation sleeve protects crimp joint from moisture and abrasion
• Ring-style termination for secure fastening to studs and screw terminals
• Sized for No. 8 stud with 10 AWG wire conductors
• 50-count bottle packaging for convenient field and shop use
• Crimp-style installation requires no soldering

Compatibility

Designed as an OEM-style ring terminal for use with 10 AWG conductors terminating on No. 8 studs or screw terminals in standard electrical and control wiring applications.

Installation Notes

Installation is performed by licensed electricians or qualified control wiring technicians. De-energize all circuits before terminating conductors. Use a calibrated ratcheting crimper appropriate for the wire gauge to achieve a secure, gas-tight crimp. Follow NEC guidelines for conductor preparation, insulation stripping length, and terminal torque specifications at the fastening stud.

Technical Specifications

• Model Reference: MV10-8RX
• Insulation Type: Vinyl
• Terminal Style: Ring
• Stud Size: No. 8
• Wire Gauge: 10 AWG
• Quantity per Bottle: 50
• Weight: 0.01 pounds
• UPC: 00051128587577

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000133337
