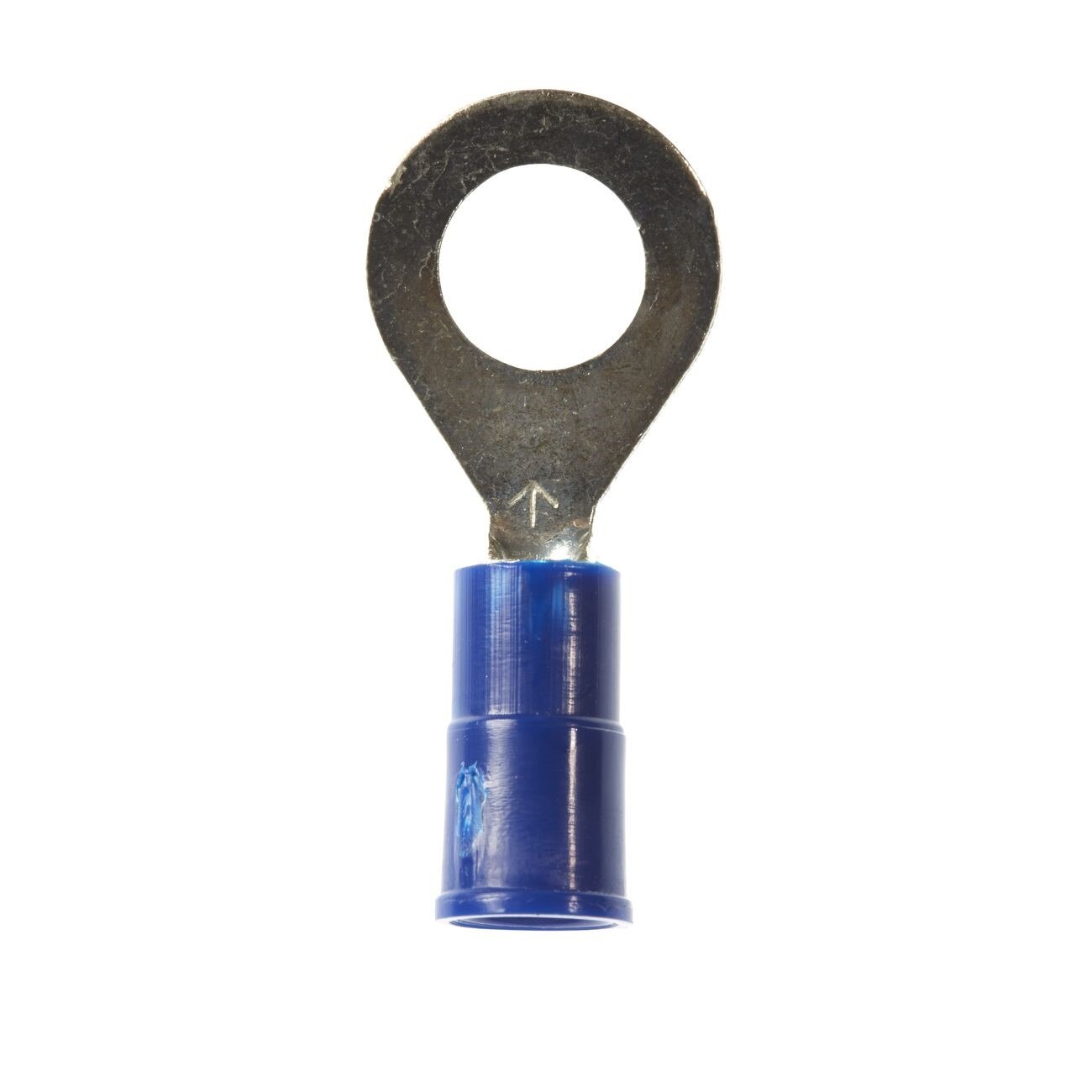

3M 7000133329 Vinyl Insulated Ring Terminal

Product Description

The 3M 7000133329 is a vinyl-insulated ring terminal sold in bottles of 100, designed for secure, reliable electrical connections in wire termination applications. The MV14-14R/SX designation identifies the specific wire range and stud size this terminal is engineered to accept. Ring terminals of this type are used to fasten a conductor to a screw or stud, creating a low-resistance mechanical and electrical connection. Electricians and electrical assemblers install these terminals using a ratcheting crimping tool suited to the terminal gauge range. The vinyl insulation sleeve protects the crimped barrel from moisture and incidental contact.

Vinyl insulated ring terminals are used across residential, commercial, and light industrial electrical work wherever a wire must be fastened to a terminal block, ground lug, or equipment stud. The MV14-14R/SX variant is sized for use in panel wiring, control panels, and equipment hookups where a clean, inspectable crimp connection is required. These terminals are typically installed by licensed electricians or trained electrical assemblers following NEC guidelines for wire termination and insulation integrity.

Key Features

• Vinyl insulation sleeve provides protection against moisture and abrasion at the crimp barrel
• Ring tongue design allows fastening to screws and studs without removing the fastener
• Sold in bottles of 100 for convenient shop and job-site inventory management
• MV14-14R/SX designation specifies wire gauge range and ring stud size for proper selection
• Suitable for use in control panel wiring, equipment terminations, and ground connections

Compatibility

Designed as an OEM-style ring terminal for use with conductors and stud sizes matching the MV14-14R/SX specification. Refer to the terminal designation and manufacturer documentation to confirm wire gauge and stud size compatibility before installation.

Installation Notes

Installation should be performed by a qualified electrician or trained technician in accordance with NEC requirements for wire termination. De-energize the circuit completely before terminating any conductors. Use a calibrated ratcheting crimping tool rated for the terminal gauge to ensure a gas-tight crimp. Inspect the finished crimp for insulation damage and confirm the ring is fully seated on the stud before torquing the fastener.

Technical Specifications

• Terminal Type: Vinyl Insulated Ring
• Part Series: MV14-14R/SX
• Quantity per Bottle: 100
• Weight: 0.01 pounds
• UPC: 00051128587508

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000133329
