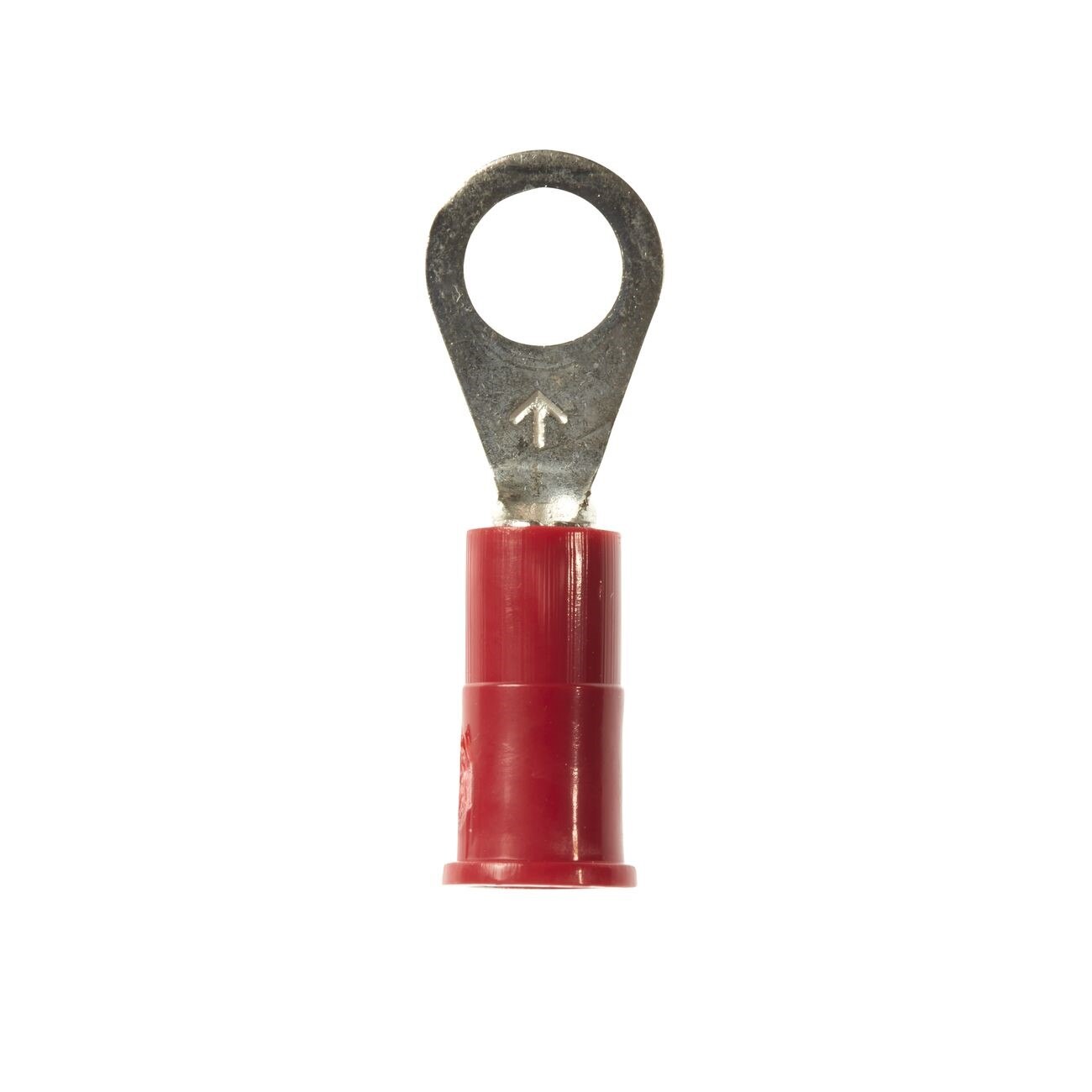

3M 7000133316 Vinyl Insulated Ring Terminal 100pk

Product Description

The 3M 7000133316 is a vinyl insulated ring terminal sold in bottles of 100, designed for secure, reliable wire terminations in electrical and low-voltage wiring applications. Identified by the model designation MV18-10R/LX, this crimp-style connector provides a clean, insulated connection between a conductor and a screw or stud termination point. The vinyl insulation sleeve protects the connection from abrasion and incidental contact. Electricians and panel technicians reach for ring terminals like this when landing wires on bus bars, terminal blocks, or grounding studs where a captive, loop-style connection is required.

This terminal is suited for use in residential and light commercial electrical work, control panel wiring, HVAC equipment connections, and general low-voltage wiring tasks. The 100-count bottle format makes it practical for service trucks, panel shops, and contractors who regularly terminate multiple circuits. The MV18-10R/LX designation indicates wire gauge and stud size compatibility, so verify your conductor size and fastener diameter before installation.

Key Features

• Vinyl insulated sleeve for protection against abrasion and incidental contact
• Ring-style tongue provides a captive connection at screw or stud termination points
• Sold in 100-count bottles for high-volume or stock use
• MV18-10R/LX designation identifies wire gauge and stud size for correct selection
• Crimp termination method for fast, consistent field installation

Compatibility

Designed as an OEM-style crimp ring terminal for use with compatible wire gauges and stud sizes as indicated by the MV18-10R/LX designation. Verify conductor gauge and fastener diameter against terminal specifications before installation.

Installation Notes

Ring terminals are installed by licensed electricians and qualified technicians working under NEC guidelines. Always de-energize and lock out the circuit before crimping or landing any terminal. Use a calibrated ratcheting crimp tool appropriate for the terminal gauge range to ensure a gas-tight, pull-resistant crimp. Do not use pliers or uncalibrated tools as substitutes for a proper crimping tool, as an improper crimp can result in a high-resistance connection or pull-out failure.

Technical Specifications

• Insulation Type: Vinyl
• Terminal Style: Ring
• Model Designation: MV18-10R/LX
• Quantity per Bottle: 100
• Weight: 0.01 pounds
• UPC: 00051128587324

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000133316
