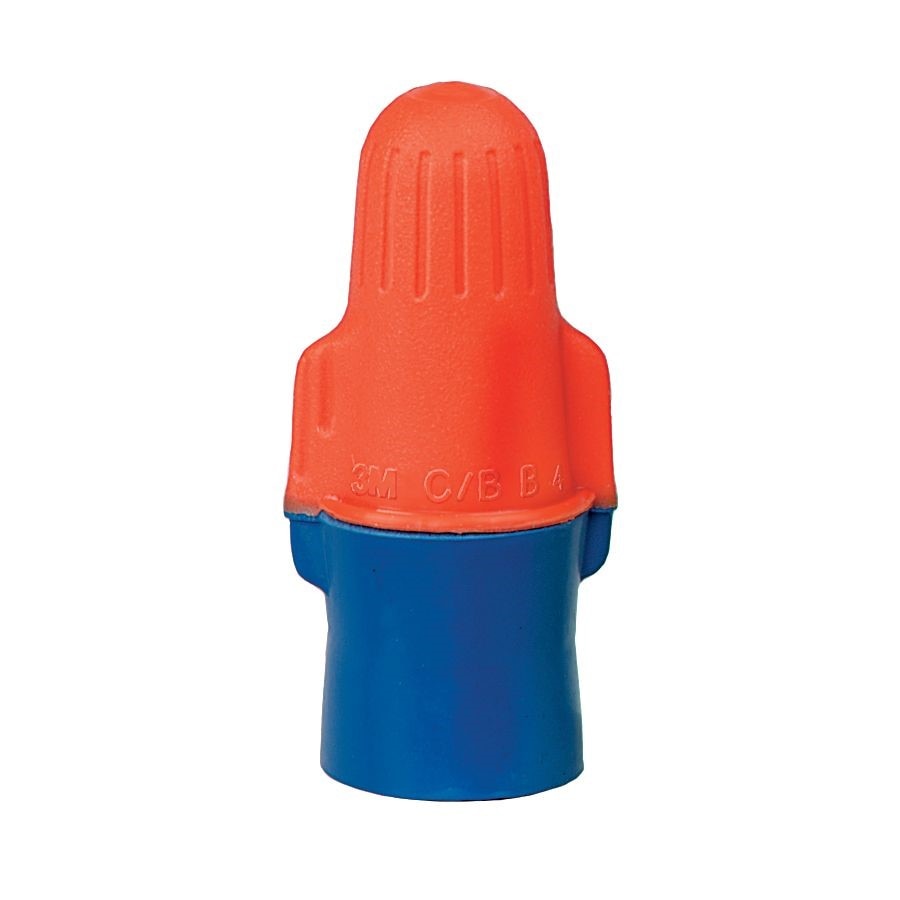

3M 7000133222 Wire Connector Orange Blue 500 Per Jug

Product Description

The 3M 7000133222 is a Performance Plus Wire Connector designed for use in residential and commercial electrical wiring applications. Known as the O/B+ connector, it combines a compact shell with an expanded wire range, accepting from two 22 AWG wires up to three 12 AWG solid wires or four 14 AWG wires. The improved spring mechanism bites wire quickly and with less hand effort than standard connectors. The small shell profile fits into tight junction boxes and enclosures, and the flexible skirt provides a barrier against contact with overstripped wire ends. Licensed electricians and electrical contractors are the primary installers.

This connector is suited for a wide range of residential and commercial wiring jobs where multiple wire gauges are encountered in a single service call or installation. The O/B+ is designed to replace orange, blue, and gray spring connector style connectors, as well as approximately 70 percent of yellow spring connector and wing style connectors. Sold in a 500-count jug, it is well-suited for stocking service vehicles or shop inventory where connector variety and volume are daily concerns. The broad wire range reduces the number of connector SKUs an electrician needs to carry on the job.

Key Features

• Accepts 2x 22 AWG up to 3x 12 AWG solid or 4x 14 AWG wires in a single connector
• Compact shell fits easily into tight electrical boxes and confined spaces
• Flexible skirt guards against contact with overstripped wire ends
• Improved spring design requires less hand effort for fast, secure wire termination
• Replaces orange, blue, and gray spring connectors plus 70 percent of yellow spring and wing style connectors
• 500-count jug format supports high-volume stocking for service fleets and shop inventory

Compatibility

The O/B+ connector replaces orange, blue, and gray spring connector style connectors, as well as approximately 70 percent of yellow spring connector and wing style connectors across a wide range of general wiring applications.

Installation Notes

Installation is performed by licensed electricians in accordance with applicable NEC requirements. De-energize the circuit at the breaker and verify with a voltage tester before making wire connections. Strip wire ends to the appropriate length per the connector manufacturer guidance and insert wires fully before engaging the spring. Do not exceed the stated wire range of the connector, as overfilling can result in an unreliable connection.

Technical Specifications

• Wire Range (Minimum): 2x 22 AWG
• Wire Range (Maximum, Solid): 3x 12 AWG or 4x 14 AWG
• Shell Color: Orange with Blue Skirt
• Quantity Per Jug: 500
• Weight: 0.01 pounds per connector
• UPC: 10054007431531

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000133222
