3M 7000132941 Wire Connector Super Tan 25000 Per Keg

Product Description

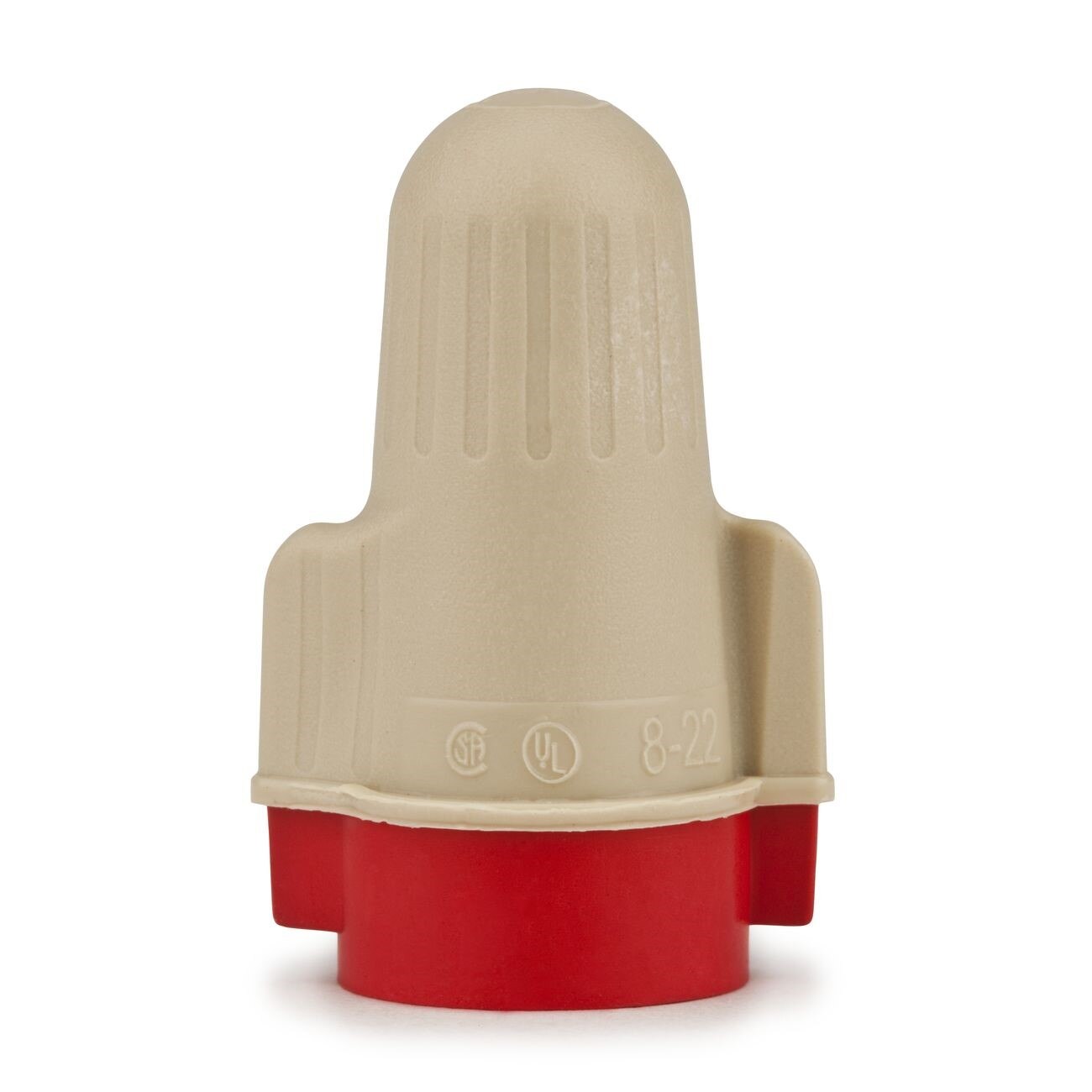

The 3M 7000132941 is a Performance Plus Wire Connector rated for a wide conductor range, from two 18 AWG wires up to five 12 AWG wires. It is designed for pigtail splicing applications, electrically connecting two or more conductor ends and insulating the joint in a single step. The quick-bite spring design secures conductors fast, while the comfortable wing design provides a firm grip during installation. The compact body with a red miniskirt makes it easy to handle in tight junction boxes. Licensed electricians and experienced electricians use this connector on residential and light commercial wiring jobs.

This connector is intended for pigtail wiring applications in residential and commercial electrical installations. Its wide wire range means a single connector type covers the majority of field connections that would otherwise require yellow, red, or tan connectors separately, reducing the number of connector types a technician needs to carry on a job. It is also compatible with the 3M Wire Connector Driver WCD-P for tool-assisted installation, which is useful on high-volume jobs.

Key Features

• Wide conductor range: two 18 AWG up to five 12 AWG wires
• Replaces yellow, red, and tan connectors in most field applications
• Quick-bite spring design for fast, secure conductor engagement
• Wing design provides comfortable grip and controlled torque during installation
• Compatible with 3M Wire Connector Driver WCD-P for tool-assisted use
• Sold in a keg of 25,000 connectors for high-volume job site supply

Compatibility

Designed for pigtail splicing of copper conductors in standard residential and commercial electrical wiring applications. Compatible with the 3M Wire Connector Driver WCD-P.

Installation Notes

Installation is performed by licensed electricians in accordance with the National Electrical Code (NEC). Always de-energize and lock out the circuit at the breaker before making any wire connections. Twist the connector clockwise onto the stripped conductor ends until the spring fully engages and the conductors cannot be pulled free. Do not over-extend the strip length beyond the connector's design range, and verify the conductor combination falls within the listed wire range before installing.

Technical Specifications

• Conductor Range (Minimum): two 18 AWG
• Conductor Range (Maximum): five 12 AWG
• Color: Super Tan with red miniskirt
• Weight: 0.01 pounds per connector
• Quantity per Keg: 25,000
• UPC: 00051128544563

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000132941
