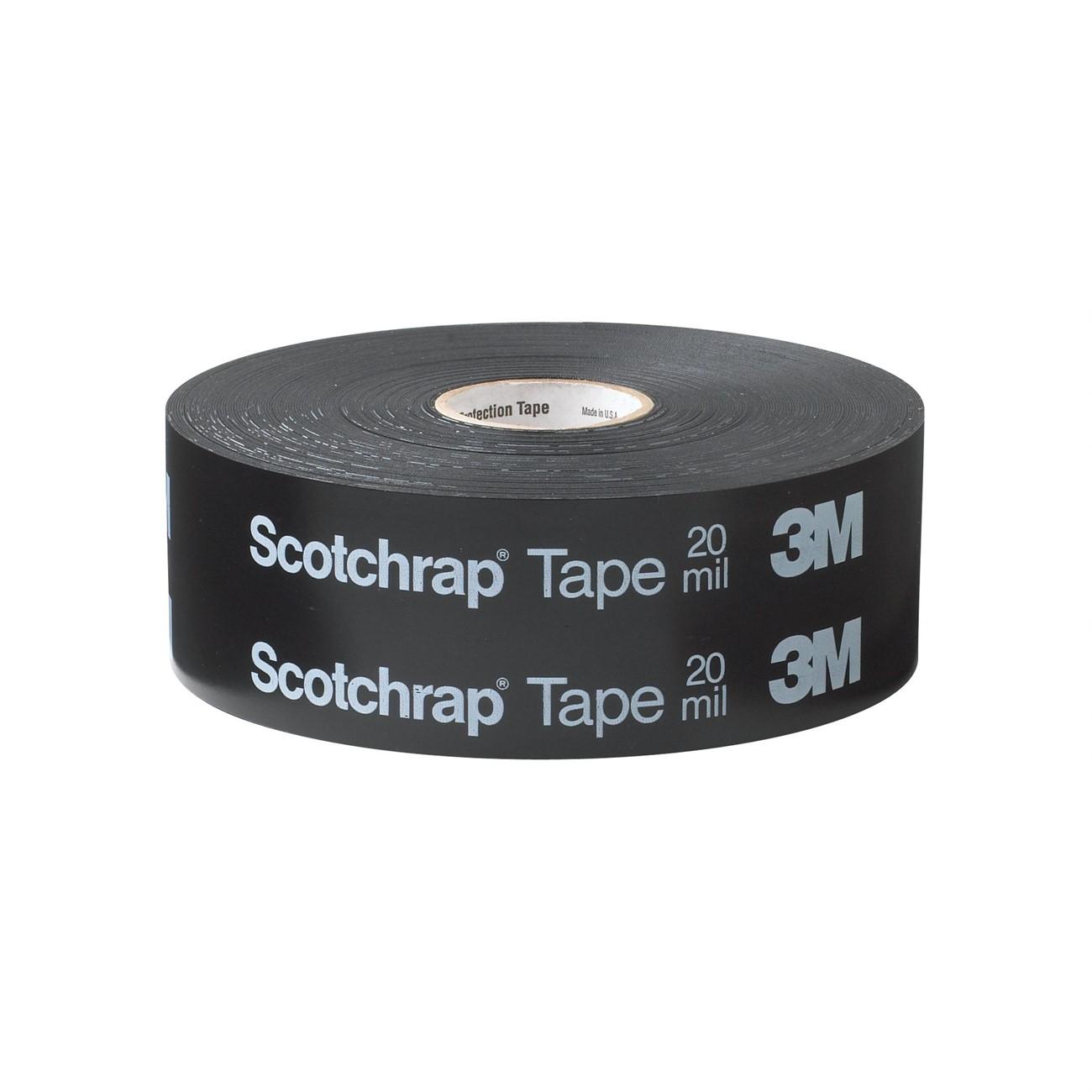

3M 7000132743 Corrosion Protection Tape 2in X 100ft Pvc

Product Description

The 3M 7000132743 is a 20 mil polyvinyl chloride (PVC) corrosion protection tape designed to seal and protect metal piping systems in above-ground and below-ground installations. The tape features a high-tack adhesive that bonds to pipes, conduits, and fittings, delivering resistance to impact, abrasion, and puncture. It carries a temperature rating of 176 degrees F and offers excellent UV resistance for long-term outdoor exposure. Each roll is printed with the product name and thickness for easy field identification. Licensed plumbers, pipefitters, and corrosion-control technicians are the primary installers of this product.

This tape is suited for protecting metal pipe, conduit, and fittings in both residential and commercial applications, including buried gas, water, and utility lines as well as exposed above-grade piping subject to weathering. It applies over a wide temperature range, making it practical for field installation in varying climate conditions. The manufacturer notes that 3M Scotchrap Pipe Primer should be used in conjunction with all corrosion protection tapes of this type for optimal adhesion and performance.

Key Features

• 20 mil PVC construction provides robust impact and puncture resistance
• High-tack adhesive bonds to pipes, conduits, and fittings above and below ground
• Rated to 176 degrees F for use in high-temperature environments
• Excellent UV resistance for above-ground and exposed installations
• Applies over a wide temperature range for flexible field use
• Printed with product name and thickness for fast, accurate identification on the job

Compatibility

Designed for use on metal pipes, conduits, and fittings in above-ground and below-ground installations. Use with 3M Scotchrap Pipe Primer for all corrosion protection tape applications.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or corrosion-control technicians following applicable code requirements. Clean and dry all pipe surfaces before applying tape, and apply 3M Scotchrap Pipe Primer prior to wrapping for best adhesion. Wrap with consistent overlap as required by project specifications, and ensure all fittings and joints are fully covered. Shut off and depressurize any active line before performing work on buried or exposed pipe sections.

Technical Specifications

• Thickness: 20 mil
• Material: Polyvinyl Chloride (PVC)
• Adhesive Type: High-tack
• Temperature Rating: 176 degrees F
• UV Resistance: Excellent
• Weight: 2.45 pounds
• Unit of Measure: Roll
• UPC: 00054007428039

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000132743
