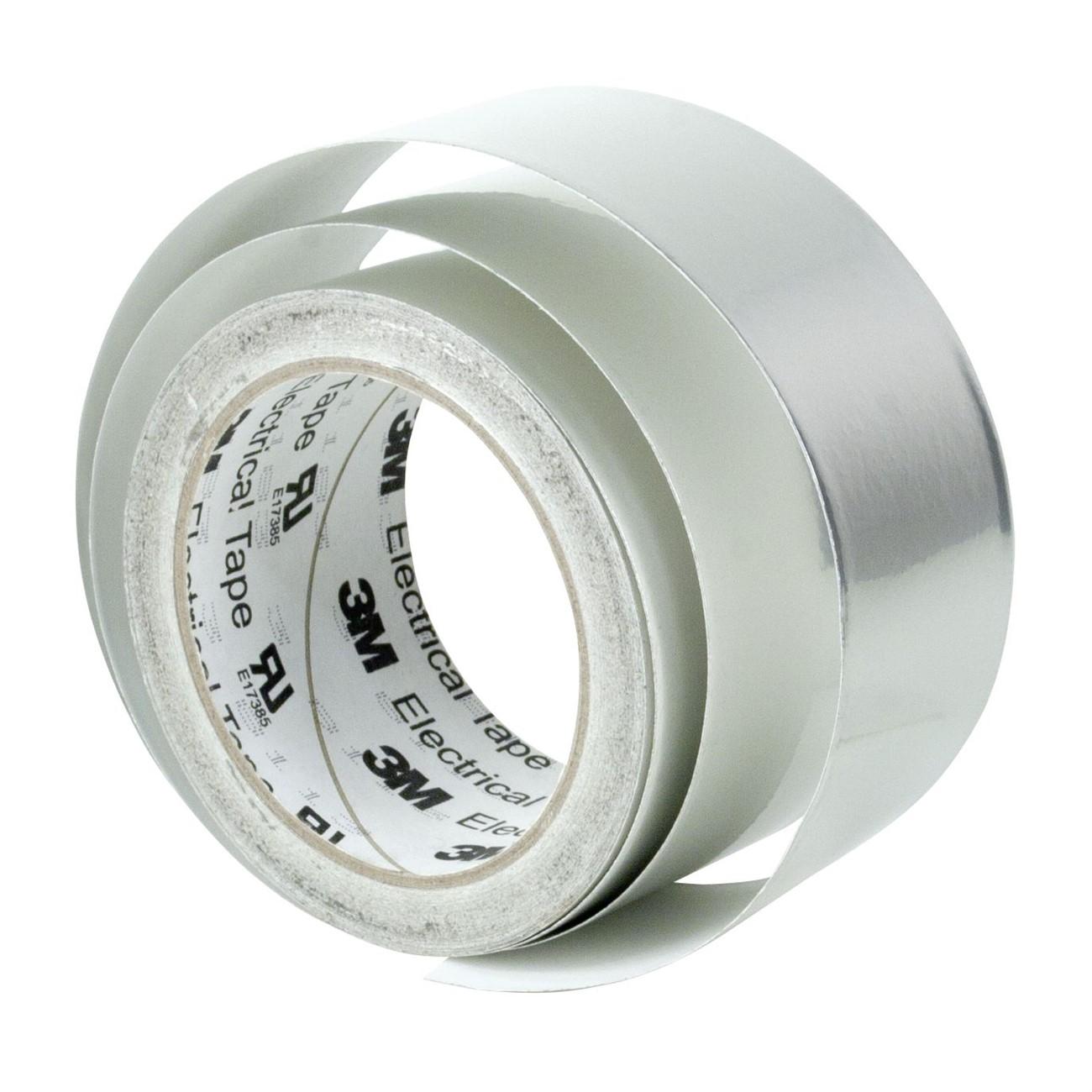

3M 7000132708 Copper Foil Emi Shielding Tape 3/4 in 18 Yd

Product Description

The 3M 7000132708 is a tin-plated copper foil EMI shielding tape designed for applications requiring reliable electrical conductivity from the substrate through the acrylic adhesive to the backing. At 2.6 mil thick, it delivers consistent shielding performance in grounding and EMI suppression work. The tape is flame retardant and rated for 600-volt dry applications. It ships on a removable liner to support die-cutting and precise handling. Electricians and electronics technicians working on shielded enclosures, equipment, and EMI-sensitive components will find this tape suited to demanding installation environments.

This tape is used in grounding and EMI shielding applications across residential, commercial, and industrial settings. Typical uses include wrapping shielded cables, lining shielded rooms, and securing EMI shielding on electrical components and equipment enclosures. The acrylic adhesive creates secure contact with application surfaces and maintains bond integrity across a wide temperature range of -40 to 266 degrees F (-40 to 130 degrees C). The removable liner makes it practical for die-cutting to custom shapes in shop or field conditions.

Key Features

• Tin-plated copper foil backing provides conductivity through the adhesive to the substrate
• Rated for 600-volt dry applications
• Flame-retardant construction for use in fire-code-sensitive installations
• Operating temperature range: -40 to 266 degrees F (-40 to 130 degrees C)
• Removable liner supports clean die-cutting and field handling
• UL Listed and RoHS 2011/65/EU compliant

Compatibility

Designed for EMI shielding and grounding applications on electrical components, shielded cable assemblies, and shielded room construction where a conductive, flame-retardant foil tape is required.

Installation Notes

Installation is typically performed by licensed electricians or electronics technicians familiar with EMI shielding practices. Power down and de-energize any equipment before applying tape to live assemblies. Ensure the application surface is clean and dry before bonding for maximum adhesive contact. Follow applicable NEC guidelines and equipment manufacturer requirements when using conductive tape in electrical enclosures.

Technical Specifications

• Tape Thickness: 2.6 mil
• Width: 0.75 inches
• Length: 18 yards
• Adhesive Type: Acrylic
• Backing Material: Tin-plated copper foil
• Voltage Rating: 600 volts (dry)
• Temperature Range: -40 to 266 degrees F (-40 to 130 degrees C)
• Flame Rating: Flame retardant
• Unit of Measure: Roll
• Weight: 5.06 pounds
• Certifications: UL Listed, RoHS 2011/65/EU Compliant

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000132708
