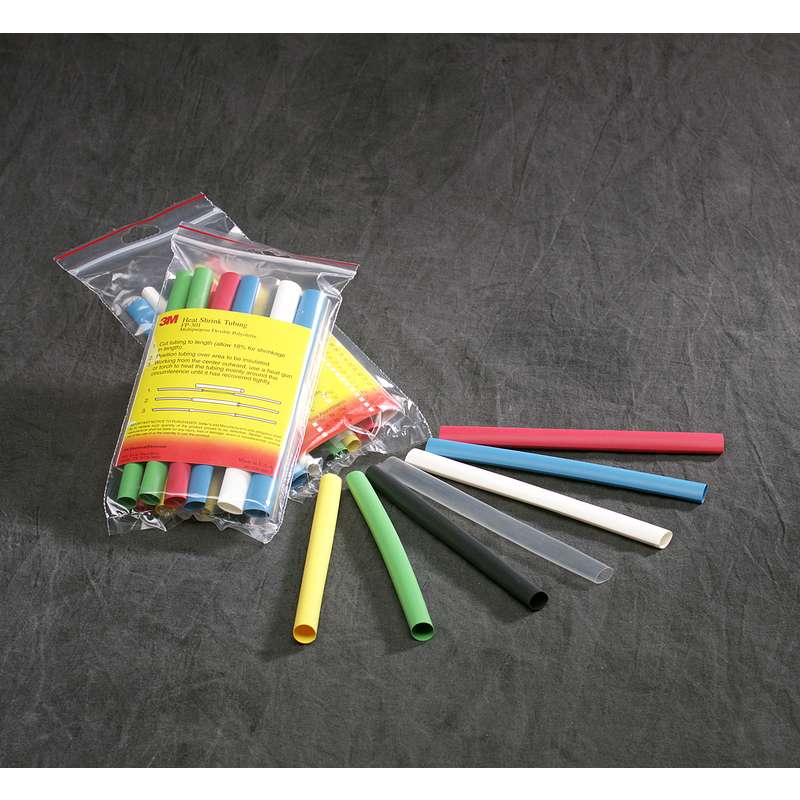

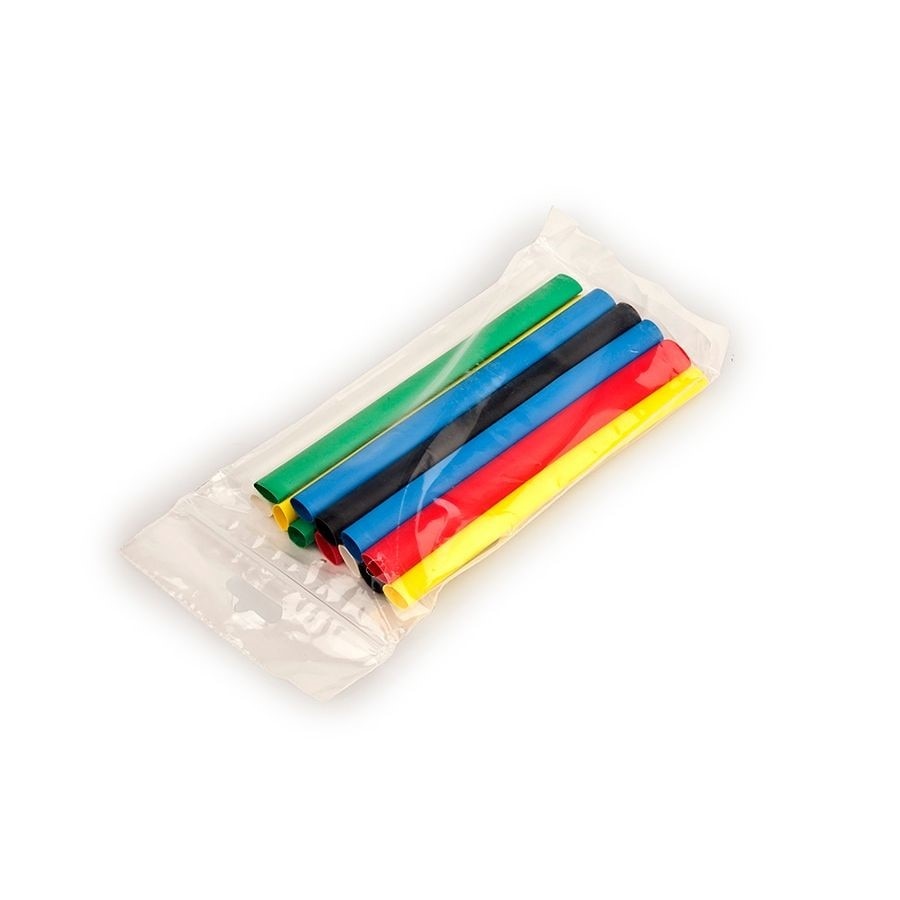

3M 7000132600 Heat Shrink Sleeve 1/8 in 6 in Polyolefin 28pc

Product Description

The 3M 7000132600 is a polyolefin heat shrink sleeve designed for insulating, bundling, and protecting wires, terminals, and cable splices in electrical and low-voltage applications. With a pre-shrink inside diameter of 1/8 inch and a 2:1 shrink ratio, it reduces to a snug 0.062 inch ID when heat is applied at or above 212 degrees F. Each sleeve measures 6 inches in overall length and is available in a pack of 28 pieces spanning seven colors: Black, Blue, Clear, Green, Red, White, and Yellow. Electricians, panel technicians, and marine electrical crews rely on this tubing for color-coded circuit identification and durable conductor protection.

This heat shrink sleeve is suited for residential and commercial electrical work, control panel wiring, marine wiring harnesses, and industrial cable management. The multi-color assortment supports phase identification and circuit labeling in panel builds and field service repairs. At 6 inches per piece, individual sections can be cut to length before or trimmed after application to fit a wide range of conductor sizes and splice configurations.

Key Features

• 2:1 shrink ratio reduces inside diameter from 1/8 inch to 0.062 inch for a secure, conforming fit
• Polyolefin construction provides resistance to corrosion, solvents, fungus, splitting, and flame
• Shrink temperature of 212 degrees F allows activation with a standard heat gun
• Operating range of -67 degrees F to 275 degrees F suits harsh indoor and outdoor environments
• Seven-color assortment (Black, Blue, Clear, Green, Red, White, Yellow) enables color-coded wire identification
• Meets multiple standards including UL Recognized (File E39100), CSA Certified, RoHS Compliant, AMS3636, AMS3637, and DTL-23053/5 Class 1 and Class 2

Compatibility

Designed as a general-purpose heat shrink sleeve for small-gauge conductors, terminals, and splices where a 1/8 inch pre-shrink inside diameter and 6 inch length provide the required coverage.

Installation Notes

Installation is performed by licensed electricians or qualified technicians in accordance with NEC guidelines for conductor insulation and protection. De-energize and lock out all circuits before sleeving any conductors or terminals. Slide the sleeve over the conductor or splice before making final connections, then apply even heat along the length of the sleeve using a heat gun set to the appropriate temperature to achieve full, uniform shrinkage. Avoid open-flame torches, as uncontrolled heat can damage the tubing or adjacent components.
