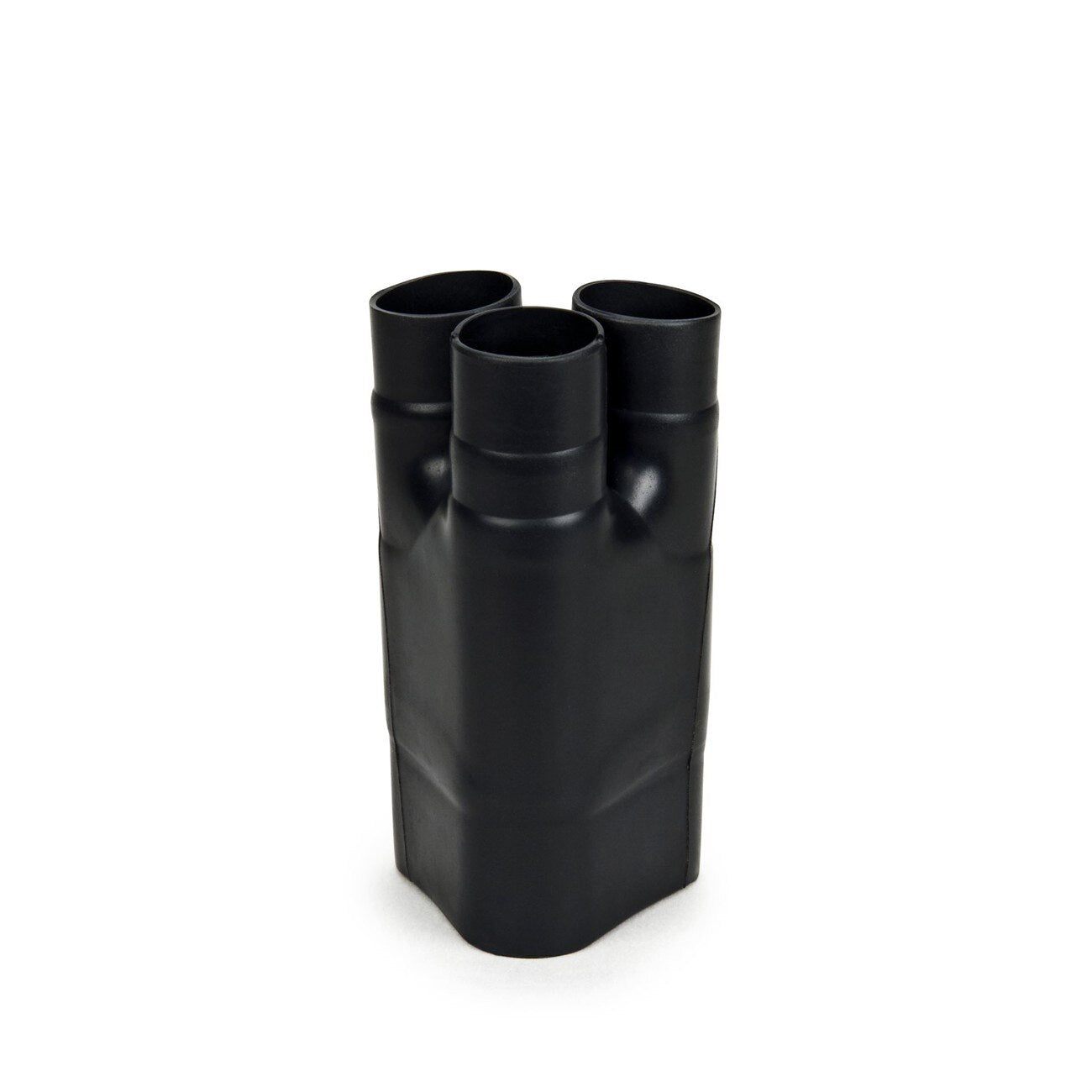

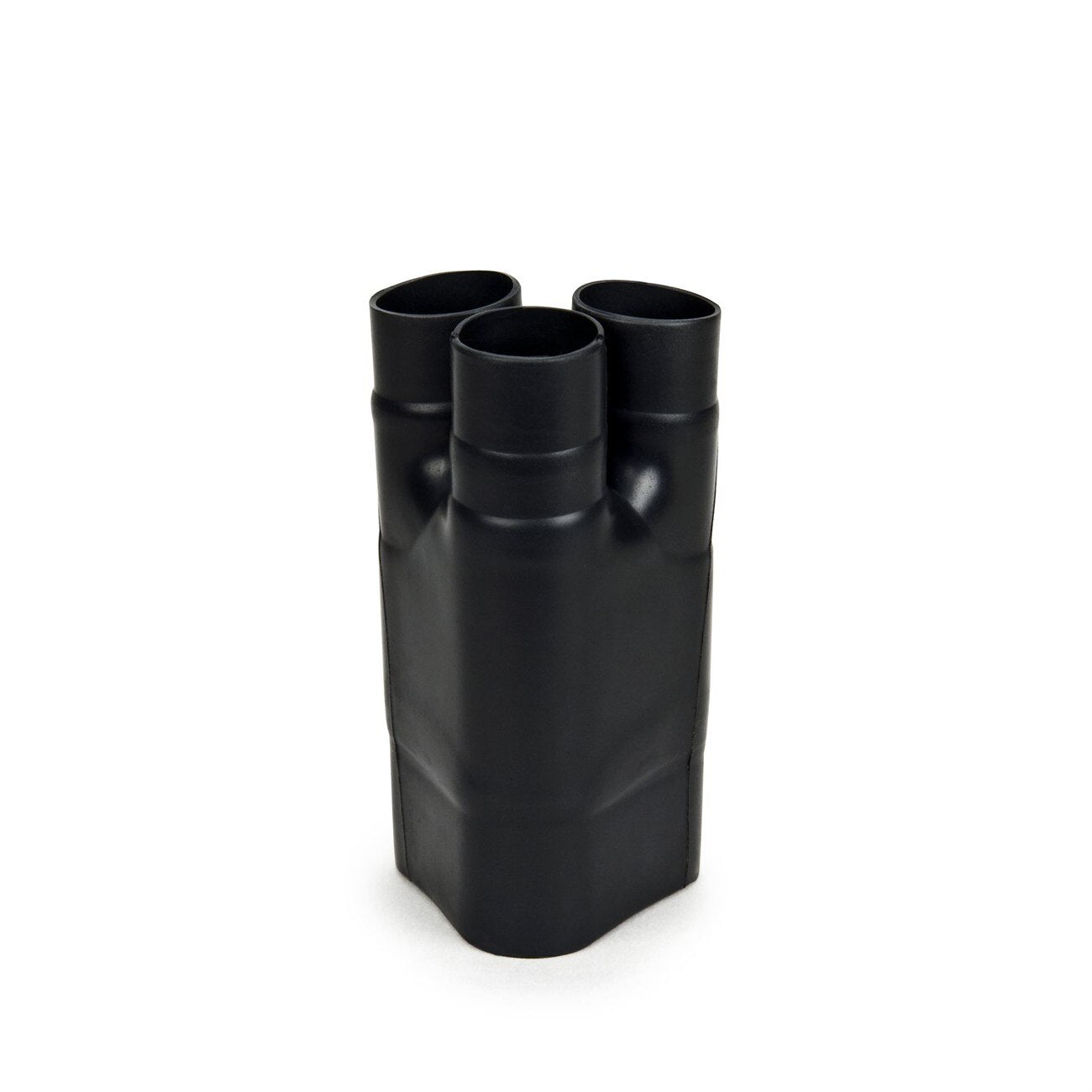

3M 7000132579 Heat Shrinkable Cable Breakout Boot

Product Description

The 3M 7000132579 is a heat shrinkable cable breakout boot designed to insulate and seal cable breakouts in multiconductor armored or sheathed cables and conduit ends. Manufactured from flame retardant, cross-linked polyolefin, this boot meets the material requirements of MIL-I-81765-1. An internal adhesive coating is applied at the factory to provide reliable environmental sealing once the boot is shrunk in place. This is a 3-way outlet configuration finished in black. Electricians and low-voltage installers rely on these boots to deliver consistent electrical and mechanical protection at cable transition points.

This boot is suited for use in industrial, commercial, and utility electrical installations where multiconductor armored or sheathed cables branch into multiple conductors. Common applications include panel terminations, junction enclosures, and conduit end treatments where environmental sealing and insulation integrity are required. The 3-way outlet design accommodates a single incoming cable splitting into three exiting conductors, making it a standard choice for branched cable assemblies in demanding environments.

Key Features

• Flame retardant, cross-linked polyolefin construction for durable mechanical and electrical protection
• Meets MIL-I-81765-1 material requirements for heat shrinkable insulation
• Factory-applied internal adhesive coating ensures reliable environmental sealing after shrink
• 3-way outlet configuration for branched multiconductor cable applications
• Black finish for standard installation identification
• Suitable for use with armored, sheathed, and conduit-terminated multiconductor cables

Compatibility

Designed for use with multiconductor armored or sheathed cables and conduit ends requiring insulated and sealed cable breakout terminations.

Installation Notes

Installation is performed by licensed electricians following applicable NEC requirements for cable termination and environmental sealing. De-energize and lock out all circuits before fitting the boot over the cable breakout. Apply heat evenly using an appropriate heat gun, working from the center outward to allow the adhesive liner to flow and create a complete environmental seal. Avoid overheating, which can degrade the polyolefin material or compromise the adhesive bond.

Technical Specifications

• Configuration: 3-Way Outlet
• Color: Black
• Material: Flame Retardant Cross-Linked Polyolefin
• Military Specification: MIL-I-81765-1
• Sealing: Internal Adhesive Coating
• Unit of Measure: Each
• Minimum Order Quantity: 1
• UPC: 00051135359976

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000132579
