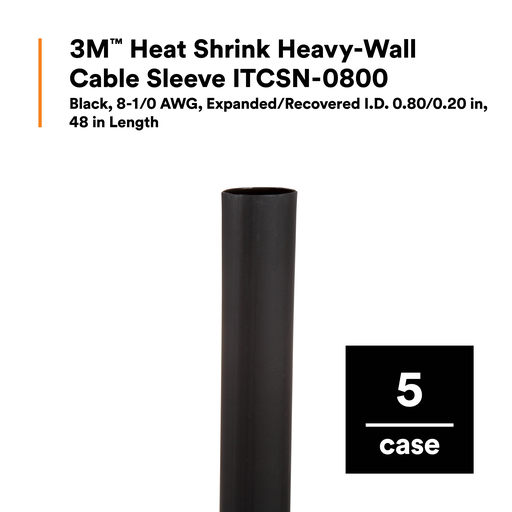

3M 7000132379 Heat Shrink Heavy-Wall Cable Sleeves 1 kV (48 in Length) Replacement MPN

Product Description

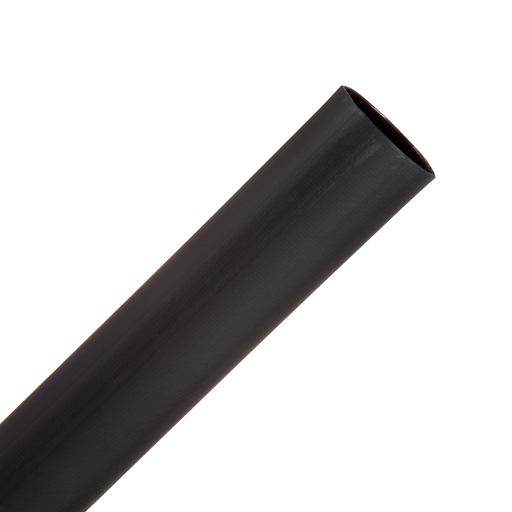

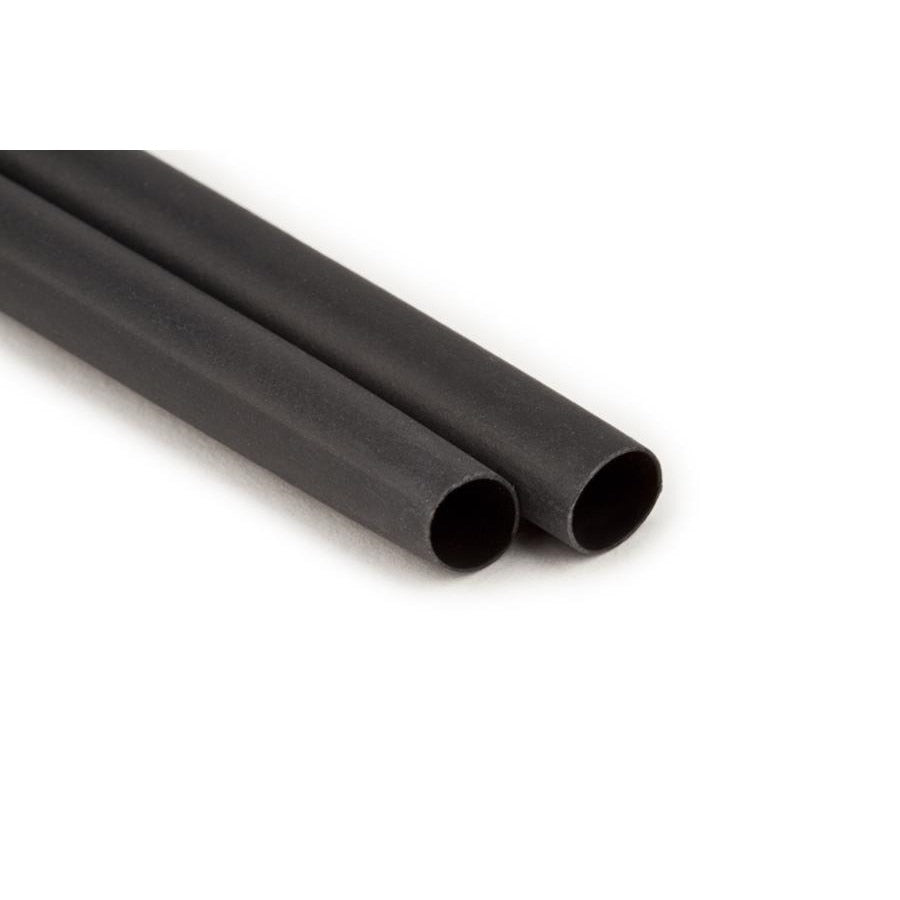

The 3M Heat Shrink Heavy-Wall Cable Sleeves, MPN 7000132379, are designed for high voltage electrical applications. These sleeves are ideal for insulating electrical splices, connections, and terminations while offering mechanical protection. They are suitable for cables rated up to 1 kV and come in a length of forty-eight inches, providing ample coverage for your projects.

• Cross-linked polyolefin material for durability.
• 3:1 shrink ratio for effective sealing.
• Factory-applied adhesive for reliable bonding.

Product Highlights

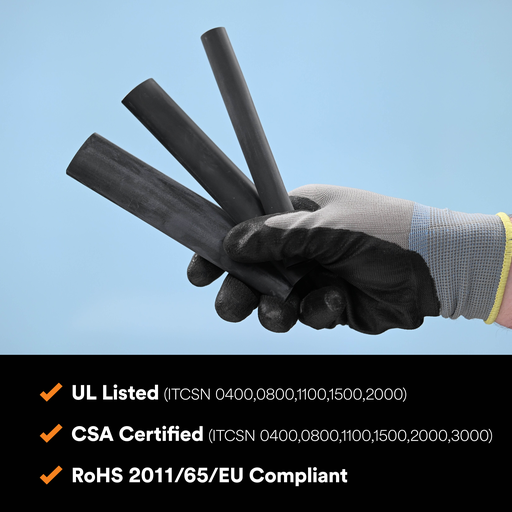

These sleeves are fast shrinking, split resistant, and can withstand harsh environmental conditions. They are UL Listed and suitable for a wide range of electrical applications.

Product Information

Standard Information

• Brand: 3M
• MPN: 7000132379

Technical Specifications

• Material: Polyolefin
• Dielectric Strength: 500 V/mil
• Shrink Ratio: 3 to 1
• Voltage Rating: 1 kV
• Tensile Strength: 2400 lb/in
• Max Operating Temperature: 110.0 degrees C
• Operating Temperature: -55 degrees C
