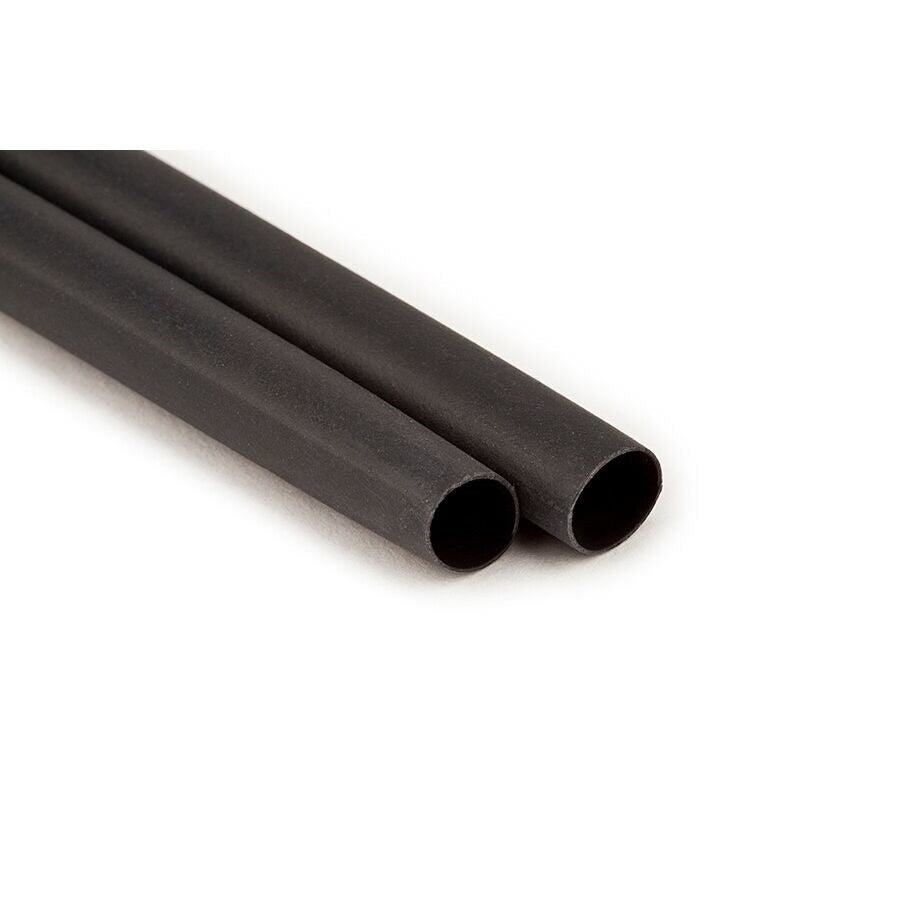

3M 7000132375 Heat Shrink Heavy-wall Cable Sleeve

Product Description

The 3M 7000132375 is a heavy-wall, heat-shrinkable cable sleeve designed for electrical splices, connections, and terminations in demanding installations. Constructed from cross-linked polyolefin, this sleeve measures 12 inches in length and ships as a cut-to-length piece with a factory-applied adhesive and sealant lining. The dual-wall construction provides both mechanical protection and an environmental seal when heat is applied. Rated to 1 kV and UL Listed 486D for 600V service, it is suited for licensed electricians working on power distribution, control wiring, and cable repair applications where moisture and mechanical protection are required.

This sleeve is used in residential, commercial, and light industrial electrical work wherever splices and terminations need durable insulation and environmental protection. The cross-linked polyolefin material delivers high split resistance and fast shrink response, reducing installation time. It is appropriate for direct burial or exposed cable applications requiring a sealed, permanent connection. The 12-inch length allows field trimming to exact requirements without waste.

Key Features

• Cross-linked polyolefin construction — highly split resistant and fast shrinking
• Factory-applied adhesive and sealant lining provides a moisture-resistant environmental seal
• Rated to 1 kV; UL Listed 486D for 600V service (File No. E102356)
• CSA rated for Canadian installations
• Cut-to-length format — 12 inches per sleeve, field-trimmable
• Suitable for splices, connections, and terminations requiring mechanical and environmental protection

Compatibility

Designed as a heavy-wall heat-shrink sleeve for electrical cable splices, terminations, and connections rated up to 600V in residential, commercial, and light industrial wiring applications.

Installation Notes

Installation is performed by licensed electricians. De-energize and lock out the circuit before working on any splice or termination. Slide the sleeve over the prepared cable end or splice before making connections, then apply uniform heat with an appropriate heat gun — avoid open flame, which can damage the polyolefin material or prevent an even shrink. Verify the adhesive has flowed from both ends of the sleeve to confirm a complete environmental seal before returning the circuit to service.

Technical Specifications

• Length: 12 inches
• Material: Cross-linked polyolefin with factory-applied adhesive sealant
• Voltage Rating: 1 kV maximum; 600V UL Listed
• Listing: UL 486D, File No. E102356
• Certification: CSA
• Weight: 0.34 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 10
• UPC: 00054007088998

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000132375
