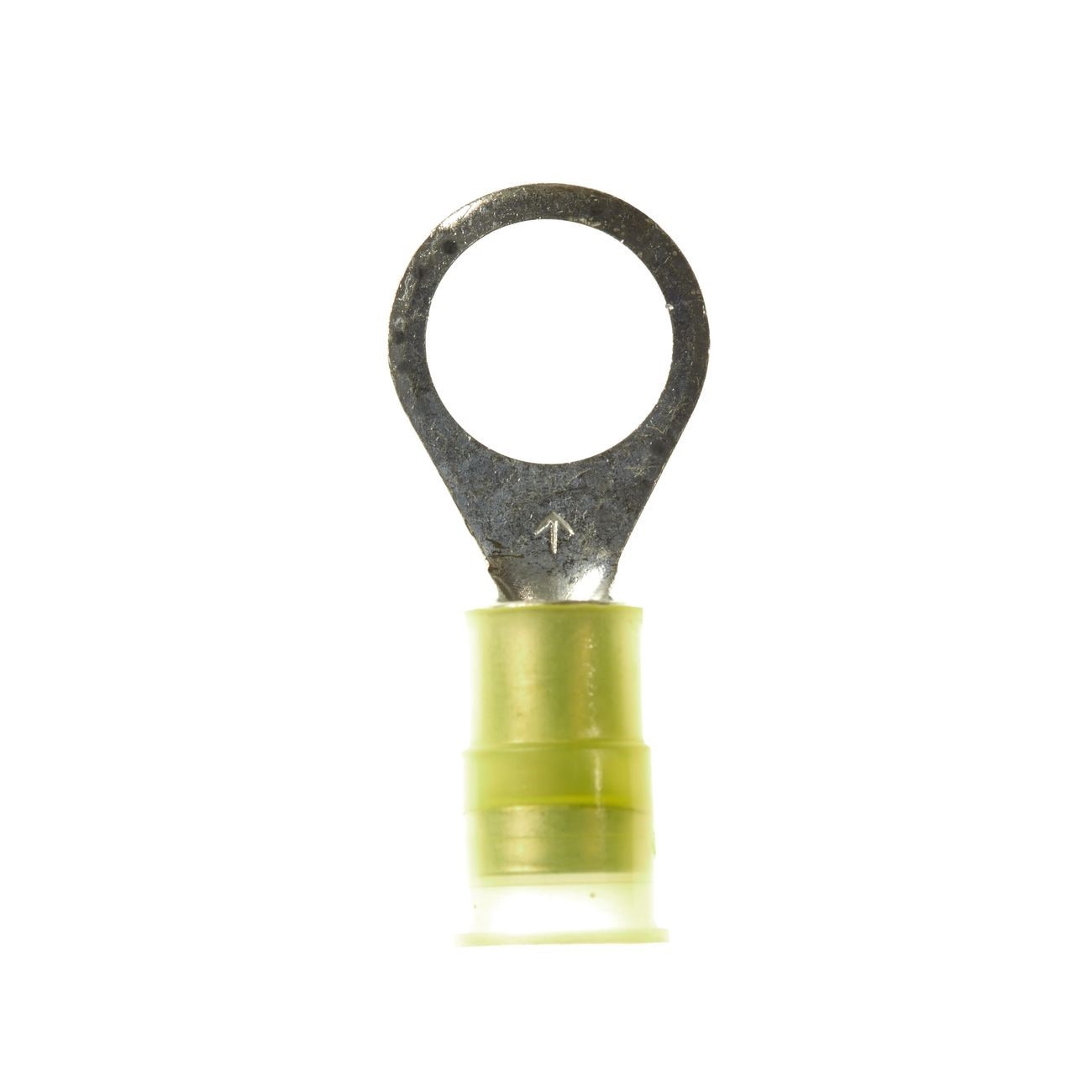

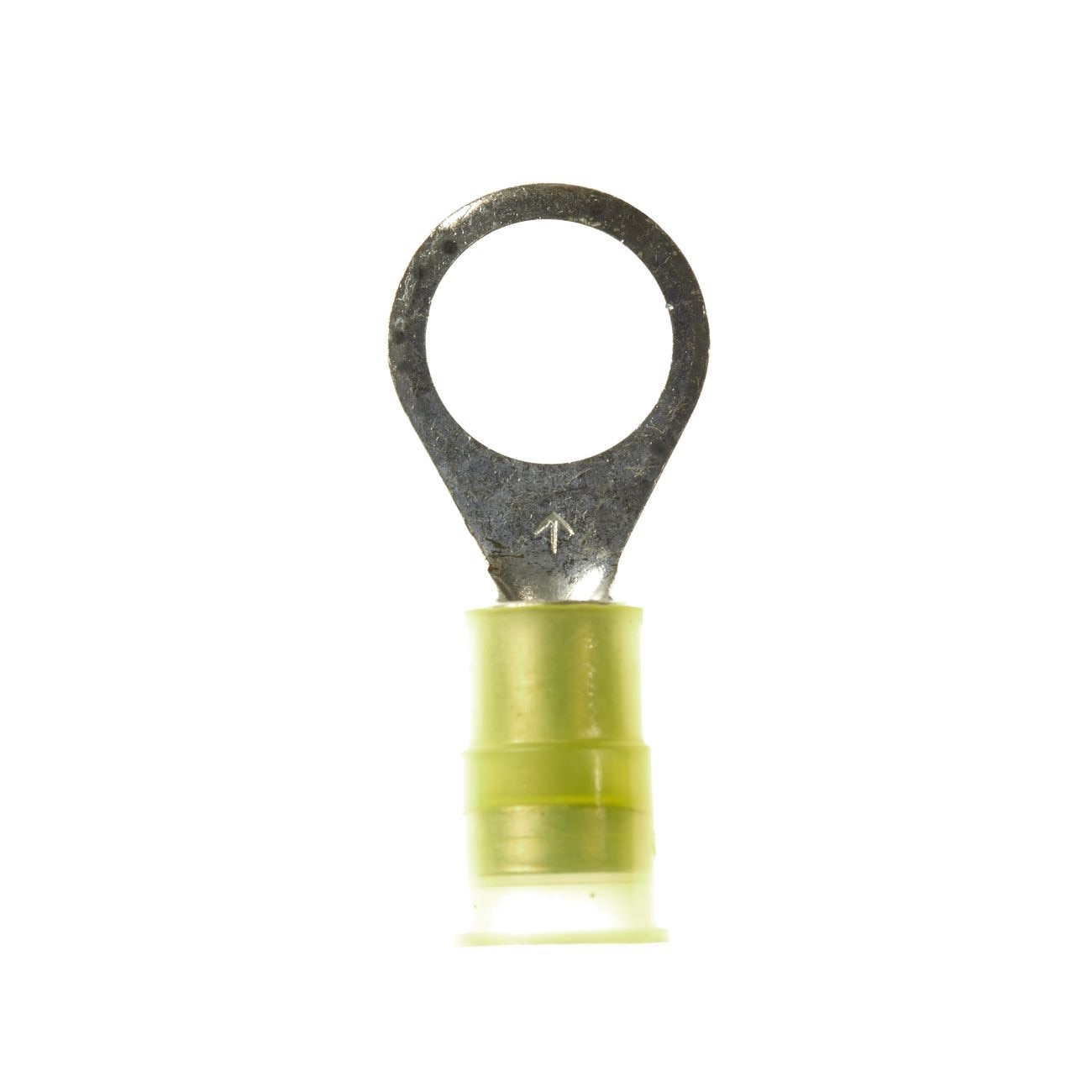

3M 7000132264 Ring Tongue Terminal 12-10 Awg 3/8 Inch Stud

Product Description

The 3M 7000132264 is a ring tongue terminal designed for secure, permanent electrical connections in a wide range of wiring applications. It accepts 12-10 AWG wire and fits a 3/8 inch stud size. The ring-style tongue fully encircles the mounting stud, meaning the terminal stays on unless the mounting hardware is removed. This design makes it one of the most mechanically stable termination styles available, reducing the risk of accidental disconnection. Licensed electricians and experienced wiring technicians install this type of terminal on control panels, equipment grounds, and branch circuit terminations where connection integrity is critical.

This terminal is suited for both residential and light commercial electrical work wherever a permanent, stud-mounted connection point is required. The 12-10 AWG wire range covers common branch circuit and equipment wire gauges. It ships in a case quantity of 500, making it practical for contractors and service shops that work through ring terminals in volume on panel builds, equipment installations, or production wiring.

Key Features

• Ring-style tongue that cannot be removed without removing the mounting screw or stud hardware
• Wire range of 12-10 AWG for common branch circuit and equipment wiring gauges
• Stud size of 3/8 inch for compatibility with standard mounting hardware
• Case quantity of 500 units for high-volume wiring work
• Each unit sold individually within the case pack

Compatibility

Designed as an OEM-style ring tongue terminal for use with 12-10 AWG conductors and 3/8 inch mounting studs in standard electrical termination applications.

Installation Notes

Ring tongue terminals of this type are installed by licensed electricians following NEC guidelines. Always de-energize and lock out the circuit before terminating any conductor. Use a properly calibrated crimping tool rated for the wire gauge being terminated to ensure a secure mechanical and electrical connection. Do not solder over a crimped terminal as this can create a stress point and may void listing compliance.

Technical Specifications

• Wire Range: 12-10 AWG
• Stud Size: 3/8 inch
• Terminal Style: Ring Tongue
• Case Quantity: 500 each
• Unit Weight: 0.01 pounds
• UPC: 00054007019428

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000132264
