3M 7000132233 Aluminum Connector 6 Awg 35 Kv Gray

Product Description

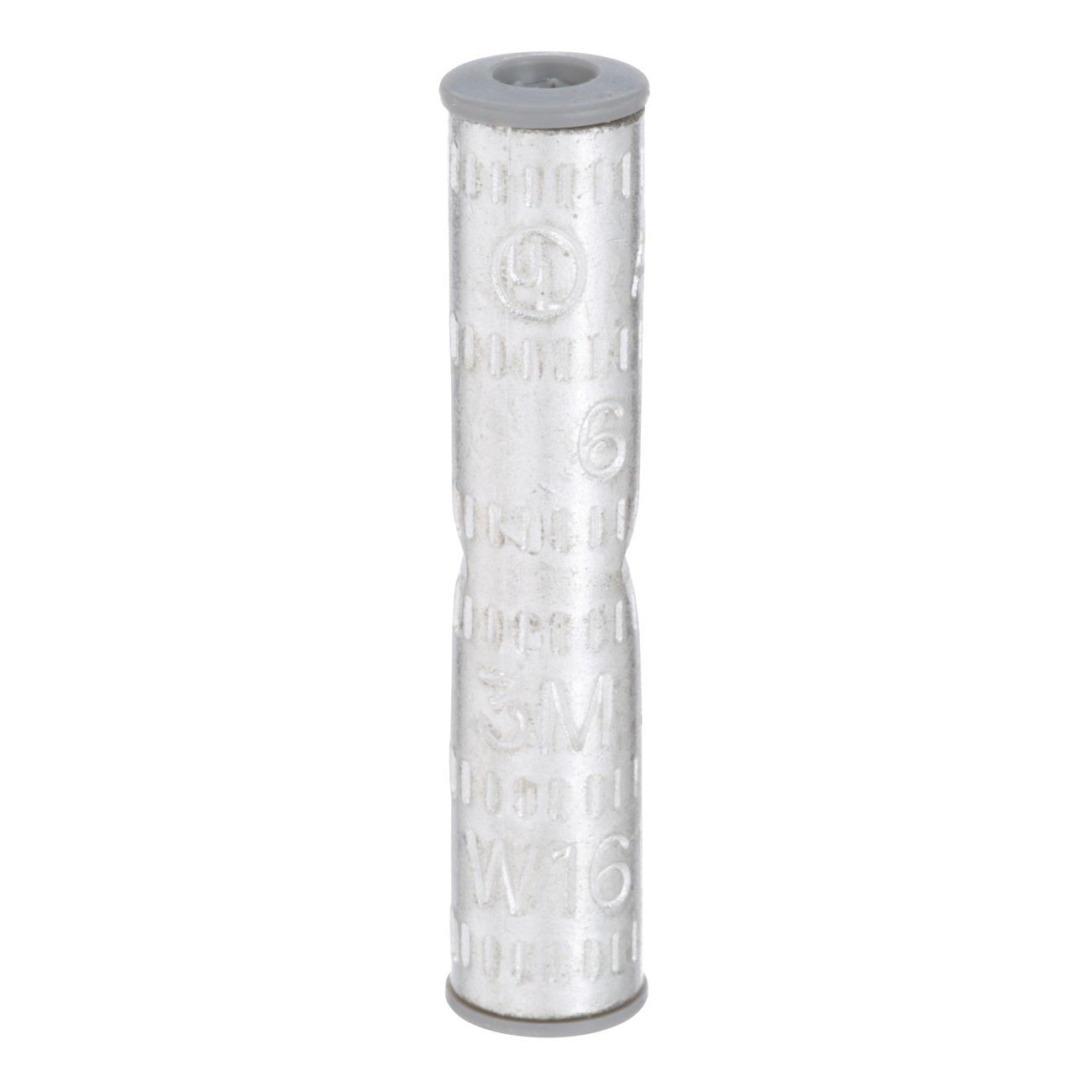

The 3M 7000132233 is a gray aluminum connector rated for use up to 35 kV, designed for splicing and terminating copper or aluminum conductors in electrical distribution and utility applications. The connector body measures 1.620 inches in length with an inner diameter of 0.200 inches and an outer diameter of 0.344 inches. A built-in contact aid in the connector barrel ensures reliable electrical contact and is compatible with poly and EPR insulations. Licensed electricians and utility linemen install this connector as part of underground or overhead medium-voltage conductor assemblies.

This connector is suited for medium-voltage electrical work where copper or aluminum conductors must be joined or terminated. The 6 AWG rating makes it appropriate for residential service entrance work, commercial distribution panels, and utility splice applications up to 35 kV. Color-coded gray end caps allow for quick visual identification during installation and inspection, reducing the chance of mismatched connections on multi-conductor jobs.

Key Features

• Rated for use up to 35 kV for medium-voltage conductor applications
• Compatible with both copper and aluminum conductors
• Built-in contact aid in the barrel is compatible with poly and EPR insulations
• Color-coded gray end caps provide fast visual identification
• Compact form factor: 1.620 inches long, 0.200 inches I.D., 0.344 inches O.D.

Compatibility

Designed for use with 6 AWG copper or aluminum conductors rated up to 35 kV. Contact aid in the barrel is compatible with poly and EPR insulation types.

Installation Notes

Installation should be performed by a qualified electrician or licensed lineman in accordance with applicable NEC requirements and local electrical codes. De-energize and verify absence of voltage on all conductors before handling or installing the connector. Follow the connector manufacturer's recommended tooling and crimping procedures to ensure a proper mechanical and electrical connection. Do not reuse a connector that has already been crimped or shows signs of physical damage.

Technical Specifications

• Conductor Size: 6 AWG
• Voltage Rating: Up to 35 kV
• Color: Gray
• Length: 1.620 inches
• Inner Diameter: 0.200 inches
• Outer Diameter: 0.344 inches
• Conductor Compatibility: Copper and Aluminum
• Insulation Compatibility: Poly, EPR
• Weight: 0.02 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 50

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000132233
