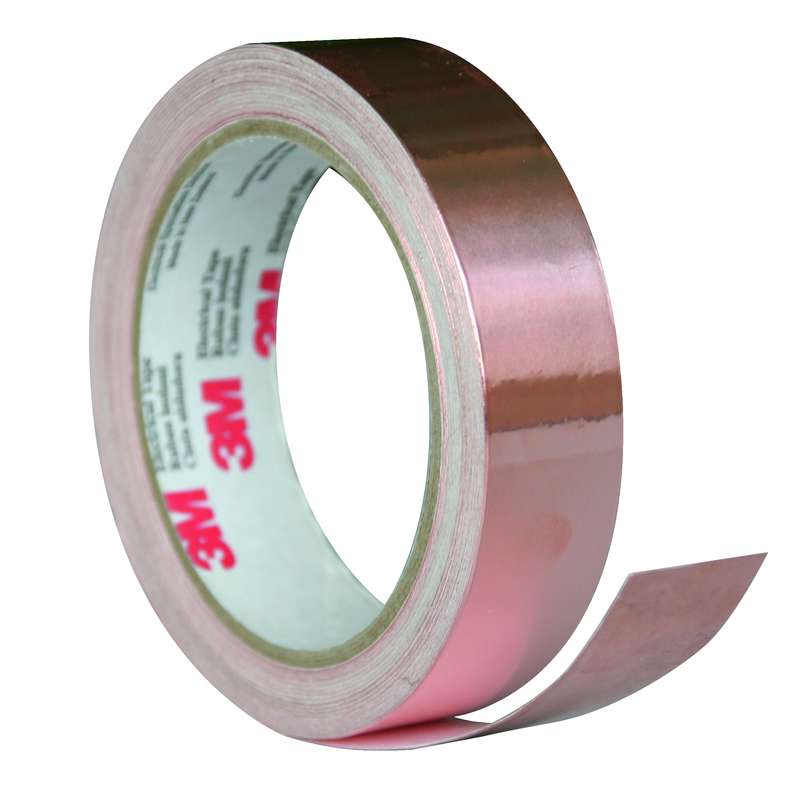

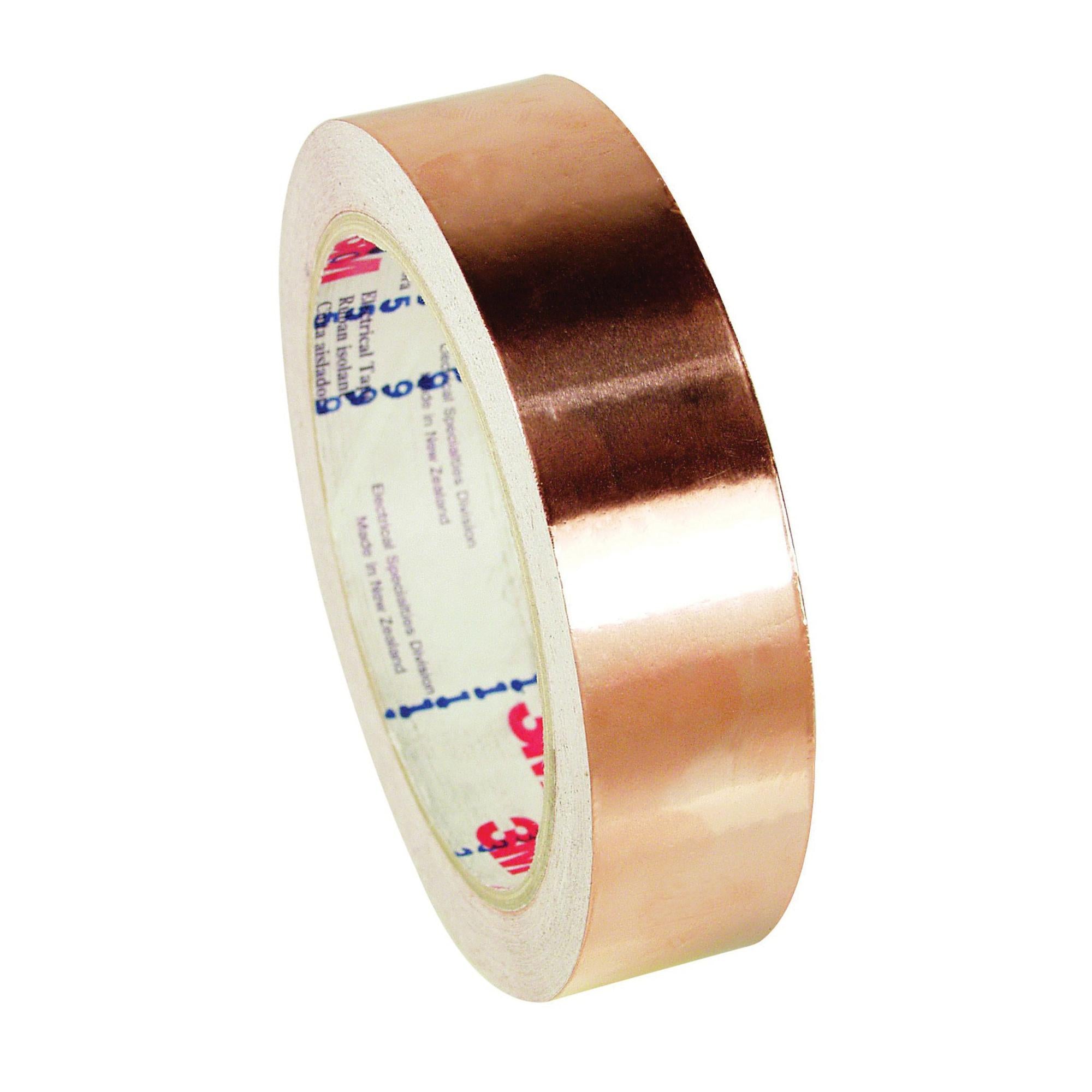

3M 7000132168 1181 Log Roll Shielding Tape, 18 yd x 1/4 in, 7000132168

Product Description

3M™ 7000132168 is a log roll shielding tape designed for effective electrical contact in various applications. This conductive adhesive tape features a copper foil backing and is suitable for grounding and EMI shielding. It is often used in electrical installations and component shielding.

• Rated for applications requiring 600 volts
• Flame-retardant and suitable for various environments
• Easy to handle with its removable liner

Product Highlights

This tape combines strong adhesion with excellent resistance to oxidation. Its unique construction ensures reliable performance in demanding conditions.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• MPN: 7000132168
• Type: Log Roll
• Width: 1/4 in
• Length: 18 yd
• Thickness: 2.6 mil
• Core Diameter: 3 in
• Backing Material: Copper Foil
• Voltage Rating: 600 V
• Adhesive Material: Acrylic
• Adhesion Strength: 35 in-oz
• Specifications Met: ASTM D1000/D3759/D3330/D4935
• Maximum Operating Temperature: 130 deg C
• Minimum Operating Temperature: -40 deg C
