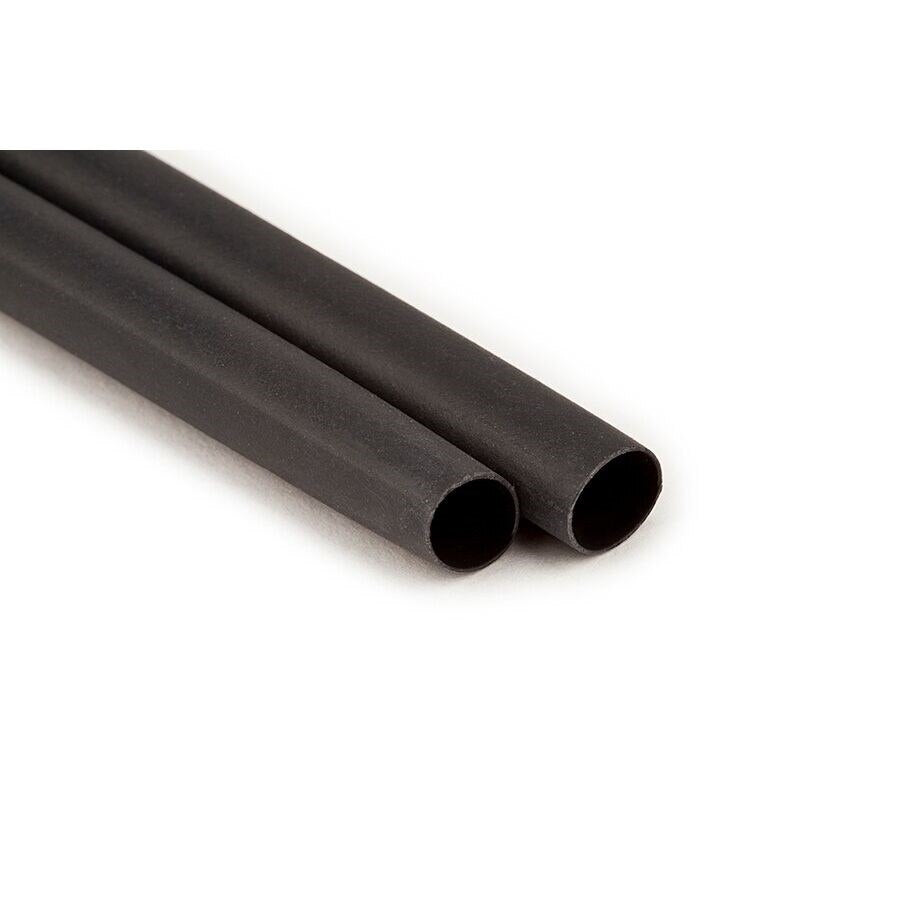

3M 7000132154 Heat Shrink Cable Sleeve 1kv 9in

Product Description

The 3M 7000132154 is a heavy-wall, heat-shrinkable cable sleeve designed for electrical splices, connections, and terminations operating at up to 1 kV. Manufactured from cross-linked polyolefin with a factory-applied internal adhesive and sealant, this sleeve delivers both mechanical protection and environmental sealing in a single installation step. At 9 inches in length, the cut-to-length design gives installers flexibility to fit a range of splice configurations. Its high split resistance and fast-shrink characteristics reduce installation time in the field. Licensed electricians and low-voltage cable technicians are the primary installers for this product.

This cable sleeve is suited for residential, commercial, and light industrial electrical work where splice protection and moisture sealing are required. Typical applications include underground or direct-burial splice protection, conduit pull-point terminations, and service-entrance cable repairs. The internal sealant flows during shrink to encapsulate the splice, blocking moisture ingress at the connection point. The 9-inch sleeve length accommodates standard in-line splice kits and butt connectors used in power distribution and branch-circuit wiring up to 1 kV.

Key Features

• Rated to 1 kV with UL Listed 486D rating for 600V service (File Number E102356)
• CSA rated for use in Canadian installations
• Cross-linked polyolefin construction provides high split resistance and durability
• Factory-applied internal adhesive and sealant delivers environmental and moisture protection without additional prep
• Fast-shrink characteristics speed up field installation
• 9-inch length is cut-to-length, accommodating a range of splice configurations

Compatibility

Designed as an OEM-style heavy-wall heat-shrink sleeve for electrical splices and terminations rated up to 1 kV in residential, commercial, and light industrial power distribution systems.

Installation Notes

Installation is performed by a licensed electrician following applicable NEC requirements for splice protection and insulation integrity. De-energize and lock out the circuit before working on any splice or termination. Apply heat evenly along the sleeve using a heat gun, working from the center outward to prevent air pockets and ensure the adhesive flows uniformly. Do not use an open flame, as uneven heat can damage the sleeve and compromise the sealant.

Technical Specifications

• Voltage Rating: 1 kV
• UL Listing: UL 486D, 600V, File E102356
• CSA Rating: Yes
• Material: Cross-linked polyolefin with internal adhesive and sealant
• Sleeve Length: 9 inches
• Weight: 0.06 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000132154
