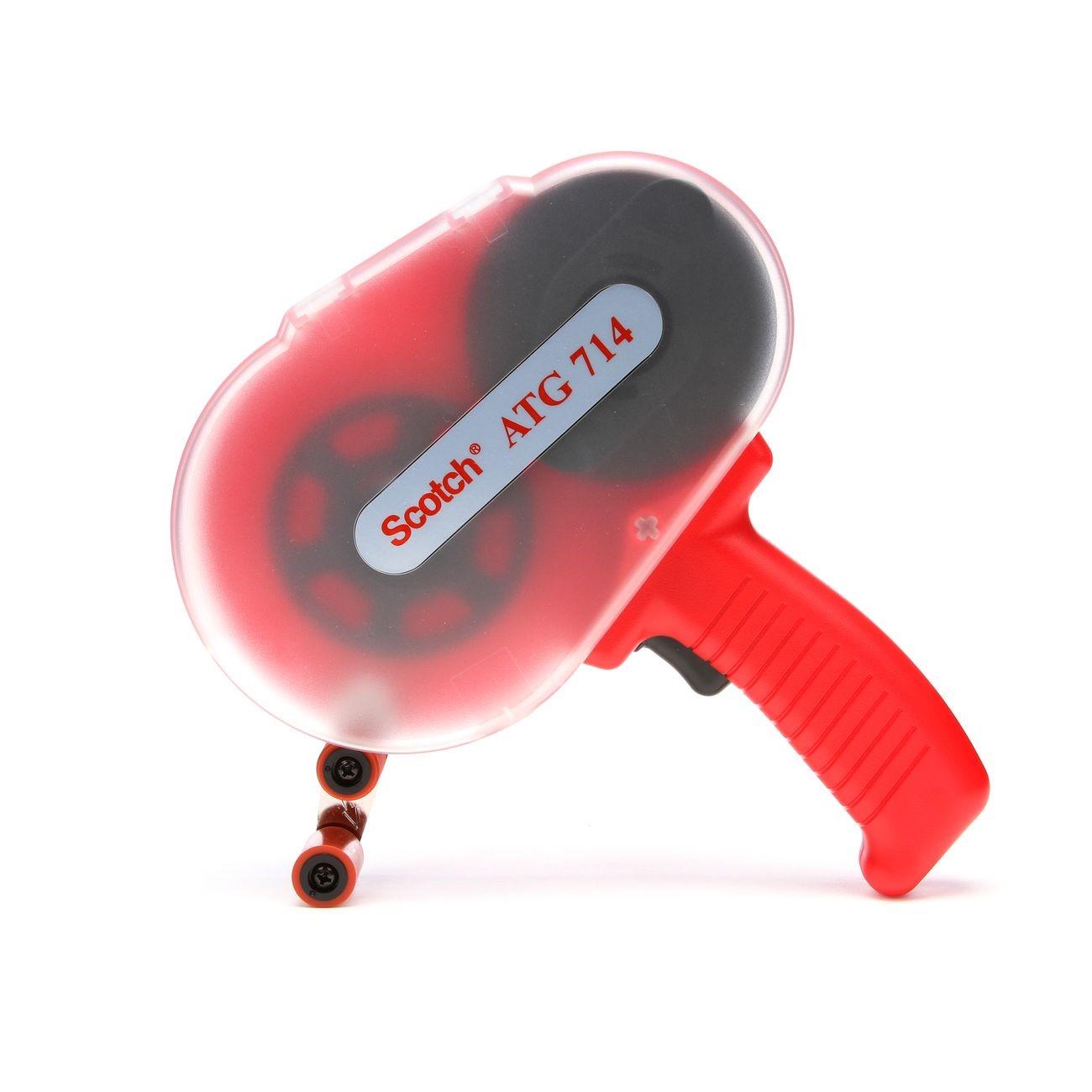

3M 7000131619 Atg 714 Adhesive Tape Applicator

Product Description

The 3M 7000131619 is a handheld adhesive transfer tape applicator designed for use with 1/4-inch wide rolls of ATG tape. The applicator feeds tape and simultaneously removes and rewinds the liner in a single pass, eliminating adhesive mess and the need for cleanup. Covered gears reduce the chance of jams during operation, and a transparent cover lets the user monitor remaining tape at a glance. The trigger mechanism delivers quick, controlled tape placement with a single finger touch. Each roll capacity is up to 60 yards. This tool is commonly used by glaziers, sign fabricators, print shops, and other trades that rely on clean, precise adhesive bonding.

The 7000131619 applicator is suited for light assembly, mounting, splicing, and bonding tasks where consistent adhesive application is required without liquid adhesives or double-coated foam tape. It is used across commercial and industrial settings including print production, packaging, display fabrication, and general shop work. The 1/4-inch format is a standard width for fine detail work and tight bonding areas.

Key Features

• Simultaneous tape application and liner rewind in one motion
• Covered gears minimize applicator jams during use
• Transparent cover allows visual check of remaining tape supply
• Holds up to 60 yards of ATG tape per load
• Finger-trigger mechanism enables controlled, single-handed application
• No adhesive mess or cleanup required after use

Compatibility

Designed for use with 1/4-inch wide rolls of ATG adhesive transfer tape. Verify roll width and core size before loading.

Installation Notes

Load tape rolls according to the thread path indicated on the applicator body. No power tools or trade licensing is required for standard operation. When reloading, ensure the liner is properly engaged with the rewind mechanism before use to prevent misfeeds. Store the applicator away from extreme heat and direct sunlight to preserve tape adhesive integrity.

Technical Specifications

• Compatible Roll Width: 1/4 inch
• Roll Capacity: 60 yards per load
• Weight: 1.06 pounds
• Unit of Measure: Each
• UPC: 00021200461613

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000131619
