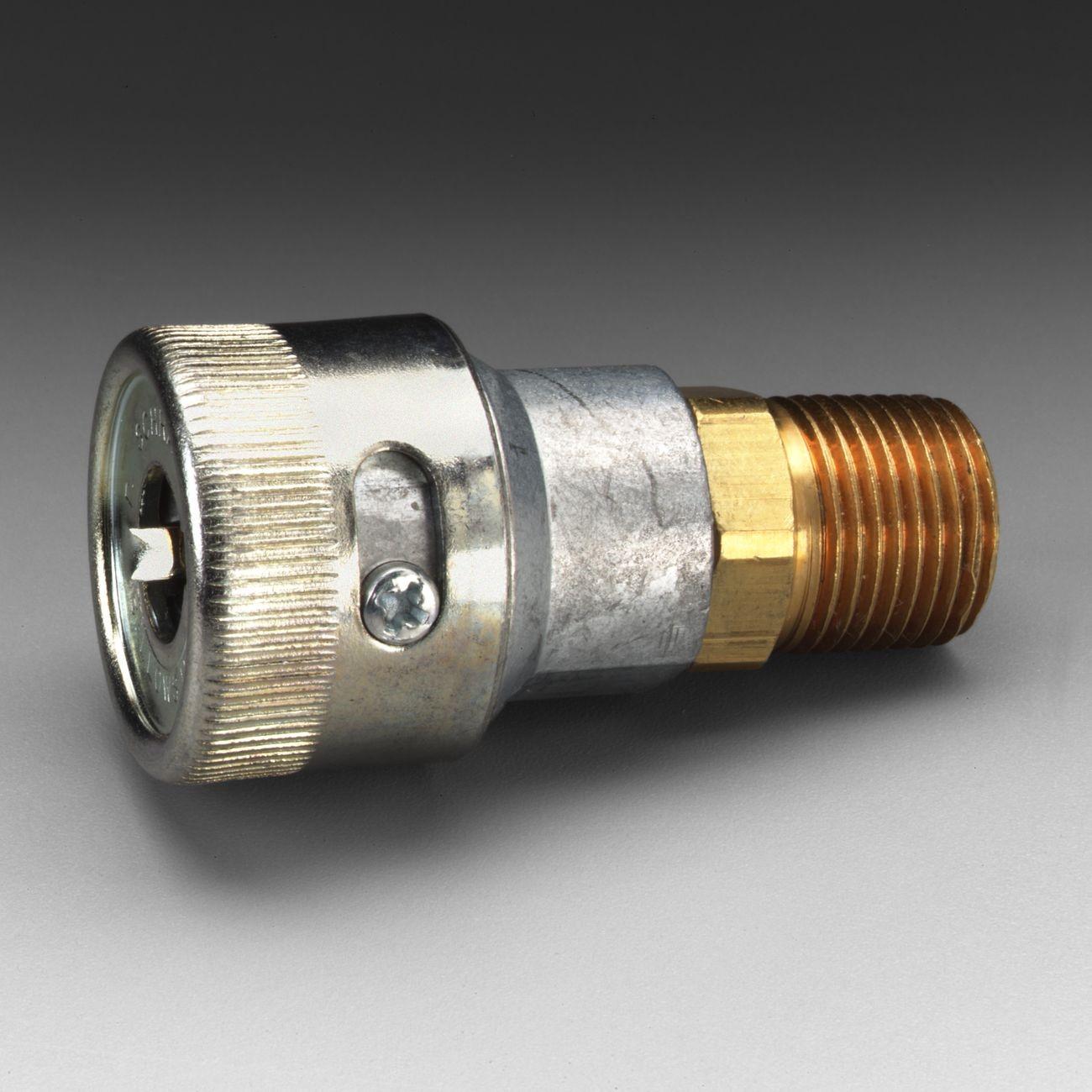

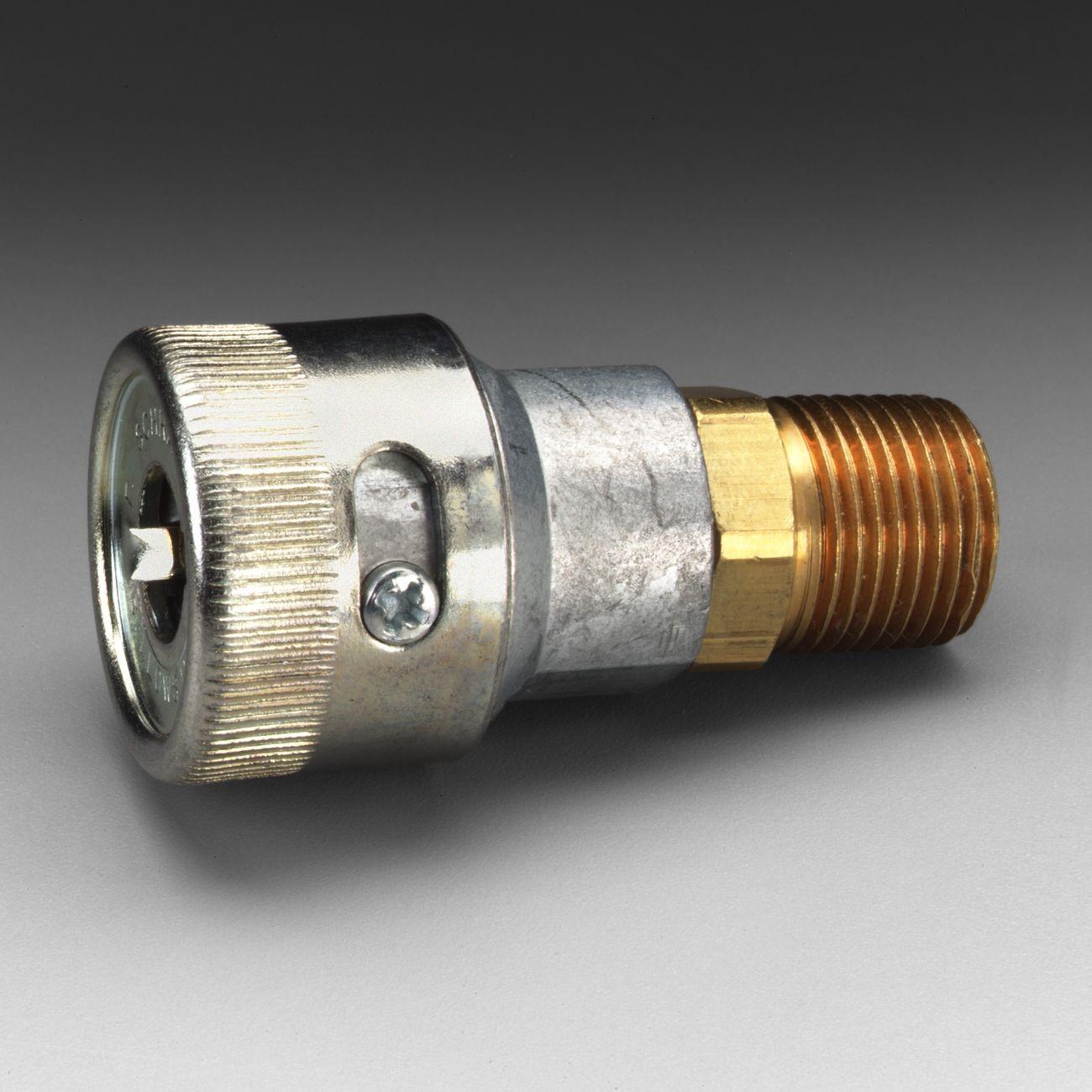

3M 7000130788 Schrader Twist Lock Socket 3/8 Inch Mpt

Product Description

The 3M 7000130788 is a high-pressure Schrader-style twist lock socket designed for use in compressed air filtration and regulation systems. With a 1/4 inch body size and 3/8 inch male pipe thread (MPT) connection, this fitting provides a secure, tool-free disconnect point in compressed air lines. It is engineered as a component-level replacement or spare for panel-mounted air preparation assemblies used in industrial and finishing environments. Plumbers, pipefitters, and industrial maintenance technicians install this type of fitting during system assembly or scheduled maintenance of compressed air panels.

This socket is intended for use with the 3M Compressed Air Filter and Regulator Panel W-2806. It suits applications where a reliable high-pressure twist lock connection is required at the panel inlet or service port. Typical installations include spray finishing booths, respiratory air supply systems, and other industrial compressed air setups where panel-mount air preparation equipment is specified. The MPT thread makes it compatible with standard pipe thread fittings common in these environments.

Key Features

• High-pressure rated Schrader-style twist lock design for secure, tool-free connection and disconnection
• 3/8 inch MPT thread for compatibility with standard pipe thread fittings
• 1/4 inch body size suited for panel-mount compressed air components
• Designed as a direct component fit for the 3M W-2806 Compressed Air Filter and Regulator Panel
• Minimum order quantity of 1 unit, sold by case UOM

Compatibility

Designed for use with the 3M Compressed Air Filter and Regulator Panel W-2806. Suitable for compressed air systems requiring a 3/8 inch MPT high-pressure twist lock socket connection.

Installation Notes

This fitting is installed by qualified pipefitters or industrial maintenance technicians. Before servicing or replacing any compressed air fitting, depressurize the system completely and isolate the air supply at the shutoff valve. Apply thread sealant appropriate for compressed air service to the MPT threads before installation. Follow applicable facility and local codes governing compressed air system assembly and maintenance.

Technical Specifications

• Body Size: 1/4 inch
• Thread Type: 3/8 inch MPT (Male Pipe Thread)
• Connection Style: Schrader Twist Lock
• Pressure Rating: High Pressure
• UPC: 50051138214789

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000130788
