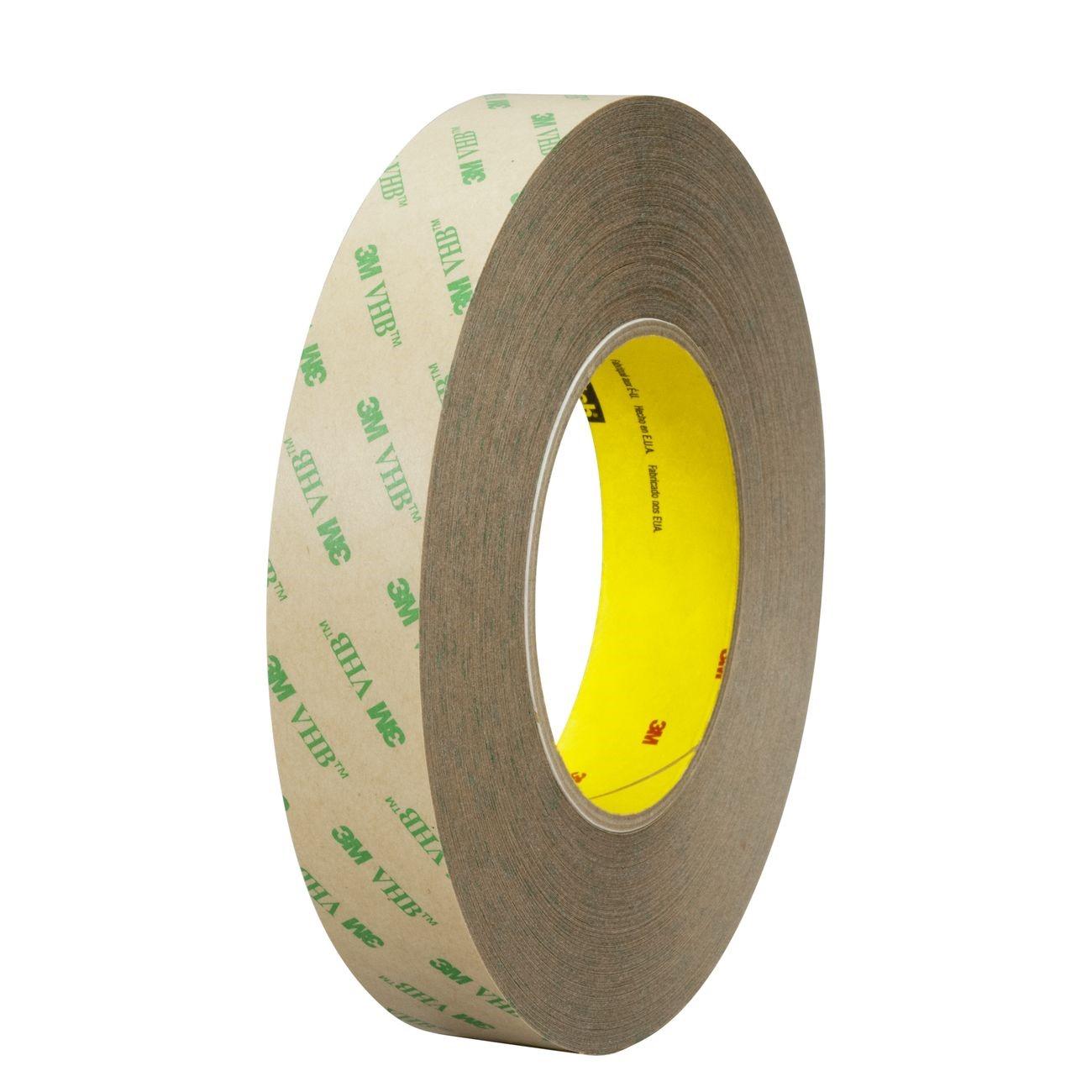

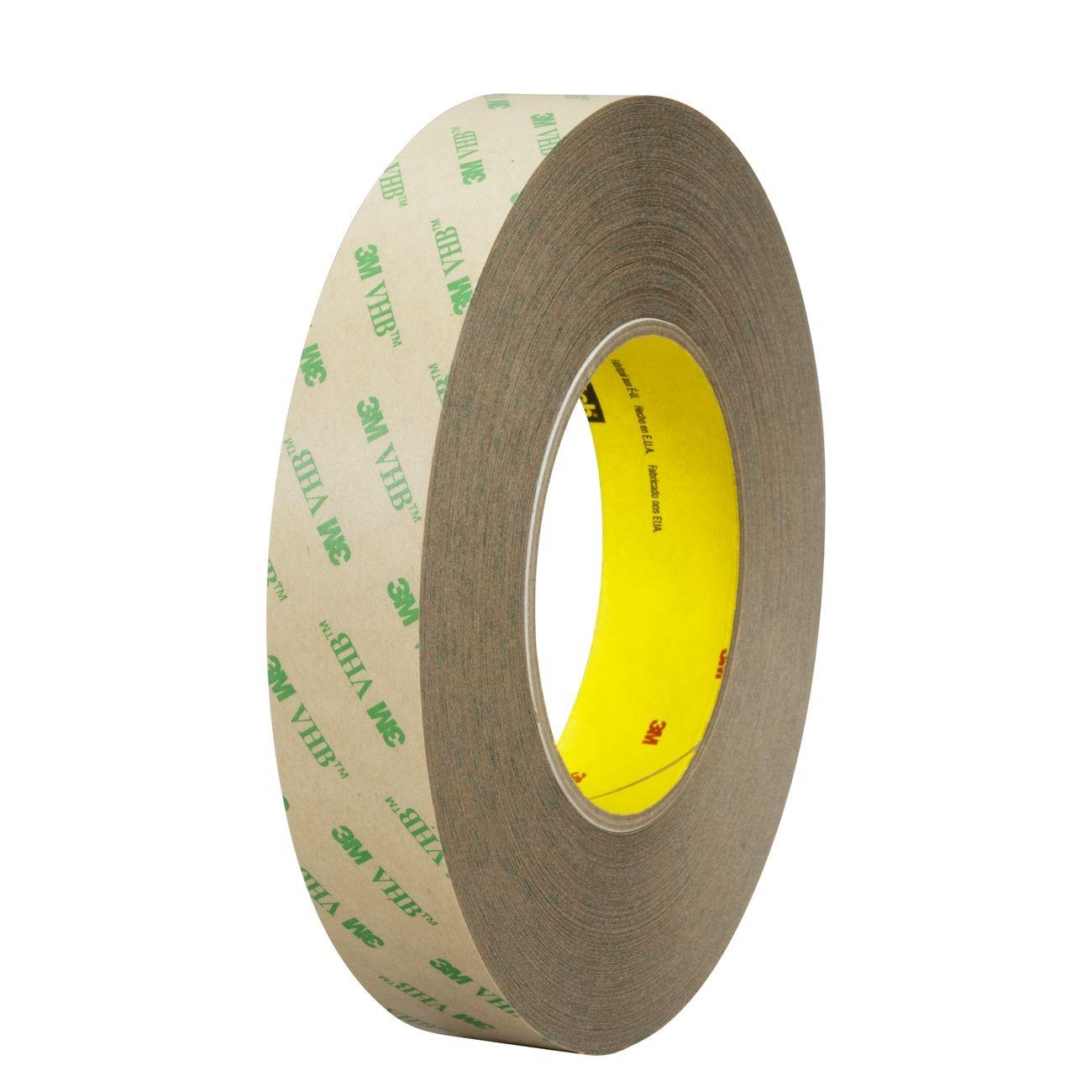

3M 7000125220 Vhb F9469PC Adhesive Transfer Tape 4 in 5 Mil

Product Description

The 3M 7000125220 is a transparent, double-sided VHB adhesive transfer tape designed for high-strength bonding across a wide range of industrial and commercial applications. Built on 3M High Performance Acrylic Adhesive 100MP at a 5.0 mil (0.13 mm) thickness, it delivers exceptional holding power with a thin, low-profile bond line. The tape conforms well to irregular surfaces and is resistant to chemicals, UV exposure, and solvents. A 58-pound polycoated kraft paper liner protects the adhesive before application. This tape is commonly installed by maintenance technicians, fabricators, and assembly professionals requiring a durable, clean alternative to mechanical fasteners.

This tape is suited for both indoor and outdoor applications where a permanent, high-strength adhesive bond is needed without the bulk of foam core tapes. It performs in environments with elevated temperatures, making it appropriate for use in light manufacturing, signage, panel bonding, and general industrial assembly. The 4-inch roll width accommodates larger surface areas and reduces the number of passes needed during application, improving installation efficiency on wide substrates.

Key Features

• 5.0 mil (0.13 mm) VHB acrylic adhesive transfer tape with a thin, transparent profile
• Short-term temperature tolerance up to 500 degrees F (260 degrees C)
• Operating temperature tolerance up to 300 degrees F (149 degrees C)
• Resistant to chemicals, UV light, and solvents for long-term durability
• Conforms to varied indoor and outdoor surfaces and substrates
• 58-pound polycoated kraft paper liner printed with VHB branding for easy identification

Compatibility

Designed as an OEM-style replacement and general-use adhesive transfer tape suitable for industrial bonding, panel assembly, and surface-mounting applications where a high-strength acrylic adhesive is specified.

Installation Notes

Surface preparation is critical before application — clean, dry, and degrease all bonding surfaces for maximum adhesion. Apply firm, even pressure across the full tape width to ensure full contact between the adhesive and the substrate. Allow adequate dwell time before subjecting the bond to full load. No special tools are required, but a roller or squeegee is recommended for consistent pressure on larger surfaces.

Technical Specifications

• Adhesive Type: High Performance Acrylic Adhesive 100MP
• Tape Thickness: 5.0 mil (0.13 mm)
• Width: 4 inches
• Color: Transparent
• Construction: Double-sided transfer tape
• Liner: 58-pound polycoated kraft paper
• Short-Term Temperature Tolerance: 500 degrees F (260 degrees C)
• Operating Temperature Tolerance: 300 degrees F (149 degrees C)
• Unit of Measure: Roll
• Package Weight: 6 pounds
• Package Length: 12.8 inches
• Package Width: 6.6 inches
• Package Height: 15.3 inches
• UPC: 021200841489

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000125220
