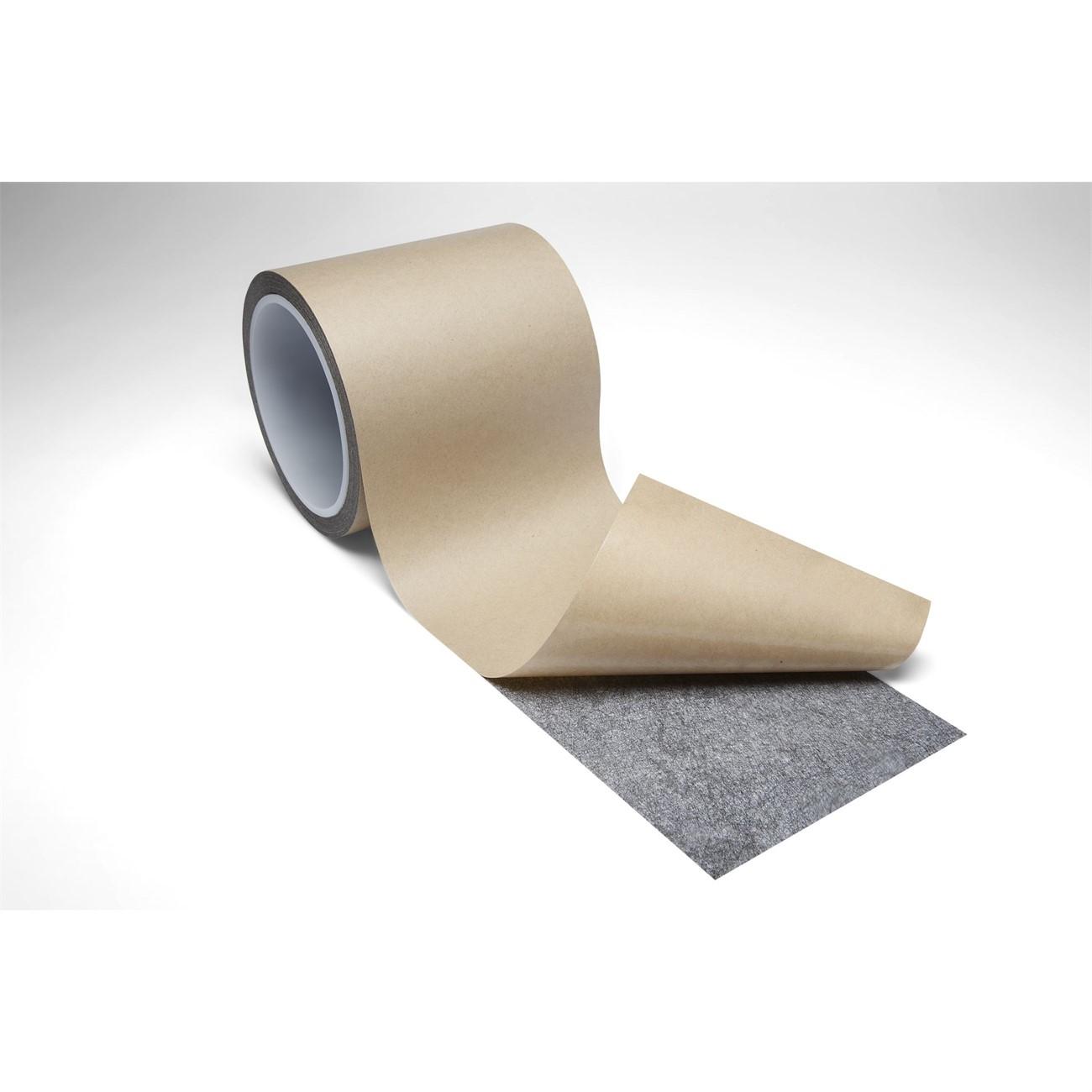

3M 7000123914 Electrically Conductive Tape 9712 1 in X 36 Yd

Product Description

The 3M 7000123914 is an isotropically conductive, double-sided pressure-sensitive tape sold under the 9712 product line. The tape uses a 3M adhesive loaded with conductive fibers, delivering conductivity across all three axes — X, Y, and Z — simultaneously. This construction gives the tape both reliable mechanical adhesion and consistent electrical performance in a single layer. It ships as a 1-inch wide by 36-yard roll weighing 0.67 pounds. Electricians, electronics technicians, and EMI shielding specialists use this tape in the fabrication and assembly of shielded enclosures, electronic devices, and electrical cabinets.

This tape is suited for attaching EMI shields to electronic and electrical devices in both commercial and industrial settings. It is compatible with many types of foil laminate shields, including aluminum/PVC and copper/PVC laminates, allowing technicians to build customized shielding solutions. It can also be used to attach conductive fabric or foam core EMI gaskets to electronic cabinetry. Typical applications include panel assembly, enclosure bonding, and gasket attachment where a pressure-sensitive, electrically conductive interface is required without fasteners or soldering.

Key Features

• Isotropic XYZ-axis conductivity through conductive fiber-loaded adhesive
• Double-sided design provides adhesion and electrical contact in one layer
• Compatible with aluminum/PVC and copper/PVC foil laminate shields
• Suitable for attaching conductive fabric and foam core EMI gaskets to cabinetry
• Pressure-sensitive application — no heat or soldering required
• 1-inch width by 36-yard roll format for flexible, job-site cutting

Compatibility

Compatible with aluminum/PVC and copper/PVC foil laminate shields, as well as conductive fabric and foam core EMI gaskets used in electronic cabinetry and device shielding assemblies.

Installation Notes

Installation is typically performed by electronics technicians or EMI shielding specialists during device assembly or enclosure fabrication. Power down all equipment before applying tape to energized or sensitive electronic assemblies. Ensure mating surfaces are clean, dry, and free of oils or oxidation before pressing the tape into place to achieve full adhesive contact. Cut tape to length using a straight blade or scissors — no special tooling is required.

Technical Specifications

• Width: 1 inch
• Length: 36 yards
• Weight: 0.67 pounds
• Unit of Measure: Roll
• UPC: 00021200461835

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123914
