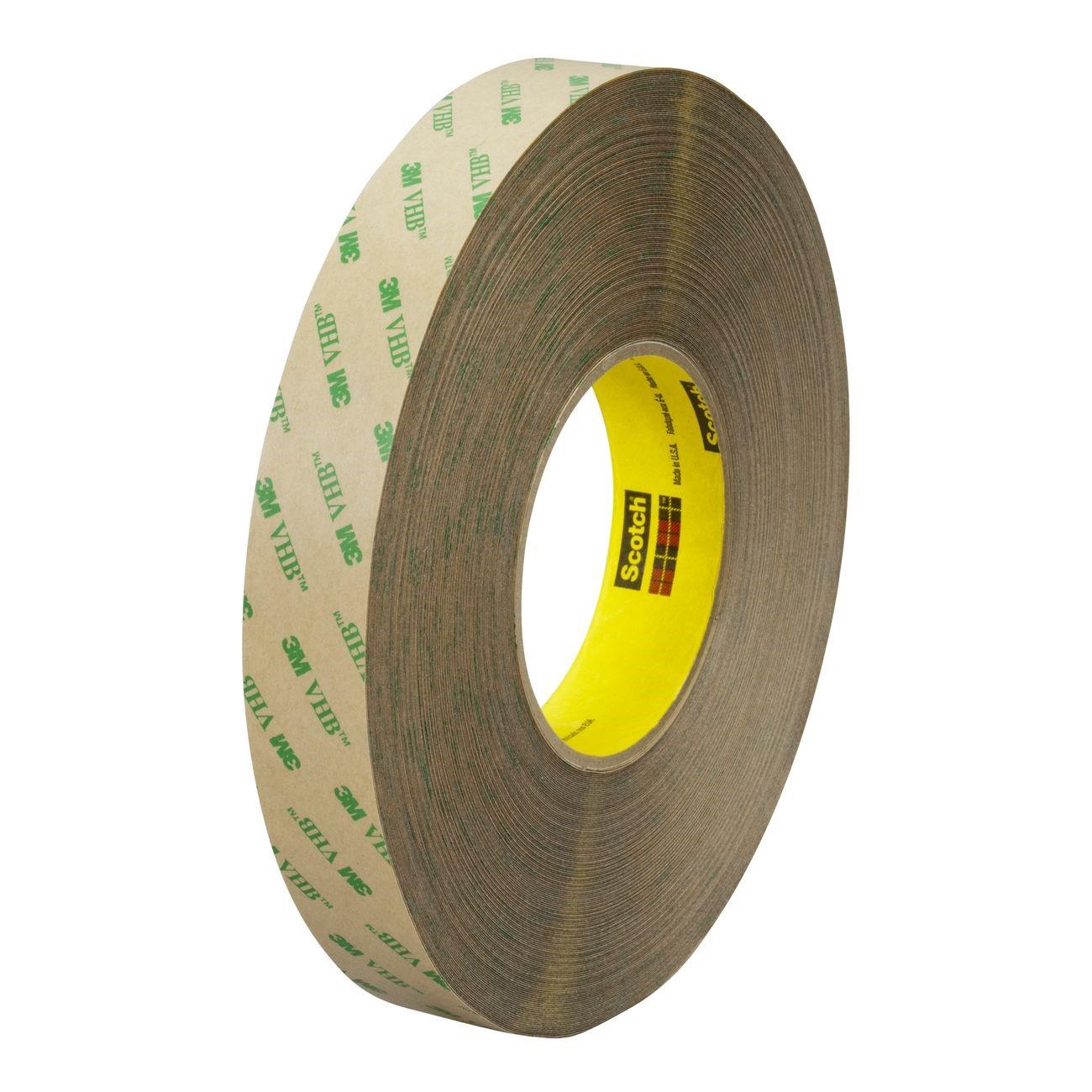

3M 7000123828 Adhesive Transfer Tape 1.5 in Acrylic 10 Mil

Product Description

The 3M 7000123828 is a 10 mil acrylic adhesive transfer tape designed for bonding applications that demand long-lasting hold across a wide range of surfaces and conditions. Built on 3M High Performance Acrylic Adhesive 100MP, it delivers exceptional shear and peel strength in a thin, transparent profile. The tape conforms readily to irregular surfaces and is resistant to chemicals, UV exposure, and solvents. It is suited for use in manufacturing, assembly, signage, and other industrial or commercial environments where a clean, permanent bond is required without adding visible bulk.

This adhesive transfer tape is engineered for both indoor and outdoor applications. Its thin, conformable construction makes it well-suited for die-cutting and high-volume production runs. A 58 unprinted polycoated kraft paper liner provides moisture stability and supports clean, precise die-cutting operations. The tape performs reliably across a broad temperature range, with a short-term temperature tolerance of up to 500 degrees F and an operating temperature tolerance of up to 300 degrees F, making it appropriate for environments subject to heat cycling or elevated ambient temperatures.

Key Features

• 10 mil thickness with high-strength acrylic adhesive for a thin, strong bond
• Short-term temperature tolerance up to 500 degrees F (260 degrees C)
• Operating temperature tolerance up to 300 degrees F (149 degrees C)
• Resistant to chemicals, UV, and solvents for durable outdoor and industrial use
• Polycoated kraft paper liner supports moisture stability and clean die-cutting
• Transparent construction leaves no visible tape line after application

Compatibility

Designed as a general-purpose adhesive transfer tape suitable for bonding a wide variety of substrates in indoor and outdoor industrial, commercial, and assembly applications.

Installation Notes

Surface preparation is critical for maximum bond strength — clean and dry all substrates before application. Apply firm, even pressure across the full tape surface to ensure full adhesive contact. When die-cutting, use the liner as a handling aid and remove it only at the point of application. Always follow applicable facility safety guidelines when working with adhesive materials in production environments.

Technical Specifications

• Adhesive Type: Acrylic (High Performance 100MP)
• Thickness: 10 mil (0.26 mm)
• Width: 1.5 inches
• Liner: 58 Unprinted Polycoated Kraft Paper
• Short-Term Temperature Tolerance: 500 degrees F (260 degrees C)
• Operating Temperature Tolerance: 300 degrees F (149 degrees C)
• Finish: Transparent
• Unit of Measure: Roll
• Package Weight: 3.33 pounds
• Package Length: 8.3 inches
• Package Width: 8.3 inches
• Package Height: 11.6 inches
• UPC: 00021200404962

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123828
