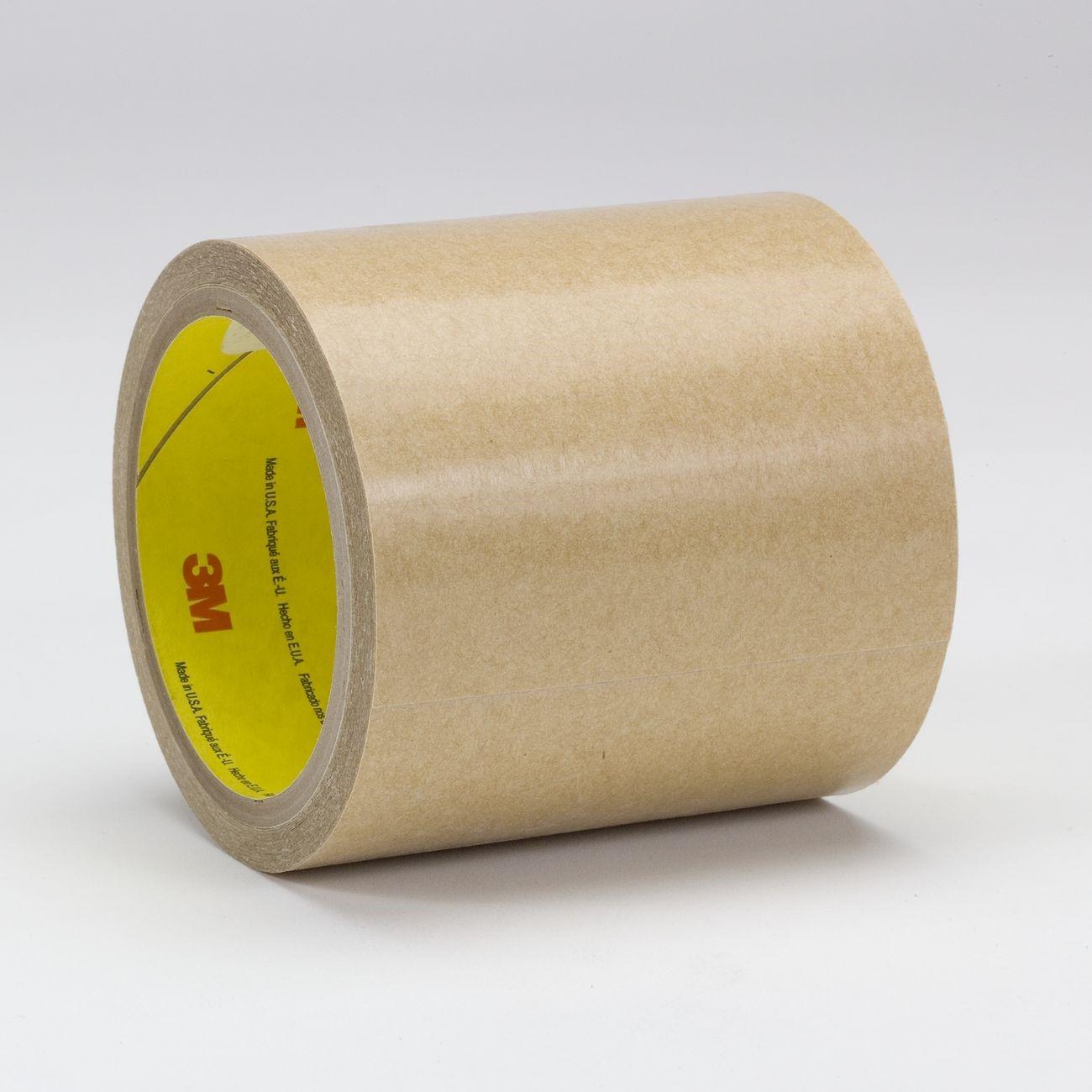

3M 7000123566 Adhesive Transfer Tape 48 in X 180 Yd

Product Description

The 3M 7000123566 is an adhesive transfer tape built around 3M Adhesive 300, a high-strength acrylic formulation designed to bond reliably to both high surface energy (HSE) and low surface energy (LSE) substrates, including textured materials and foams. The adhesive layer is 5.0 mil thick and is carried on an 83-lb. polycoated kraft paper liner that is 6.2 mil thick. This combination delivers high initial tack and a thin caliper profile, making the tape well-suited for assembly and fabrication work where a low-profile bond line is required. The roll measures 48 inches wide by 180 yards long and ships at 119.77 pounds.

This tape is used in industrial and commercial assembly applications where a clean, permanent adhesive transfer is needed without adding bulk. Common end uses include appliance manufacturing, consumer electronics assembly, automotive interior trim bonding, and general fabrication involving mixed substrates. The 83-lb. liner allows for controlled, flat lay-down during application, which is especially useful in high-speed or precision lamination scenarios. Installers and assemblers working with LSE plastics, foams, or textured panels will find this tape a direct fit.

Key Features

• 3M Adhesive 300 formulation bonds to LSE plastics, foams, and textured surfaces
• 5.0 mil adhesive thickness delivers high initial tack with a thin caliper profile
• 83-lb. polycoated kraft paper liner ensures flat lay and clean handling
• 6.2 mil liner thickness supports precise transfer during application
• Wide 48-inch format suits large-surface lamination and fabrication work
• Suitable for appliance, electronics, and automotive assembly environments

Compatibility

Designed for bonding applications involving HSE and LSE substrates, including foams, textured plastics, and smooth surfaces common in appliance, electronics, and automotive fabrication.

Installation Notes

Application should be performed by personnel familiar with adhesive transfer tape techniques. Surfaces must be clean, dry, and free of oils or contaminants before applying the tape. Firm, even pressure applied across the full bond area after transfer improves adhesion. Remove the liner carefully at a consistent angle to prevent distortion of the adhesive layer during transfer.

Technical Specifications

• Adhesive Type: 3M Adhesive 300 acrylic
• Adhesive Thickness: 5.0 mil
• Liner: 83-lb. polycoated kraft paper, 6.2 mil
• Roll Width: 48 inches
• Roll Length: 180 yards
• Color: Transparent
• Unit of Measure: Roll
• Package Weight: 119.77 pounds
• Package Length: 49.5 inches
• Package Width: 11.31 inches
• Package Height: 11.31 inches
• UPC: 021200255854

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123566
