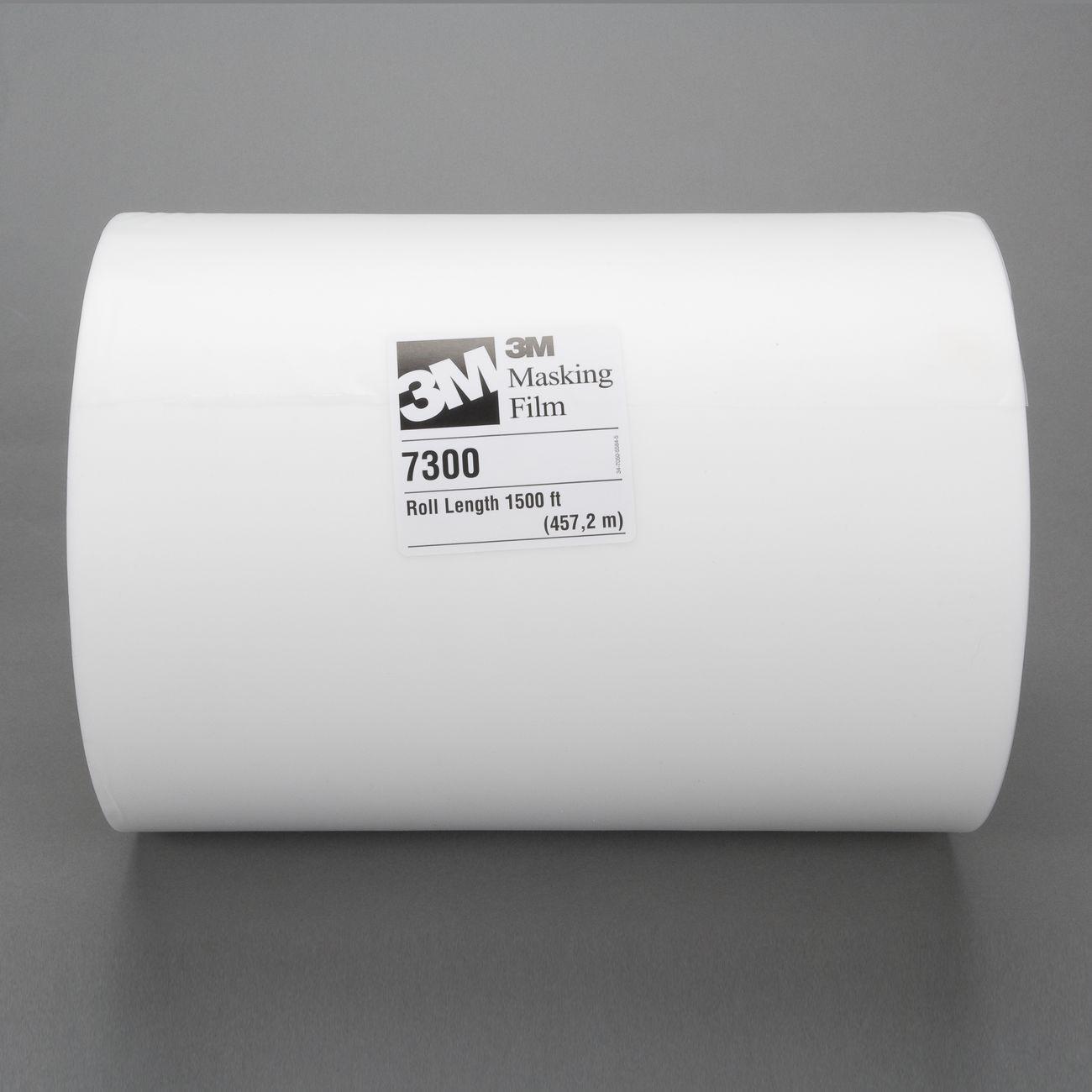

3M 7000123524 Paint Masking Film 12in X 1500ft 3.4 Mil

Product Description

The 3M 7000123524 is a high temperature paint masking film designed for gross masking applications in automotive and fleet refinishing environments. Sold as a 12-inch-wide by 1500-foot roll at 3.4 mil thickness, this translucent film provides a soft, flexible construction that drapes and conforms readily to curved body panels, fascia, and trim areas. It protects against solvent bleed-through and paint migration more effectively than conventional masking paper, and it eliminates fiber contamination that paper products can introduce into a finish coat. Licensed HVAC techs, body shop painters, and OEM assembly line operators are the primary installers and users of this product.

This masking film is suited for OEM two-tone paint lines, blackout masking, and collision repair painting on automobiles, buses, trucks, and plastic fascia components. The film is compatible with standard apron taper dispensers, allowing masking tape and film to be applied simultaneously in a single pass. Most solvent-based and waterborne paints bond well to the film surface, and masking tapes achieve strong adhesion to it, supporting clean tape-to-film transitions without lifting or flagging during cure cycles.

Key Features

• 3.4 mil thickness provides durable protection against solvent bleed-through and paint migration
• Translucent film allows visual confirmation of masked areas without removal
• Soft, flexible construction conforms to curved panels, fascia, and irregular body contours
• Non-fibrous material eliminates contamination risk associated with paper masking products
• Compatible with apron taper dispensers for simultaneous tape-and-film application
• Most solvent-based and waterborne paints and masking tapes adhere directly to the film surface

Compatibility

Designed for use in OEM and collision repair paint masking applications on automobiles, buses, trucks, and plastic fascia components. Compatible with standard apron taper dispensing equipment used in automotive refinishing environments.

Installation Notes

This product is applied by body shop technicians and OEM paint line operators as part of a standard masking procedure. Ensure all surfaces to be masked are clean and dry before application. When using with an apron taper, confirm the dispenser is set to the correct film width to avoid misalignment. Remove masking film promptly after the final cure cycle per the coating manufacturer's guidelines to prevent edge lifting or paint film damage.

Technical Specifications

• Film Thickness: 3.4 mil
• Roll Width: 12 inches
• Roll Length: 1500 feet
• Film Appearance: Translucent
• Unit of Measure: Roll
• Minimum Order Quantity: 3
• Weight: 14.92 pounds
• UPC: 00021200228353

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123524
