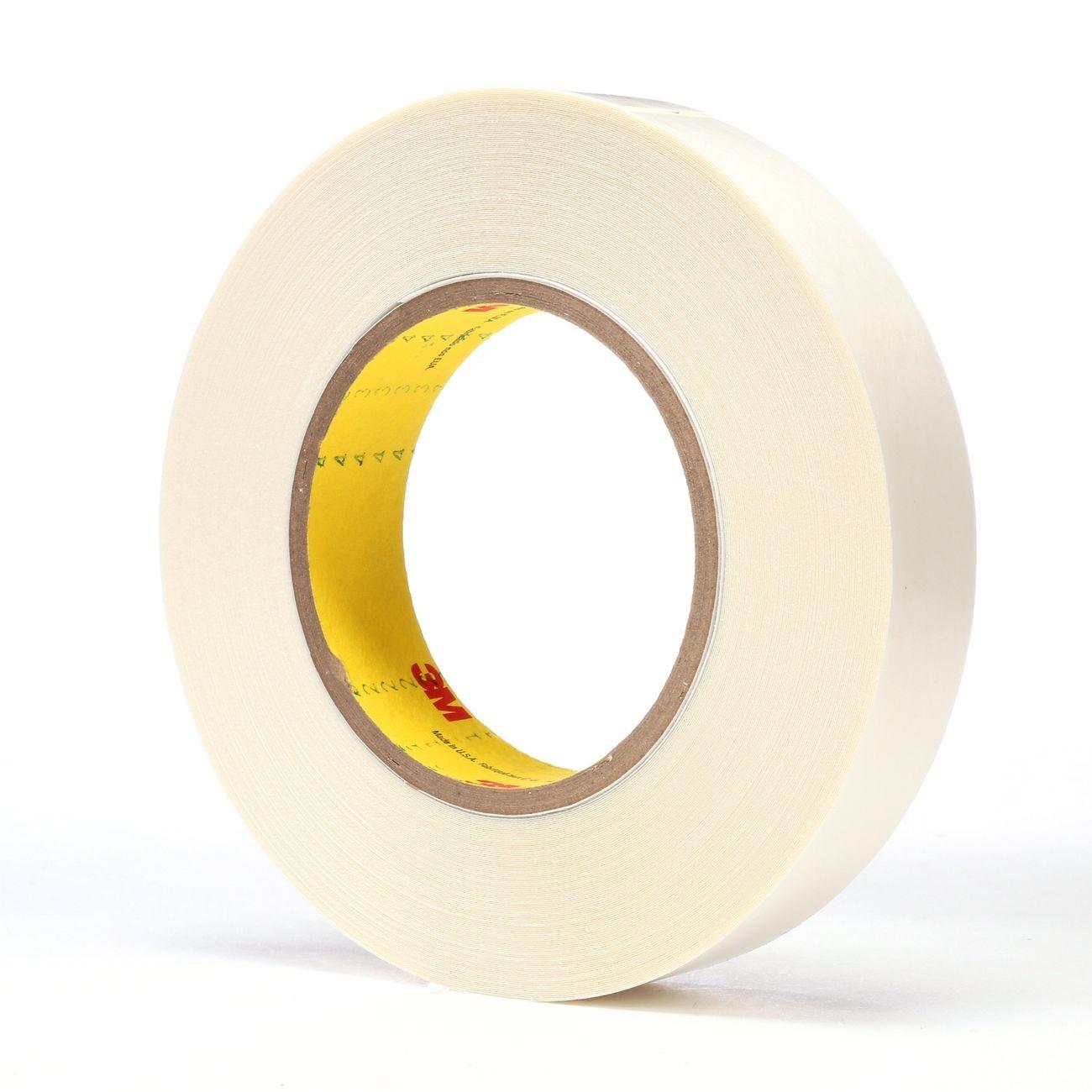

3M 7000123506 Double Coated Tape White 1 in 36 Yd 9 Mil

Product Description

The 3M 7000123506 is a 9 mil double coated tape built on a high density polyethylene carrier with rubber adhesive 760 bonded to both sides and a 62 lb white densified kraft liner. It measures 1 inch wide by 36 yards long, delivering a substantial run of tape per roll. The rubber adhesive provides high initial adhesion and excellent quick stick, making this tape a reliable choice for bonding applications where fast grab and consistent hold are required. It is designed for indoor and room temperature use and is suitable for mounting, splicing, or laminating tasks handled by trade professionals and fabricators.

This tape is suited for indoor applications where bonding to low surface energy substrates is necessary. The double coated construction allows it to adhere two surfaces together cleanly, making it useful in assembly, panel mounting, signage, and light fabrication work. It ships on metal cores and is available by the roll. Applications are limited to room temperature environments; it is not rated for elevated heat or outdoor exposure.

Key Features

• 9 mil total thickness with a high density polyethylene carrier for dimensional stability
• Rubber adhesive 760 on both sides delivers high initial adhesion and quick stick
• Good adhesion to low surface energy substrates
• White 62 lb densified kraft liner for clean, controlled unwind
• Rated for indoor and room temperature applications only
• Wound on metal cores for compatibility with standard tape dispensing equipment

Compatibility

Designed as an OEM-style double coated tape for indoor bonding applications requiring a polyethylene carrier and rubber adhesive system on low to medium surface energy substrates.

Installation Notes

Surface preparation is critical before application — clean bonding surfaces of dust, oil, and moisture for maximum adhesion. Apply firm, even pressure across the tape after positioning to ensure full contact between the adhesive and substrate. This tape is rated for indoor and room temperature use only; do not apply in environments with elevated heat, humidity, or direct outdoor exposure. Dispensing equipment should be compatible with 1 inch wide rolls on metal cores.

Technical Specifications

• Total Thickness: 9 mil
• Width: 1 inch
• Length: 36 yd
• Carrier Material: High Density Polyethylene
• Adhesive Type: Synthetic Rubber (760)
• Liner: 62 lb White Densified Kraft
• Color: White
• Unit of Measure: Roll
• Weight: 0.69 pounds
• UPC: 00021200658716

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123506
