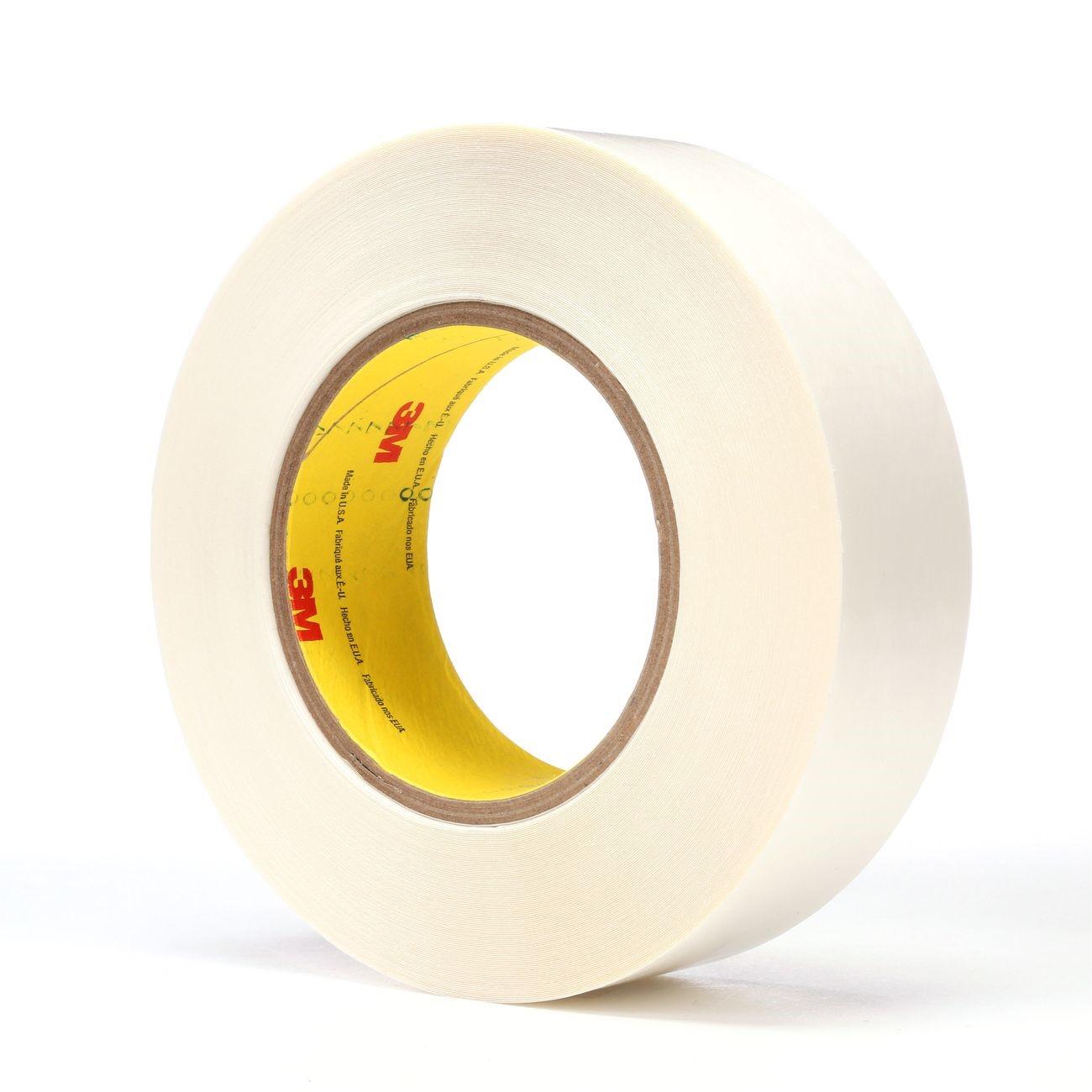

3M 7000123505 Double Coated Tape 1.5 in 36 Yd 9 Mil

Product Description

The 3M 7000123505 is a 9 mil double coated tape built on a high density polyethylene carrier with synthetic rubber adhesive 760 bonded to both sides, finished with a 62 lb white densified kraft liner. It is designed for bonding applications where high initial adhesion and quick stick are critical. The polyethylene carrier provides flexibility and conformability, while the rubber adhesive system delivers reliable grab on a wide range of surfaces including low surface energy substrates. This tape is intended for indoor use at room temperature. It is typically handled by assembly technicians, HVAC fabricators, and general trade installers requiring a dependable two-sided bonding solution.

This double coated tape is suited for indoor bonding and mounting applications in light manufacturing, HVAC duct fabrication, foam attachment, and general assembly work. The white densified kraft liner releases cleanly to allow precise placement during installation. It is appropriate for room temperature environments and is supplied on metal cores. Applications where quick, strong initial tack is needed without mechanical fasteners are a common use case for this tape.

Key Features

• 9 mil total thickness with high density polyethylene carrier for flexibility and durability
• Synthetic rubber adhesive 760 on both sides for high initial adhesion and excellent quick stick
• Good adhesion to low surface energy substrates
• 62 lb white densified kraft liner for clean, controlled release
• Designed for indoor, room temperature applications
• Supplied on metal cores

Compatibility

Designed as an OEM-style double coated tape for indoor bonding and mounting applications in general trade, HVAC, and light assembly environments.

Installation Notes

Surface preparation is critical before applying double coated tape. Clean and dry the bonding surface to remove dust, oil, and moisture before removing the liner. Apply firm, even pressure across the full tape width to ensure full contact with both substrates. This product is intended for indoor use only and should not be used in high-temperature or outdoor-exposure applications.

Technical Specifications

• Tape Thickness: 9 mil
• Width: 1.5 inches
• Length: 36 yd
• Carrier Material: High density polyethylene
• Adhesive Type: Synthetic rubber 760, double coated
• Liner: 62 lb white densified kraft
• Unit of Measure: Roll
• Weight: 1.03 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123505
