3M 7000123471 Electroplating Tape 470 Tan 3in X 36yd

Product Description

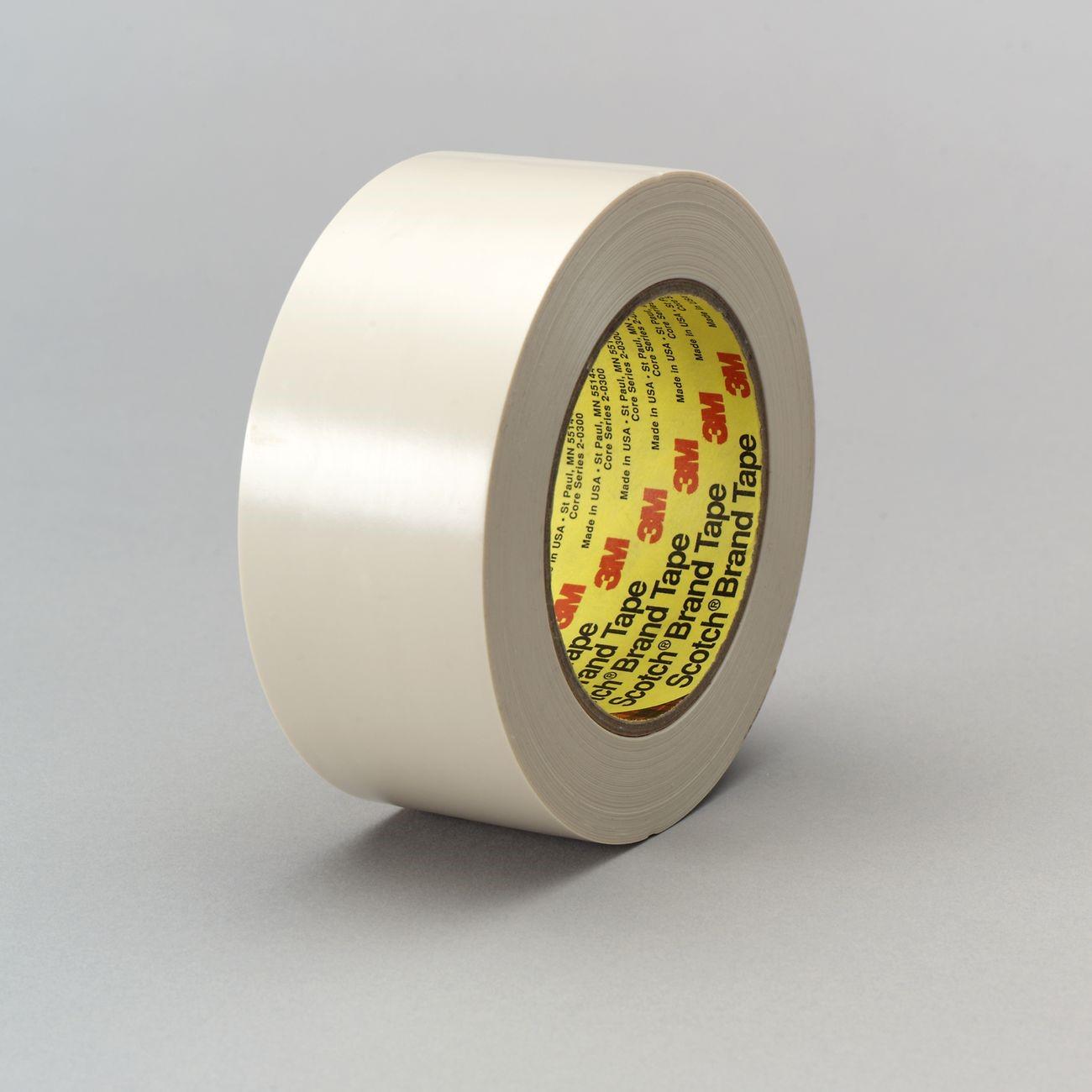

The 3M 7000123471 is an electroplating masking tape designed for use in industrial plating operations. Known as Electroplating Tape 470 in tan, it features a vinyl backing with a rubber-based adhesive and a total thickness of 7.1 mil. Each roll measures 3 inches wide by 36 yards long. The tape is formulated to resist most chemicals encountered in standard electroplating processes, making it a reliable masking solution for production and maintenance environments. It is installed by plating technicians and industrial maintenance personnel to protect surfaces during electrochemical finishing operations.

This tape is suited for a wide range of electroplating masking applications in both flat strip and overlapping configurations. It can be used to wrap irregular surfaces, patch existing masking, coat plating racks, and mask complex geometries that require conformable coverage. Both flat and cylindrical workpieces are common use cases. The tape performs in wet, chemical-rich environments typical of chrome, nickel, zinc, and copper plating lines in commercial and industrial facilities.

Key Features

• Vinyl backing with rubber adhesive provides flexibility and strong adhesion to irregular surfaces
• 7.1 mil total thickness offers durable protection against plating bath chemicals
• Resistant to most chemicals used in standard electroplating processes
• Suitable for flat strip masking, overlapping masks, rack coating, and surface wrapping
• Tan color aids visual identification during masking inspection
• Sold by the roll at 3 inches wide by 36 yards per roll

Compatibility

Designed as an OEM-style masking solution for industrial electroplating operations requiring chemical-resistant tape for rack masking, surface wrapping, and bath-side applications.

Installation Notes

Applied by plating technicians or industrial maintenance personnel prior to immersion in the plating bath. Clean and dry all surfaces thoroughly before applying the tape to ensure proper adhesion. Remove the tape promptly after the plating cycle is complete to prevent adhesive transfer or difficult removal. Follow facility chemical handling and PPE protocols when working in the plating area.

Technical Specifications

• Tape Series: Electroplating Tape 470
• Color: Tan
• Backing Material: Vinyl
• Adhesive Type: Rubber
• Thickness: 7.1 mil
• Width: 3 inches
• Length: 36 yards
• Weight: 1.47 pounds
• Unit of Measure: Roll

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123471
