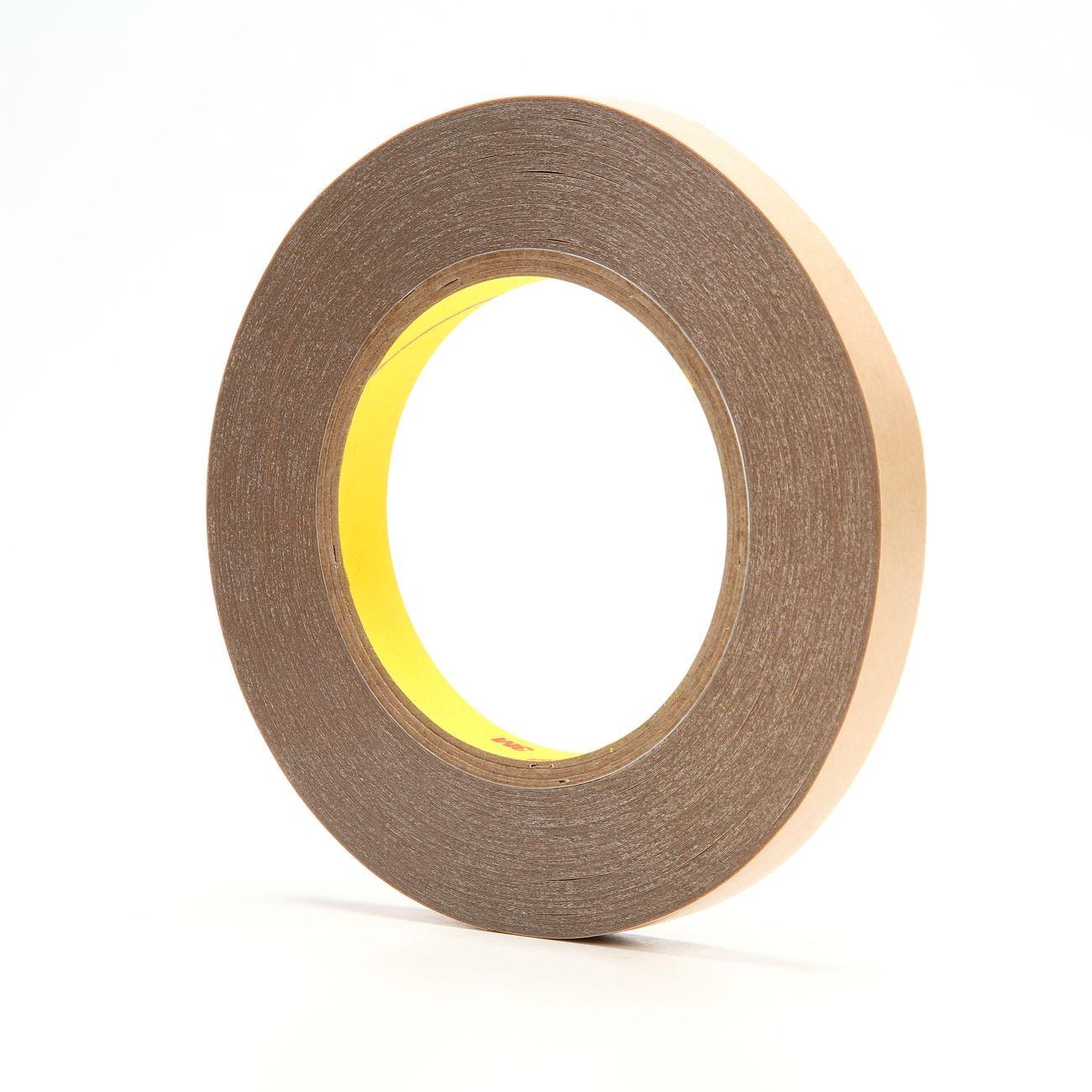

3M 7000123416 Double Coated Tape 0.5 in 36 Yd Acrylic

Product Description

The 3M 7000123416 is a 5 mil double coated tape built on a 1.0 mil clear polyester (PET) carrier film with high performance acrylic adhesive on both sides. It is 0.5 inches wide and 36 yards long, wound on a roll with a 4.5 mil unprinted polycoated kraft paper liner. The acrylic adhesive is formulated for strong bonding to low surface energy (LSE) substrates, including powder coated metals and most plastics. Short-term heat resistance reaches 350 degrees F. Fabricators, assemblers, and industrial maintenance technicians use this tape in applications where a thin, dimensionally stable carrier and reliable adhesion to difficult surfaces are required.

This tape is suited for industrial bonding, assembly, and fabrication operations in both light manufacturing and maintenance environments. Its clear PET carrier keeps the bond line nearly invisible, making it appropriate for applications where aesthetics matter alongside performance. The tape handles well during die cutting operations, and the unprinted polycoated kraft liner is designed to reduce edge burr when processed with hard tooling. It performs in elevated-temperature environments up to 350 degrees F, making it a practical choice for assemblies that see moderate heat exposure during operation or post-processing.

Key Features

• 5 mil total thickness with high performance acrylic adhesive on both faces
• 1.0 mil clear PET carrier film provides dimensional stability and supports clean die cutting
• Bonds to low surface energy substrates including powder coated surfaces and most plastics
• Short-term heat resistance up to 350 degrees F (177 degrees C)
• 4.5 mil unprinted polycoated kraft liner minimizes edge burr during hard tool die cutting
• Transparent construction keeps bond lines visually clean in finished assemblies

Compatibility

Designed for bonding to powder coated surfaces, most plastics, and other difficult or low surface energy substrates in industrial assembly and fabrication applications.

Installation Notes

Surface preparation is critical before application — clean bonding surfaces of oils, dust, and residue for maximum adhesion. Apply firm, even pressure across the tape to ensure full contact between the adhesive and the substrate. Remove the liner carefully to avoid stretching the thin carrier film. For die cut applications, verify tooling clearances with the liner included to take advantage of the liner edge-burr reduction properties.

Technical Specifications

• Total Tape Thickness: 5 mil
• Carrier Film: 1.0 mil clear polyester (PET)
• Liner: 4.5 mil unprinted polycoated kraft paper
• Width: 0.5 inches
• Length: 36 yards
• Adhesive Type: High performance acrylic, double coated
• Heat Resistance (Short-Term): 350 degrees F (177 degrees C)
• Color: Transparent
• Unit of Measure: Roll
• Weight: 0.29 pounds
• UPC: 00021200677953

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123416
