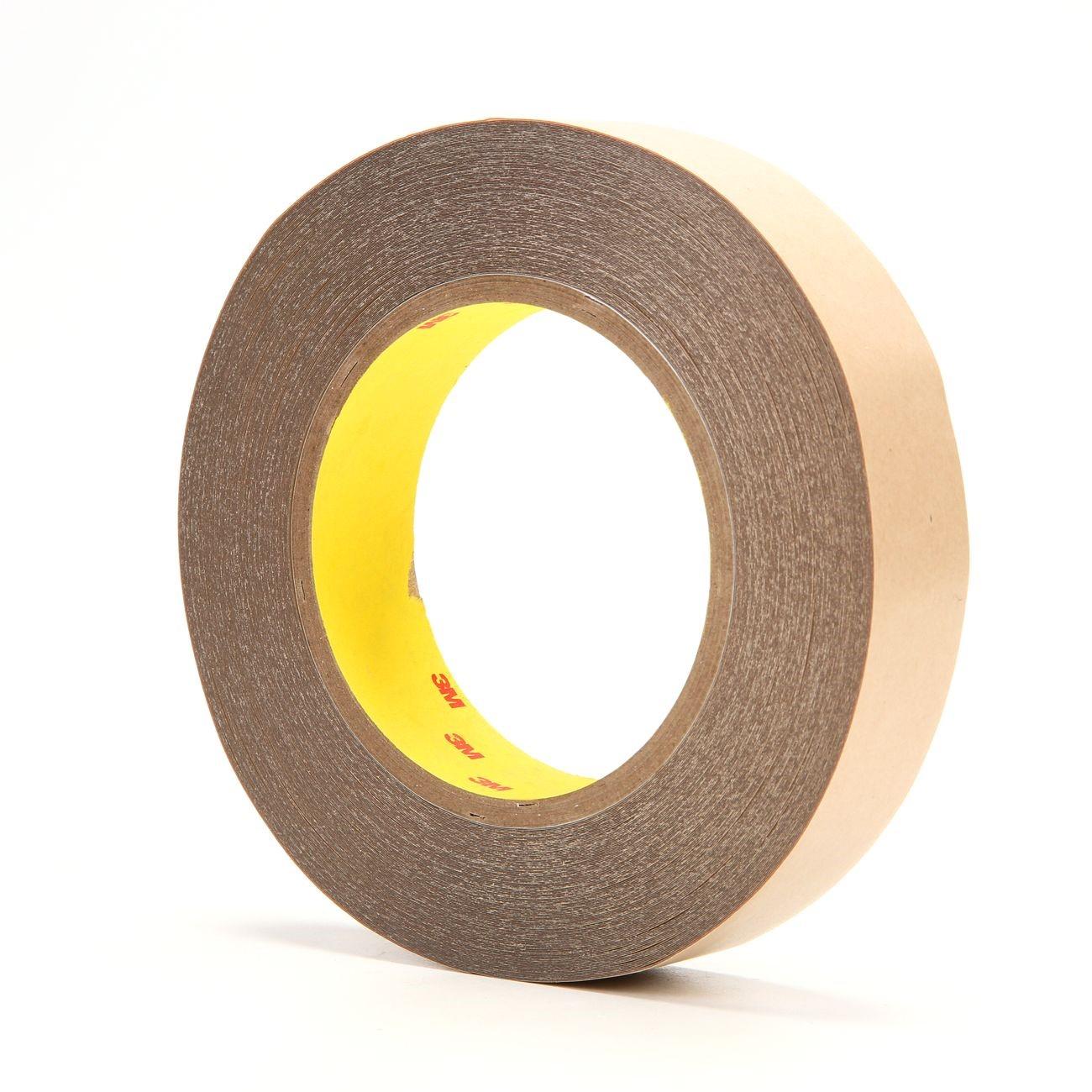

3M 7000123414 Double Coated Tape 1 in 36 Yd Roll

Product Description

The 3M 7000123414 is a 5 mil double coated tape built on a 1.0 mil clear polyester (PET) carrier film with a high-performance acrylic adhesive on both sides. A 4.5 mil unprinted polycoated kraft paper liner protects the second adhesive face until application. The acrylic adhesive system delivers strong holding force and short-term heat resistance up to 350 degrees F, making it suitable for bonding applications where standard tapes fail. The transparent construction allows for clean, low-visibility joints. Rolls are 1 inch wide and 36 yards long. Licensed HVAC, electrical, and industrial assembly technicians are the primary installers.

This tape is designed for bonding to low surface energy (LSE) substrates, powder-coated surfaces, and difficult-to-adhere plastics where conventional pressure-sensitive tapes do not achieve adequate adhesion. Common applications include assembly bonding, part attachment, and label mounting in manufacturing, HVAC equipment fabrication, and industrial settings. The thin PET carrier provides dimensional stability during die-cutting operations, and the unprinted polycoated kraft liner minimizes edge burr when hard-tool die cutting is used in production environments.

Key Features

• 5 mil total construction with a 1.0 mil clear PET carrier film for dimensional stability
• High-performance acrylic adhesive bonds to LSE substrates, powder-coated surfaces, and most plastics
• Short-term heat resistance up to 350 degrees F (177 degrees C)
• 4.5 mil unprinted polycoated kraft liner reduces edge burr during hard-tool die cutting
• Transparent tape body for low-visibility bonding joints
• 1 inch wide by 36 yard roll format for easy hand and machine application

Compatibility

Designed for bonding applications on low surface energy plastics, powder-coated metals, and other difficult surfaces in industrial, manufacturing, and HVAC equipment assembly environments.

Installation Notes

Surface preparation is critical — clean and dry the bonding surface before application to achieve full adhesive contact. Apply firm pressure across the entire bond area to ensure proper adhesive transfer. When die cutting in production, use the liner side against the tool to take advantage of the polycoated kraft liner's burr-reduction properties. Remove and replace tape only before the adhesive has fully set, as repositioning after dwell time will reduce bond strength.

Technical Specifications

• Tape Thickness: 5 mil
• Carrier Film: 1.0 mil clear polyester (PET)
• Liner: 4.5 mil unprinted polycoated kraft paper
• Adhesive Type: High-performance acrylic, double coated
• Heat Resistance: Up to 350 degrees F (177 degrees C)
• Width: 1 inch
• Length: 36 yards per roll
• Color: Transparent
• Package Dimensions: 11.38 x 11.38 x 10.25 inches
• Weight: 0.55 pounds
• UPC: 00021200677960

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123414
