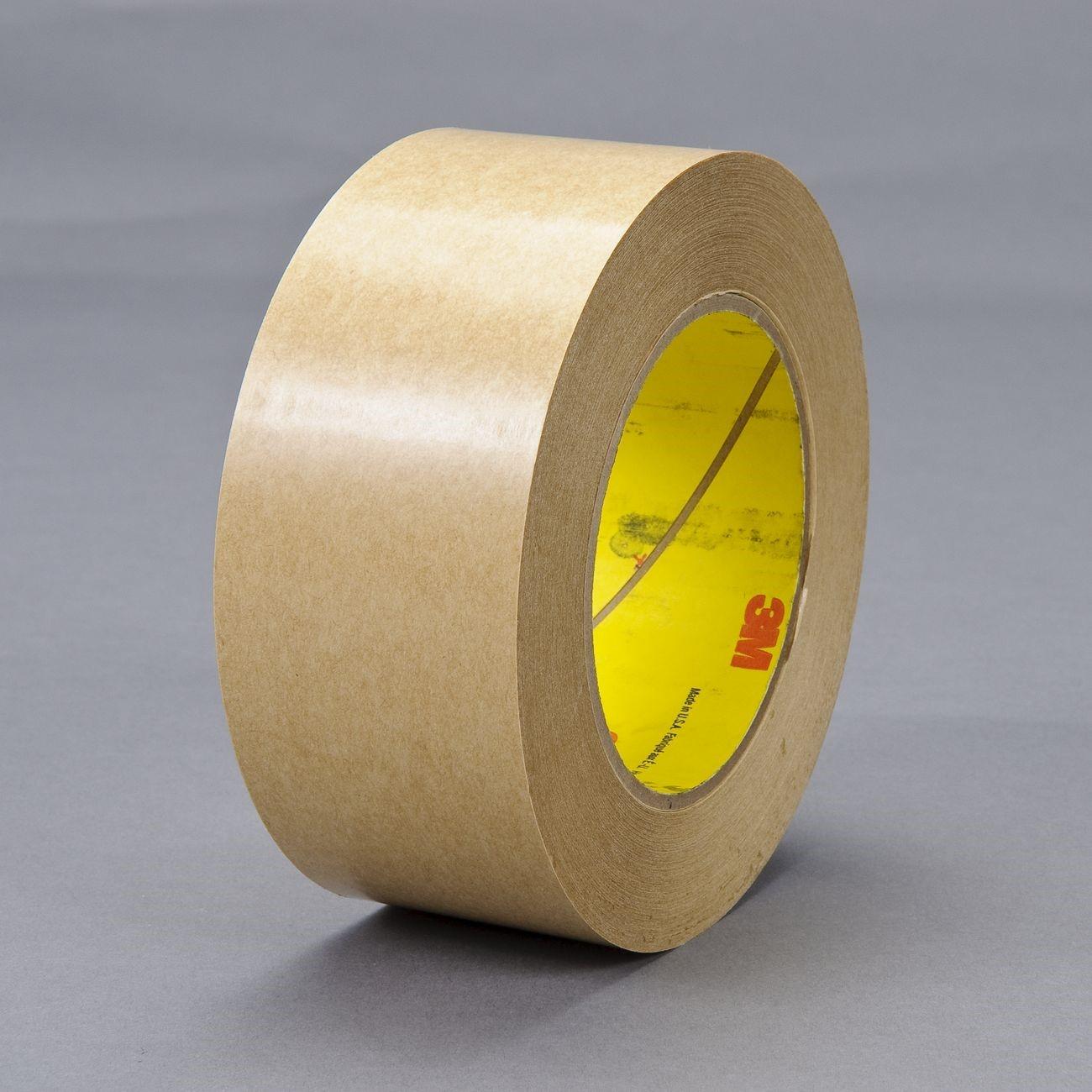

3M 7000123386 Adhesive Transfer Tape 0.125 in 60 Yd

Product Description

The 3M 7000123386 is a high-strength adhesive transfer tape designed for bonding a wide range of substrates including metals, glass, wood, paper, paint, and many plastics. The tape is built around an aggressive acrylic adhesive (series 400) that bonds on contact and maintains strong adhesion at temperatures up to 250 degrees F. It ships in a single roll measuring 0.125 inches wide and 60 yards long. The unbleached densified kraft liner supports both manual and automated hand applications with consistent, easy release. Print shops, fabricators, and assembly technicians commonly specify this tape where fast, reliable bonding without liquid adhesives is required.

This tape is suited for commercial print environments and light industrial assembly applications. It performs well in high-speed flying splices and zero-speed splices on most grades of paper, making it a practical choice for web printing and converting operations. Its transparent profile keeps bond lines clean and unobtrusive on finished assemblies. The contact-bond acrylic adhesive eliminates cure time, allowing immediate handling after application.

Key Features

• Aggressive acrylic 400 adhesive bonds on contact with no cure time required
• Bonds to metals, glass, wood, paper, paint, and many plastics
• Maintains strong bond integrity at temperatures up to 250 degrees F
• Unbleached densified kraft liner supports manual and hand-held dispenser applications
• Transparent tape profile for clean, low-visibility bond lines
• Suitable for high-speed flying splices and zero-speed splices in commercial print

Compatibility

Designed for bonding applications involving metal, glass, wood, paper, paint, and many plastics. Well suited for commercial print splicing operations on most grades of paper.

Installation Notes

Surface preparation is critical for maximum bond strength — substrates should be clean, dry, and free of oils or loose particles before applying the tape. Apply firm, even pressure across the bonded surface using a roller or squeegee to ensure full contact between the adhesive and substrate. For splice applications in powered equipment, follow the equipment manufacturer's lockout and shutdown procedures before threading or staging tape. Store unused rolls in a cool, dry environment away from direct sunlight to preserve adhesive performance.

Technical Specifications

• Width: 0.125 inches
• Length: 60 yards
• Unit of Measure: Roll
• Adhesive Type: Acrylic 400
• Maximum Service Temperature: 250 degrees F
• Tape Color: Transparent
• Liner Type: Unbleached densified kraft
• Weight: 0.07 pounds
• UPC: 00021200672804

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123386
